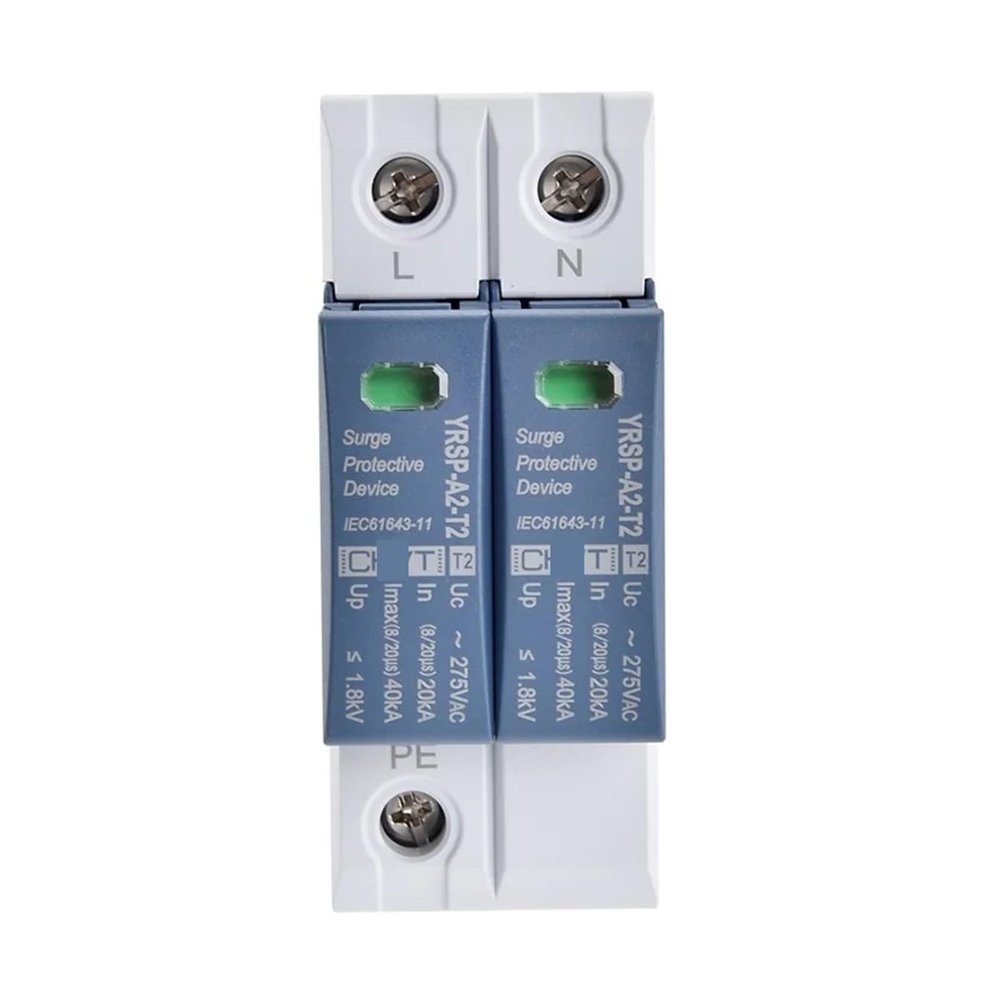

EQBVZZRD Arrester Device Surge Protector SPD AC 2P 4P 275V 420V Lightning Protection Surge Arrester Surge Protective Device (Size : 2P 20-40KA)

Description

• Our surge protection breaker device is designed to safeguard your electronics from power surges and lightning strikes. you can trust our product to keep your devices safe.
• Our photovoltaic lightning protector is perfect for protecting a wide range of electronic equipment, instruments, and communication lines. Whether you're a homeowner or a business owner, our product is the perfect solution for your surge protection needs.
• Our air circuit breaker arrester is manufactured to the highest standards, ensuring long-lasting performance and reliability. You won't have to worry about replacing your surge protector anytime soon.
• Our low voltage arrester product features a modular design that makes maintenance and modification a breeze. You won't have to spend hours tinkering with your surge protector to keep it in top condition.
• Our lightning protection circuit breaker uses high-quality red copper accessories to ensure reliable conductivity. You can trust our product to provide the best possible protection for your electronics.

Related Products:
Warm Reminder:
The width of 20-40KA and 30-60KA type is 18mm/pole.
The width of 40-80KA type or bigger is 27mm/pole.
(40-80KA core only can be used for 40-80KA base, please be careful of this. If you have any question, please must contact with us!)
Surge Protector SPD AC 2P 275V Lightning Protection Surge Arrester Surge Protective Device
lightning Arrester Technical Date:
Technical Parameters
Pole
2P
4P
Rated Operating Voltage Un(V~)
275V
420V
MaximumContinuousOperatingVoltageUc(V~)
275VAC
420VAC
Voltage protection Level Up(V~)kV
1.8
Nominal Discharge Current ln s kA
20
Maximum Discharge Current lmax s kA
40
Response Time (ns)
<;25
Test Standard
IEC61643.1, GB18802.1
Operating Environment(centigrade)
-40 ~+85
Max Connection Line
35mm2hardwire/35mm2strandwirecopperline
Recommended Connection Line
16mm2hardwire/25mm2strandwirecopperline
Installation
Standard Rail 35mm
Material of Outer Covering
Burning-proof Nylon
