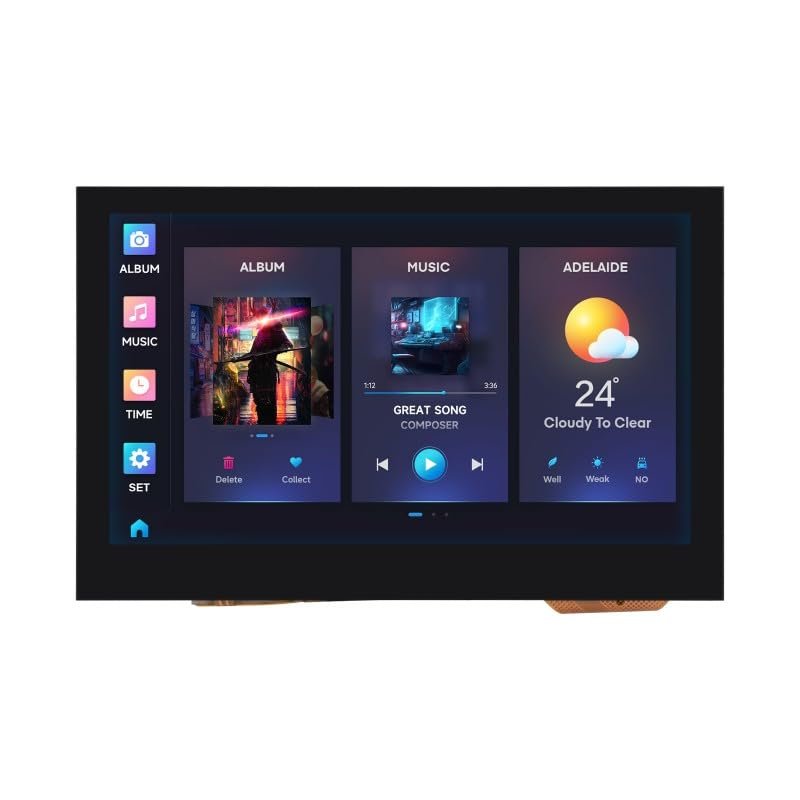

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800480 Pixels, Integrates RGB Interface LCD with 5-Point Touch, 32-Bit LX7 Dual-Core Processor (ESP32-S3-Touch-LCD-4.3)

Description

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
• Onboard 4.3inch capacitive touch display, 800480 resolution, 65K color. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
• Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Features
ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
Onboard 4.3inch capacitive touch display, 800480 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Supports Multiple Peripherals. Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces

Applications
1. Human-machine Interface
2. LVGL GUI Development

PACKAGE CONTENT
1. ESP32-S3-Touch-LCD-4.3 x1
2. HY2.0 2P to 2PIN male cable 10cm 2
3. HY2.0 2P to 3PIN male cable 10cm 1
4. HY2.0 2P to 4PIN male cable 10cm 1
5. Standoff pack 1
