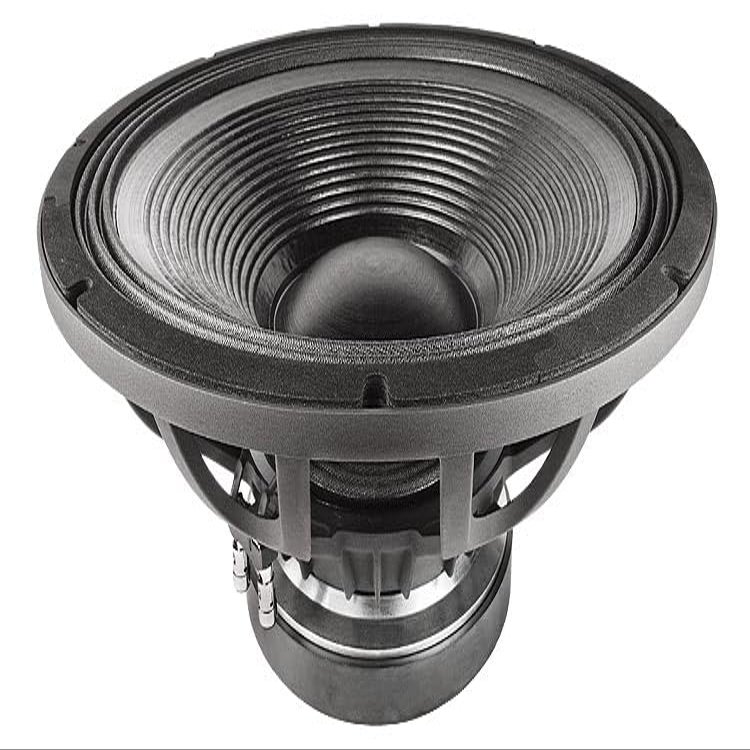

FAITAL PRO 18HP1030-8 18-inch Woofer Low-Frequency Loudspeaker 8-Ohms Subwoofer Speaker 1200-Watt Rms 2400-Watt Max Professional Audio Applications

Description

• "NOMINAL SPECIFICATIONS || Nominal Diameter : 460 mm (18 in) || Overall Diameter : 460 mm (18.11 in) || Bolt Circle Diameter : 440 mm (17.32 in) || Baffle Cutout Diameter : 421 mm (16.57 in) || Depth : 208.5 mm (8.20 in) || Flange and Gasket Thickness : 13.7 mm (0.54 in) || Net Weight : 12.1 kg (26.7 lb) || Shipping Box (Single Carton Box) : 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) || Shipping Weight : 13.5 kg (29.8 lb) || "
• "TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.5 Ohm || AES Power Handling (1) : 1200 W || Maximum Power Handling (2) : 2400 W || Sensitivity (1W/1m) : 98 dB || Frequency Range : 351600 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Cu || Former Material : Glass Fiber || "
• "TECHNICAL PARAMETERS || Winding Depth : 28.9 mm (1.14 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.1 T || Magnet : Ferrite Ring || Basket Material : Aluminum || Demodulation : Aluminum Ring || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 6.5 dm^3 (0.230 ft^3) || Spider Profile : 2x non-adjacent symmetrical constant height waves || "
• "THIELE AND SMALL PARAMETERS || Fs : 35 Hz || Re : 5 Ohm || Qes : 0.43 || Qms : 11.6 || Qts : 0.41 || Vas : 185.5 dm^3 (6.55 ft^3) || Sd : 1212 cm^2 (187.86 in^2) || Xmax (4) : 12.45 mm || Xdamage (5) : 23.1 mm || Mms : 228.6 g || Bl : 24.3 N/A || Le : 1.48 mH || Mmd : 180.9 g || Cms : 0.09 mm/N || Rms : 4.3 kg/s || Eta Zero : 1.81 % || EBP : 81 Hz || "
• "Brand : FAITAL PRO || Model Number : 18HP1030-8 | 18HP1030 || UPC : 810130951260 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 4604074 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage"

The FAITAL PRO 18HP1030-8 is a 18-inch Woofer high-power, low-frequency loudspeaker designed for professional audio applications. This subwoofer is known for its robust construction and ability to handle high power levels, making it suitable for a variety of professional audio settings. || NOMINAL SPECIFICATIONS || Nominal Diameter : 460 mm (18 in) || Overall Diameter : 460 mm (18.11 in) || Bolt Circle Diameter : 440 mm (17.32 in) || Baffle Cutout Diameter : 421 mm (16.57 in) || Depth : 208.5 mm (8.20 in) || Flange and Gasket Thickness : 13.7 mm (0.54 in) || Net Weight : 12.1 kg (26.7 lb) || Shipping Box (Single Carton Box) : 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) || Shipping Weight : 13.5 kg (29.8 lb) || || TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.5 Ohm || AES Power Handling (1) : 1200 W || Maximum Power Handling (2) : 2400 W || Sensitivity (1W/1m) : 98 dB || Frequency Range : 351600 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Cu || Former Material : Glass Fiber || || TECHNICAL PARAMETERS || Winding Depth : 28.9 mm (1.14 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.1 T || Magnet : Ferrite Ring || Basket Material : Aluminum || Demodulation : Aluminum Ring || Cone Surround (3) : Triple Roll || NET Air Volume filled by Loudspeaker : 6.5 dm^3 (0.230 ft^3) || Spider Profile : 2x non-adjacent symmetrical constant height waves || || THIELE AND SMALL PARAMETERS || Fs : 35 Hz || Re : 5 Ohm || Qes : 0.43 || Qms : 11.6 || Qts : 0.41 || Vas : 185.5 dm^3 (6.55 ft^3) || Sd : 1212 cm^2 (187.86 in^2) || Xmax (4) : 12.45 mm || Xdamage (5) : 23.1 mm || Mms : 228.6 g || Bl : 24.3 N/A || Le : 1.48 mH || Mmd : 180.9 g || Cms : 0.09 mm/N || Rms : 4.3 kg/s || Eta Zero : 1.81 % || EBP : 81 Hz || || Brand : FAITAL PRO || Model Number : 18HP1030-8 | 18HP1030 || UPC : 810130951260 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 4604074 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage
