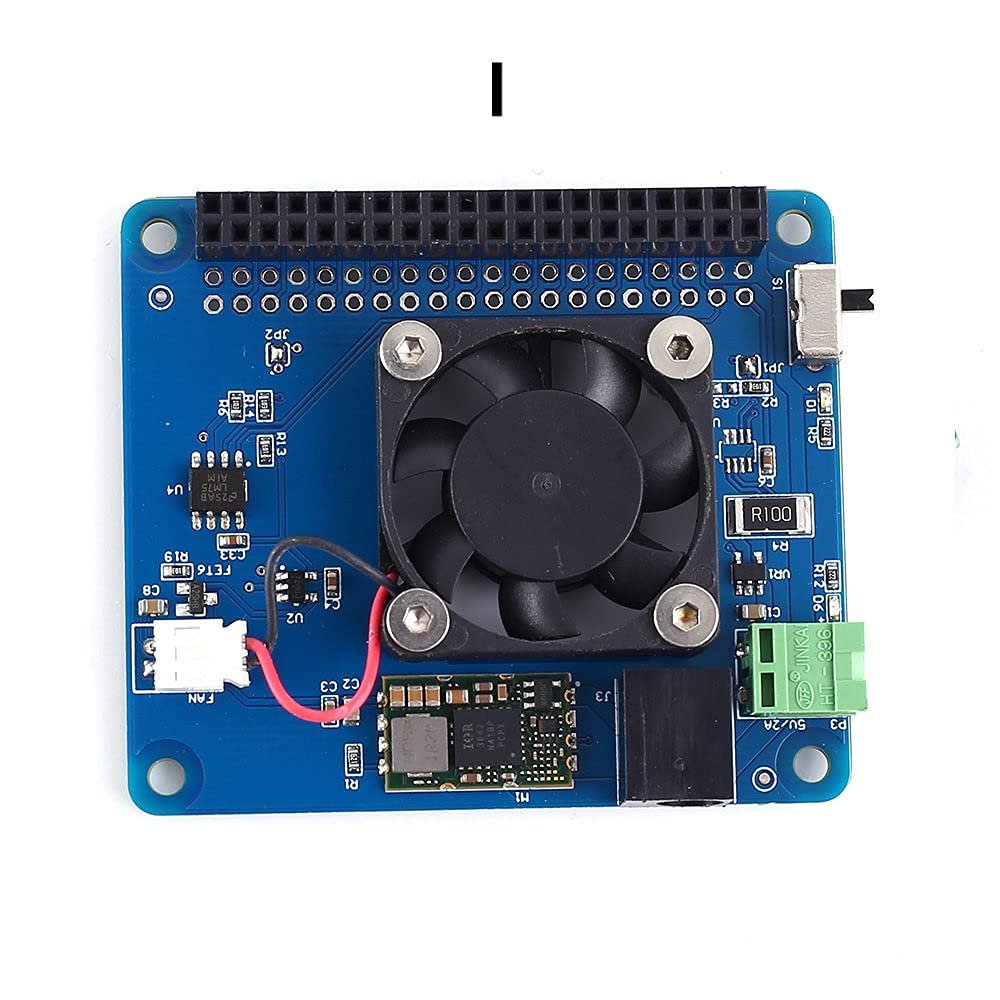

Fan Power Supply Breakout Board HAT POE for Raspberry Pi 3B+/3B/2B

Description

• Fan Power Supply Breakout Board HAT POE for Raspberry Pi 3B+/3B/2B

Fan Power Supply Breakout Board HAT POE for Raspberry Pi 3B+/3B/2B
1.
Descriptions:
It is a power fan board designed for Raspberry Pi B3+. It has intelligent fan control function which can start the fan when the CPU and ambient temperature exceed a certain temperature and turn off the fan when the temperature is lower than the set value reducing power consumption and prolonging the service life of the fan.
2.Feature:
1>.Support 2CH output
2>.Built-in temperature sensor
3>.Built-in smart fan
4>.Supply fan/volltage output programmable
5>.Standard HAT size
6>.Support Raspberry Pi 3B+/3B/2B/B+
3.Parameter:
1>.Work voltage:DC 6V-14V
2>.Input power interface:DC 5.5*2.1mm socket
3>.Output voltage OUT1: 5V 2A(Programmable control)
4>.Output voltage OUT2: 5V 2A~4A
5>.Fan:Programmable control
6>.Fan work voltage:5V
7>.Fan work current:150mA
8>.Fan rotating speed:10000RPM
9>.Fan noise:25dB
10>.Fan volume:3.1cfm
11>.Operating Temperature:-55~125
12>.Operating Humidity:5%~95%RH
13>.Module Size:65*56*12mm
14>.Fan Size:30*30*7.5mm
4.
Notes:
1>.Please don't input 5V voltage.
2>.Please don't provide voltage from Raspberry Pi.
3>.Recommended to use 12V power adapter.
4>.OUT2's maximum output current can reach to 4A if OUT1 has no output.
5>.OUT2 is used to connect to Raspberry Pi.
5.Application:
1>.Robot
2>.Mechanical arm
3>.Smart car
4>.Intelligent control
5>.Steering gear control
6.Package:
1>.1pcs Fan Power Supply Breakout Board
