Fanless Router Q192G4U-S01 Intel Celeron N2920,1.86Ghz 7.5W (8Gb Ddr3 Ram 128Gb Ssd) -4 Intel Gigabit LAN,Used As A Router/Firewall/Proxy

Description

• CPU:Intel Celeron N2920 Processors,2M Cache,1.86GHZ up to 2.00 GHz,Quad Core, DC 12V ,Fanless,Low Power,Aluminum alloy Shell
• 8G ram 128G SSD NO WIFI
• 1*VGA, 4 x Intel I211-AT- 10/100/1000 Controller , 3*USB2.0, 1*USB3.0
• It supports Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, ect. But it will come with the windows 7(unactivated) for test. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter BIOS.
• used as a Router/ firewall/ Proxy / wifi access point,it supports Watch Dog,Wake on Lan,Restore AC power loss,Kensington Lock,VESA Mounting Bracket,Fanless Design,Automatically boot Jumper

Fanless 4 Lan Mini Pc Q192G4U-S01 Specification:
Dimension:134*126*38mm(L*H*W)
Weight:1.1Kg
Power Consumption:TDP 7.5W
Onboard CPU:Intel Celeron N2920 Processor,2M Cache, 1.86GHz,up to 2.00 GHz
Memory:SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot ,Max. Support up to 8GB Memory
Hard Disk:support Msata SSD
Onboard VGA:Intel HD Graphics
Onboard LAN:4 x Intel I211-AT- 10/100/1000 Controller

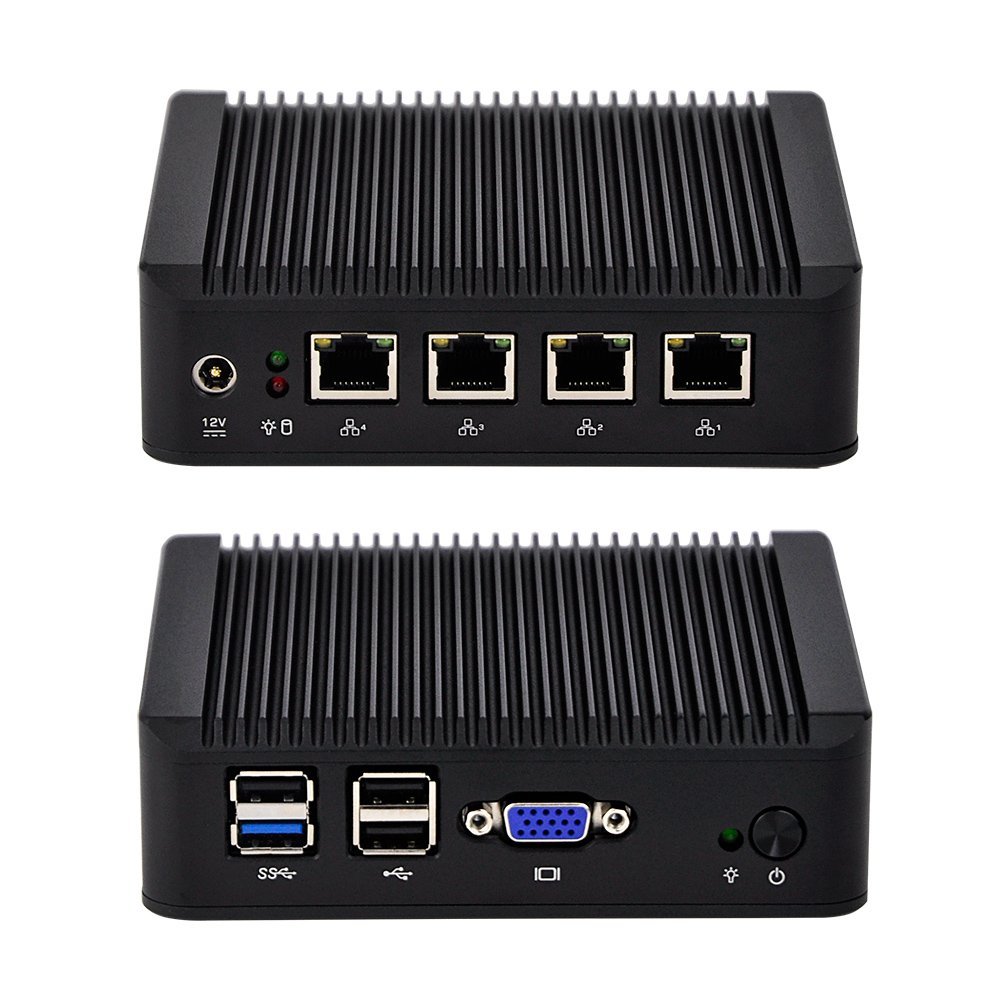

Front-Panel Connectors
power on/off button
1 x USB 3.0 Ports
3 x USB 2.0 Ports
1 x VGA Connector

Internal Connectors
1 x Minipcie port (for mSATA SSD)
1 x Minipcie port (for WIFI/BLUETOOT Module)
1 x DDR3L SO-DIMM Memory Slot
1 x Automatically boot jumper

Back-Panel Connectors
1 xDV 12V DC input
HDD LED, Power LEDs
4 x Intel RJ-45 Ports

Power Supply:DC 12V
Packing list: 1*QOTOM Q190G4N,1*Power adapter,1*Screw,1*Packaing box.
This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security architecture at a excellent price per gigabit.
Built with performance, versatility, and low total cost of ownership in mind, pfSense systems meet the growing needs of organizations of all sizes.

Warranty:
1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
