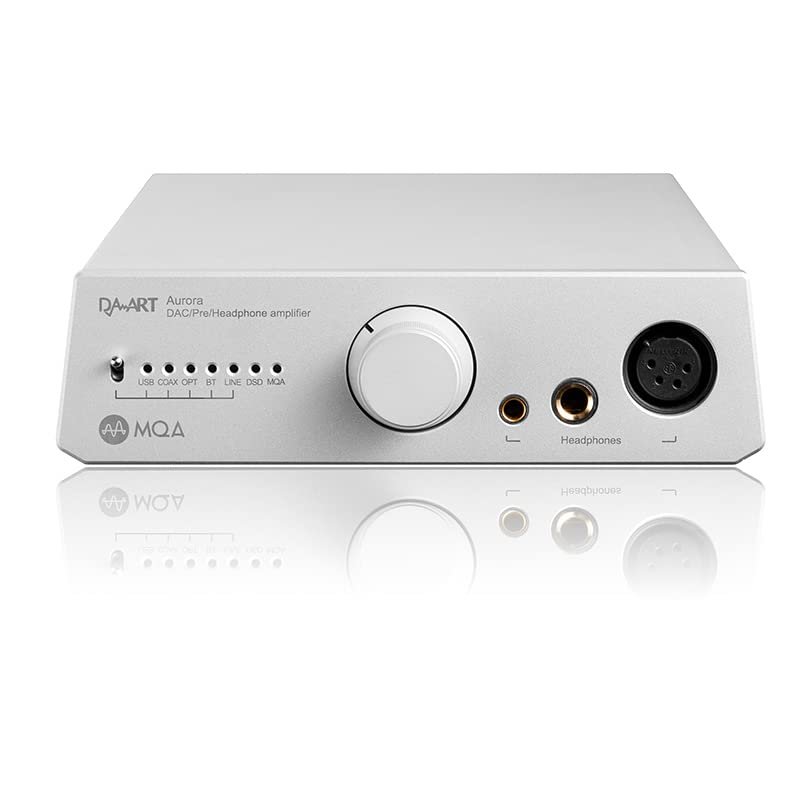

Fanmusic Yulong Aurora MQA Decoder ESS9068AS*2 DAC Headphone Amplifier DSD512 32Bit/768kHz (Silver)

Description

• USB Audio supports up to DSD512, 768kHz in PCM, and 8x MQA decoding.
• Coaxial and optical input support up to DoP128 and 384kHz in PCM
• Latest XMOS XU216 solution with NDK ultra-low phase noise oscillator.
• DAC based on 2021 announced ES9068AS chipset.
• Exotic LPF and line driver design with multiple OPA1612.

Input
USB Audio
PCM: 32Bit/768kHz MQA: 8x
DSD: DoP64, DoP128, Native DSD64/128/256/512
System: i0s, Android, Mac OSX, Linux, Windows XP to 11

Coaxial
PCM: 24Bit/384kHz MQA: 8x
DSD: DoP64

Optical
PCM: 24Bit/384kHz MQA: 8x
DSD: DoP64

Line
RCA: single-end fixed level line input, 2V nominal

DAC
THD+N 0.0001x %
Dynamic Range125dB
Crosstalk-120dB

SNR-125dB
Output Impedance20
Output LevelSingle-ended (RCA) 3V
Balanced (XLR) 6V

Head Amp
Power Rating32
6.35mm (SE)1600mW
4.4mm/XLR4 (BAL)4000mW
Freq. Response20-30KHz0.15dB
THD+N0.0005%

Power Rating64
6.35mm (SE)1500mW
4.4mm/XLR4 (BAL)4000mW
Freq. Response20-30KHz0.15dB
THD+N0.0005%

Power Rating150
6.35mm (SE)370mW
4.4mm/XLR4 (BAL)750mW
Freq. Response20-30KHz0.15dB
THD+N0.0005%

Power Rating300
6.35mm (SE)180mW
4.4mm/XLR4 (BAL)375mW
Freq. Response20-30KHz0.15dB
THD+N0.0005%

Pre Amp
Output Level
Single- ended (RCA) 6V max
Balanced (XLR) 12V max

Freq. Response
20-30KHz 0.1dB

THD+N0.0005%
SNR-120dB
Output Impedance>20
Power consumption>20W

Dimension200mm x 165mm x 52mm (LxDxH)
Weight1Kg
