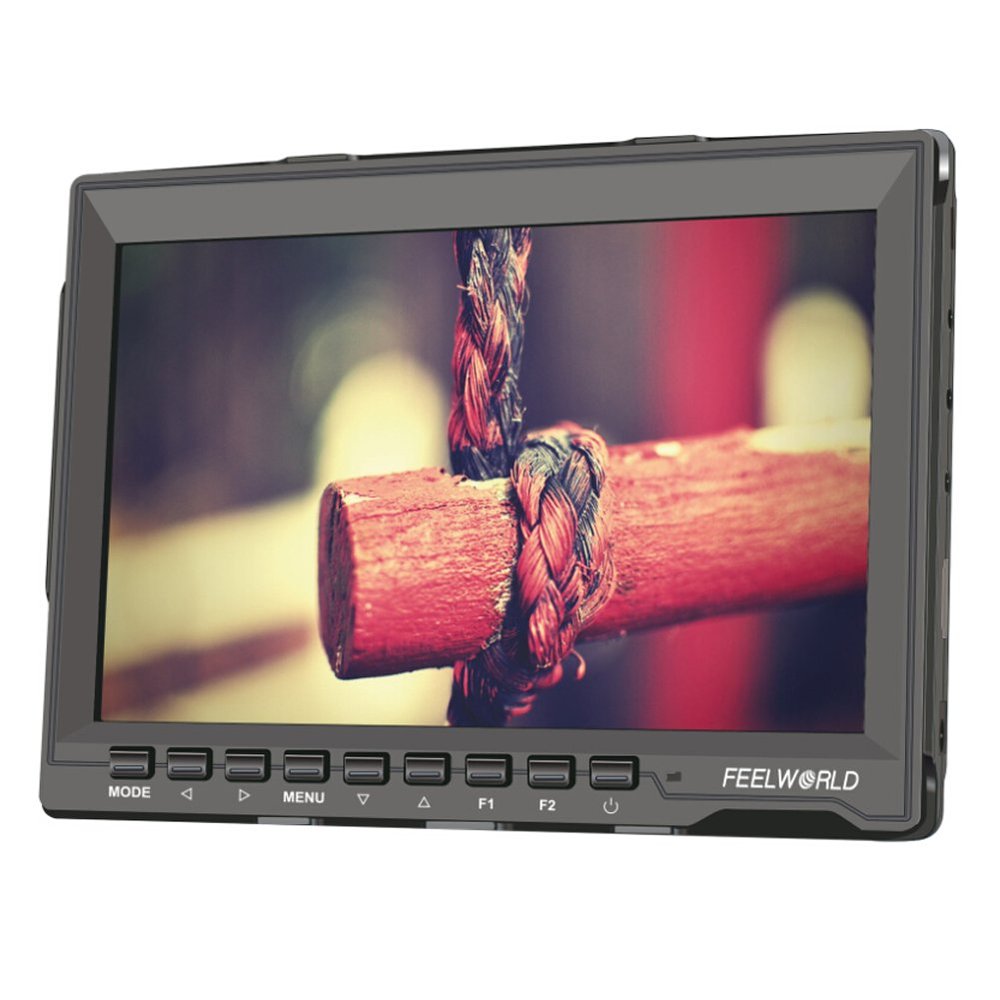

FEELWORLD FW759 7" IPS DSLR Camera Field Monitor 4K HDMI with Sunshade and HDMI Lock 1280x800

Description

• Advanced Features: Peaking Focus Assist, False Color, zebras, Check Field, Zoom In (4X, 9X, 16X), Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User), Image Flip, Nine GridPixel to PixelCenter Marker, Safe Marker, Ratio Marker, Brightness Histogram, Embedded Audio Monitoring.
• FEELWORLD FW759 7" IPS screen, Ultra HD1280x800 resolution, Brightness: 400cd/m2, Contrast: 800:1, Aspect Ratio:16:10, Dot Pitch:0.11775(H) 0.11775(V) mm,HDMI Support Format of 480i/576i/480p/576p/720p/1080i/1080p/4K UHD 38402160p/40962160p.
• Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio.
• Ultra-thin Lightweight Design. Featured with 1/4 screw holes on bottom and side. Quite convenient for attached to the rig, stabilizers and other staffs.
• Package Include: 1 FW759 Monitor, 1 Mini HDMI Cable, 1 Sunshade, 1 Hot Shoe Mount, 1 HDMI Plug Lock, 1 Operation Manual. Note: it does not come with either a battery or power supply.

Model: FW759
Screen Size: 7" IPS
Resolution: 1280800 pixels
Dot pitch: 0.11775(H) 0.11775(V) mm
Aspect Ratio: 16:10
Brightness: 400cd/m
Contrast Ratio: 800:1
Backlight
LED
Viewing Angle: 89/89(L/R) 89/89(U/D)

Input
1 X HDMI
1 X AV
1 X Wire remote OSD controller

Audio
Audio Out: Stereo Headphone, Speaker

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 38402160p (30/29.97/25/24/23.98Hz), 40962160p (24Hz)

General
Input Voltage: DC6.535V
Power Consumption: 5W
Power Connector: DC
Battery Plate: F970 (Standard); D28S, LP-E6 (Optional)
Working Temperature: -20C~50C
Storage Temperature: -30C~60C
Install Way: 1/4"-20 Thread Socket (1 bottom side)
Unit Size: 176L130H17D (mm)
Unit Weight: 300g

Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio

* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
