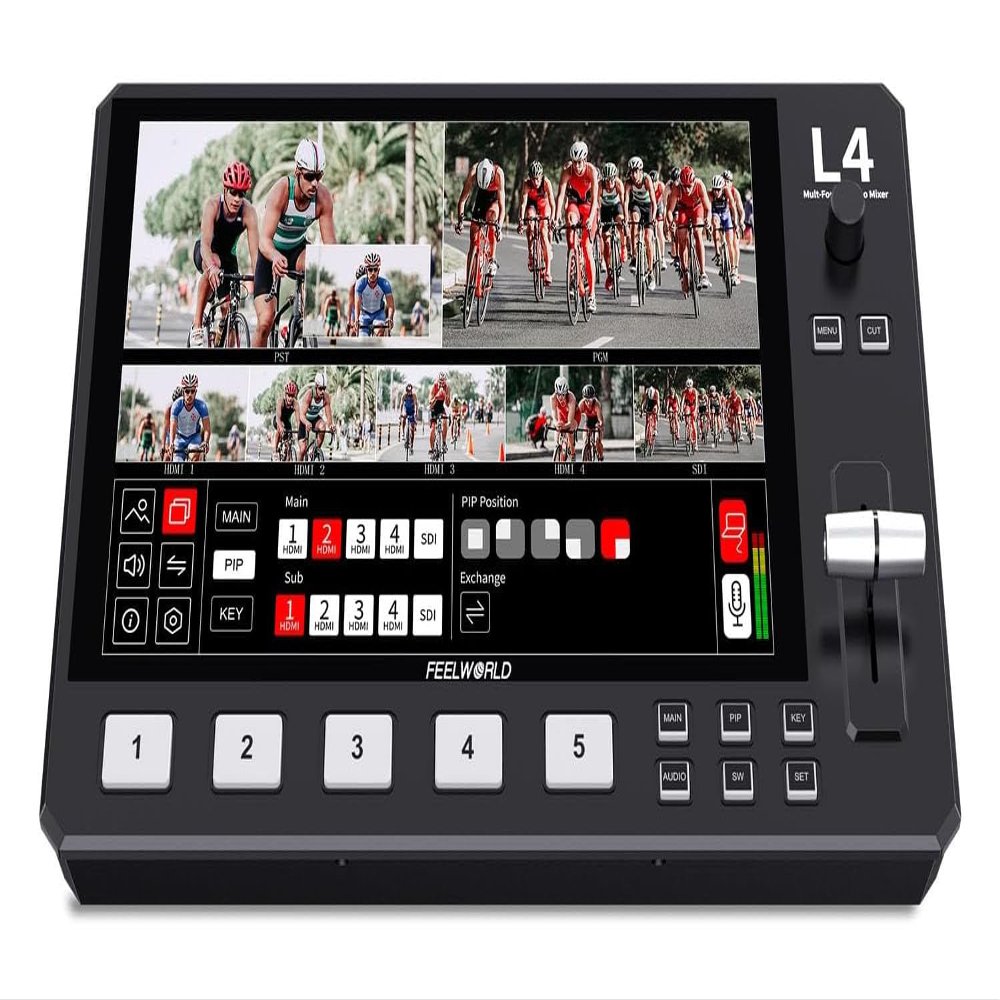

FEELWORLD L4 Multi-camera 5 chanel HD Video Mixer Switcher 10.1 inch Touch Screen 4 HDMI one SDI Input USB3.0 Output Fast Streaming in Diverse Way

Description

• Multi-cam Live ProductionFEELWORLD L4 is 5 chanel HD video switcher with 10.1-inch Touch Screen, equipped with 4 HDMI and one SDI inputs, meet more professional needs, easy to handle various multi-cam live production. L4 is plug and play, you don't need to be a video professional to achieve great looking results.
• Chroma Key and Logo OverlayL4 is perfect as it features the powerful Chroma Key for any color screen keying effects. You get precise controls for edge and flare.You can even use the LOGO overlay function to create a title overlay effect.
• USB 3.0 Fast Live StreamingThe L4 features a USB 3.0 connection that operates as a simple webcam source. It can connect to any computer, so all streaming software for social media platforms work! Such as OBS software for live streaming, or conference software (Skype, ZOOM, Tencent conference and Yealink ) for business presentations.
• Multiple Transition Effects and PIP modesOne of the benefits of using L4 with a multi-camera setup is that you can use the Picture-in- Picture function to display two inputs at the same time. Any of the five inputs can be used for a Picture-in-Picture effect over the program output, with selecting your favourite mode 5 modes for optional). You can also exchange the sub picture and main picture quickly.
• Supports 13 transitionsL4 includes a range of broadcast quality transitions effects, you can set set to switch transition effects from 0.5 seconds to 5 seconds, you can also use T-Bar to switch the special effects you want.

*10.1-inch touchscreen, real-time preview 5 input sources +PST + PGM and operation interface
* Iconized touch operation, fast to learn; or buttons + knob operation
* Compatible with HDMI and SDI signal source, meet professional needs
* T-bar simply switch signal source or transition effects
* USB 3.0 fast to live streaming
* Embedded & Insert Audio with Sync
* Chroma key + LOGO overlay,creating an exciting studio
* Mix audio from multiple inputs
* Configurable PIP video overlay
* Supports 13 broadcasting transition effects
* Remote control via PC/smartphone APP (Feelworld Live Plus)

ModelL4
Screen Size10.1" Touch screen
BacklightLED

Input
4 X HDMI 1.4
1 X 3G-SDI
1X USB TYPE-A USB2.0 (Firmware Update or LOGO file import)

Output
1 X HDMI 1.3
1 X 3G-SDI
1USB CONTROL USB 3.0

Communication
1xRJ45 LAN (suitable for CAT6 cable)

Audio
Audio In13.5mm
Audio Out13.5mm

Input Solution
HDMI
SMPTE 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60 |2160p@30
VESA 1024X768@60|1280 X 720@60|1280 X 768@60| 1280X800@60 1280X1024@60 |1360X768|1366x768@60|1440x900@60| 1600x1200@60| 1680x1050@60 | 1920X1080@60 |1920 X 1200@60 38402160@23.97/24/25/30
SDI
720p (60/59.94/50/30/29.97/25)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

Output Solution
HDMI
SMPTE 720p@50/60|1080p@25/30/50/60
VESA 1024X768@60|1280x720@50/60|1280X768@60|1280X1024 @60|1360x768@60|19201080@25/30/50/60
SDI
720p (60/59.94/50/30/29.97/25)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
USB
720p50/60
1080p25/30/50/60

General
Power InputDC 12V/3A
Power Consumption27W
Working Temperature060
Humidity10%~85%
Unit Size290.2(L) x 189.5(W) x 55.7(H)mm
Unit Weight1.48kg
