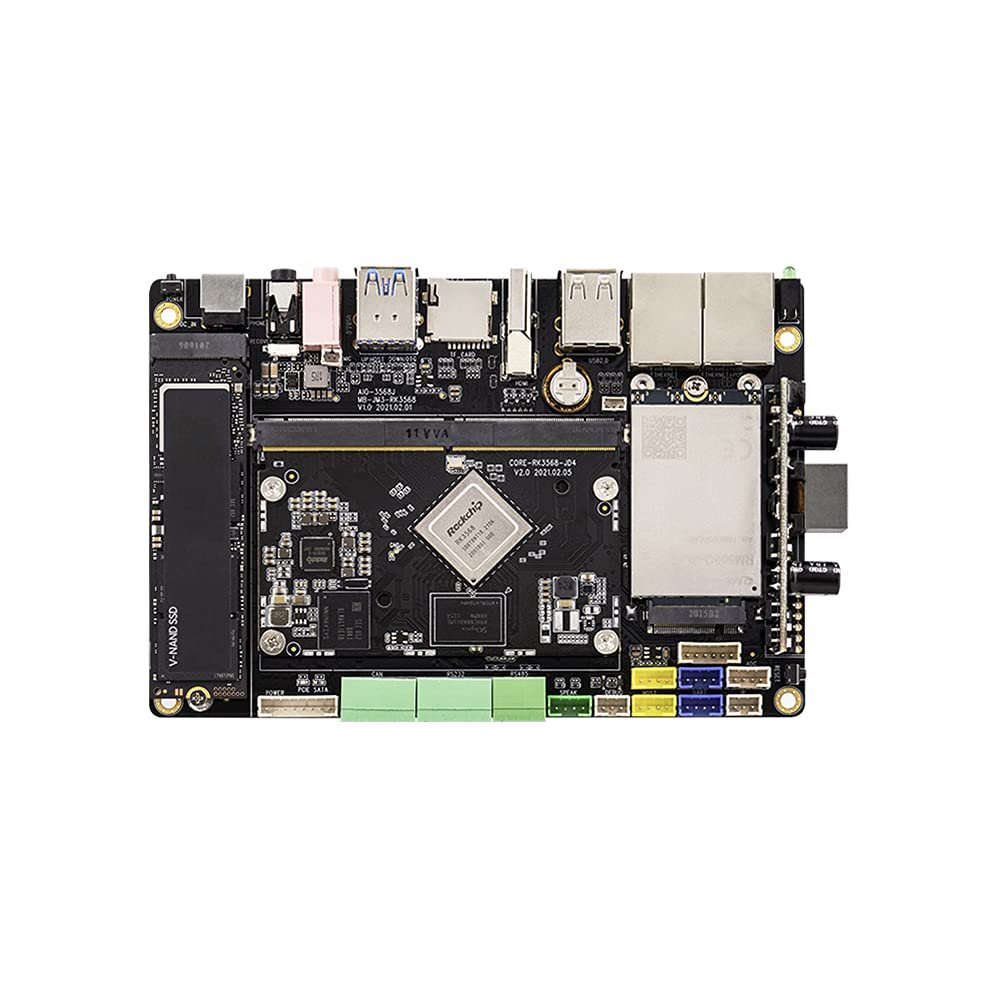

Firefly AIO-3568J AI Single Board Computer Based on Rockchip Quad-Core RK3568 Soc with 2GB RAM Support NPU WiFi 6 and 4G Module

Description

• [RK3568 quad-core 64-bit processor] RK3568 quad-core 64-bit Cortex-A55 processor, with brand new ARM v8.2-A architecture, has frequency up to 2.0GHz the efficiency is greatly improved. With 22nm lithography process, it features low power consumption and high performance
• [8GB large RAM, all-data-link ECC] It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products
• [Integrated co-processors GPU, VPU, NPU] It is integrated with dual-core GPU, high-performance VPU and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow
• [Powerful wireless network communication] Supporting WiFi 6 (802.11ax) wireless network communication, it features high-speed transmission, lower packet loss rate and retransmission rate, which more effectively reduces data congestion, making the transmission more stable and secure. It can also be connected to 5G/4G module, enabling the product to have a higher-rate, larger-capacity and lower-latency communication
• [Various display interfaces] With MIPI-CSI x1, MIPI-DSI x1, HDMI2.0, EDP video interfaces, it can support up to three screen output with different display. The built-in 8M ISP supports dual cameras Need MIPI Adapter Board to support dual cameraand HDR. Video input interface can be connected to an external camera or multiple cameras. The board can be used in NVRs, intelligent terminals, multimedia advertising players and other products

-Note-

1.There are different baseboards, one can support 4G module, the other one can support 5G module. Currently, we only offer baseboard with 4G module seat.

2. For dual-camera function and POE function, you need to buy adapter board and POE module addtionally.

-In the Box-

1x AIO-3568J 2G RAM (with baseboard support 4G module)

1x 12V DC Power supply

1x A to A USB Cable

2x Antenna

-Tech-support-

Any questions please click "WayPonDEV" and ask a quesion.
