for LTM170E8 LTM170E4 LTM170E6 LTM170E5 Screen Drive Controller Board Kit 1280x1024 4-CCFL USB+AV+VGA+HDMI 30 Pin LVDS 1280x1024(for LTM170E6-L03)

Description

• Signal processing core: converts the video signal output by the host into a screen-recognizable format, drives the display, and processes brightness and color adjustment instructions.
• High interface matching requirements: the input interface needs to be consistent with the output of the host, and the output interface needs to fit the screen interface, otherwise communication cannot be made.
• Strict screen adaptability: It must correspond to the screen model, resolution, and panel type (TN/IPS, etc.), and inconsistent parameters will cause abnormal display.
• Power and power consumption management: Provides stable screen voltage, supports low-power mode, and extends battery life with laptop power systems.
• Big difference from external boards: small size, relying on notebook motherboard power supply and signal, and the degree of functional integration is higher than that of external display driver boards.

Controller board description:
This controller board only suitable for LVDS 30-pin display screen.
Controller board input power supply: DC 12V 5A (DC Port: 2.5MM and 5.5MM inner+ outside-)
Please note: Do not use power adapters with voltages exceeding 12 volts. This will damage the control board.
Input: HDMI-compatible, VGA, Audio, USB
Audio output: Earphone, PH2.0 4-pin speaker port (requires self purchase of speaker)
USB port supports software upgrade, multimedia play
AV Compatible With PAL And NTSC (Only TV analog signals are supported, It's not a digital signal)
OSD Language: Chinese, English
Board size: 188mmx43mm
When the correct signal source input is not detected. The controller board will automatically enter standby mode. The keypad cannot respond, Please connect the correct signal source.

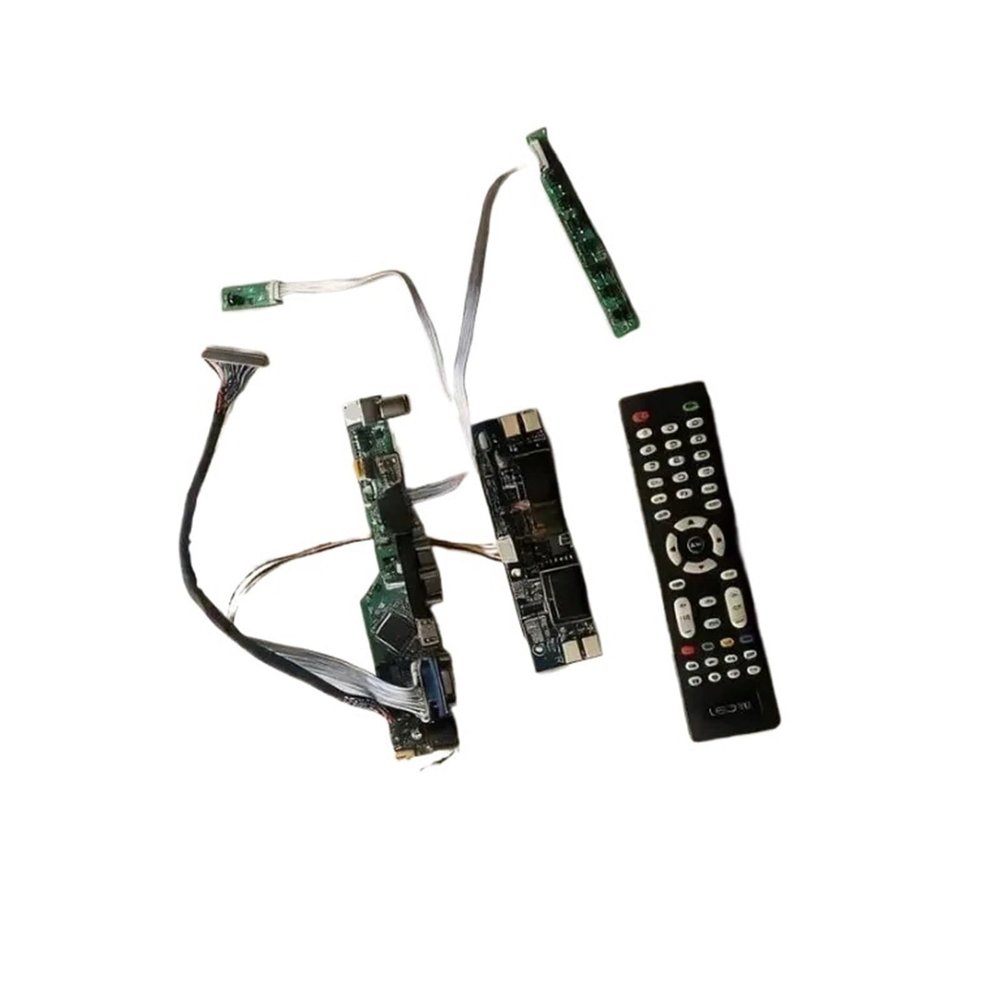

Packaging List:
1Pcs x Controller motherboard
1Pcs x LVDS 30-Pin signal cable
1Pcs x IR and Keyboard with cable
1Pcs x Remote control (Battery Not included)
1Pcs x Backlight inverter (According to your screen configuration)
==========
Model Number : TV_30P4D
Origin : Mainland China
Supported Signal Port : LVDS 30-Pin
Supported Resolution : 1280x1024
Backlight Type : 4 pcs CCFL
