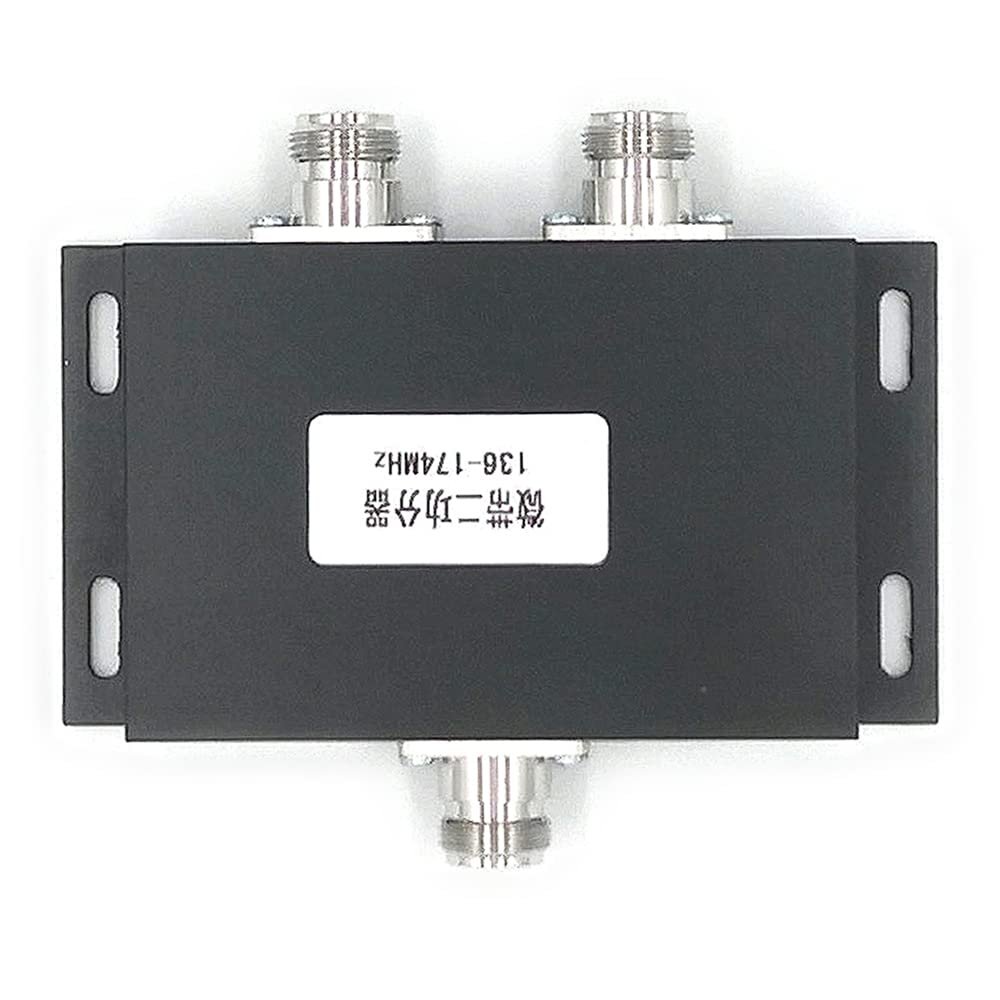

Fumei 2 Way VHF 136-174MHz Antenna Power Splitter 50W Two Way Radio Repeater Power Divider with N Female connectors

Description

• Divides the input signal energy into two way output
• High isolation between the power divider output port
• 136MHz-174MHz frequency is used in radio equipment
• Contact us before order it if you want other connector type
• NOT for two channel signal energy into one way

Specifications:
Frequency Range: 136-174MHz
Division Ratio: 3.01dB
Isolation: >=18dB
Insertion Loss: <=3.4dB
Amplitude Balance: <= 0.2 dB
Phase Balance: <= 5
VSWR: <=1.3dB
Impedance: 50 ohm
Max power input: 50W
Operating temperature: -25-+55C
Material: Aluminum housing
Connector: N-Female
Dimension: 12.5x10.5x2.8cm
Weight: 350g
