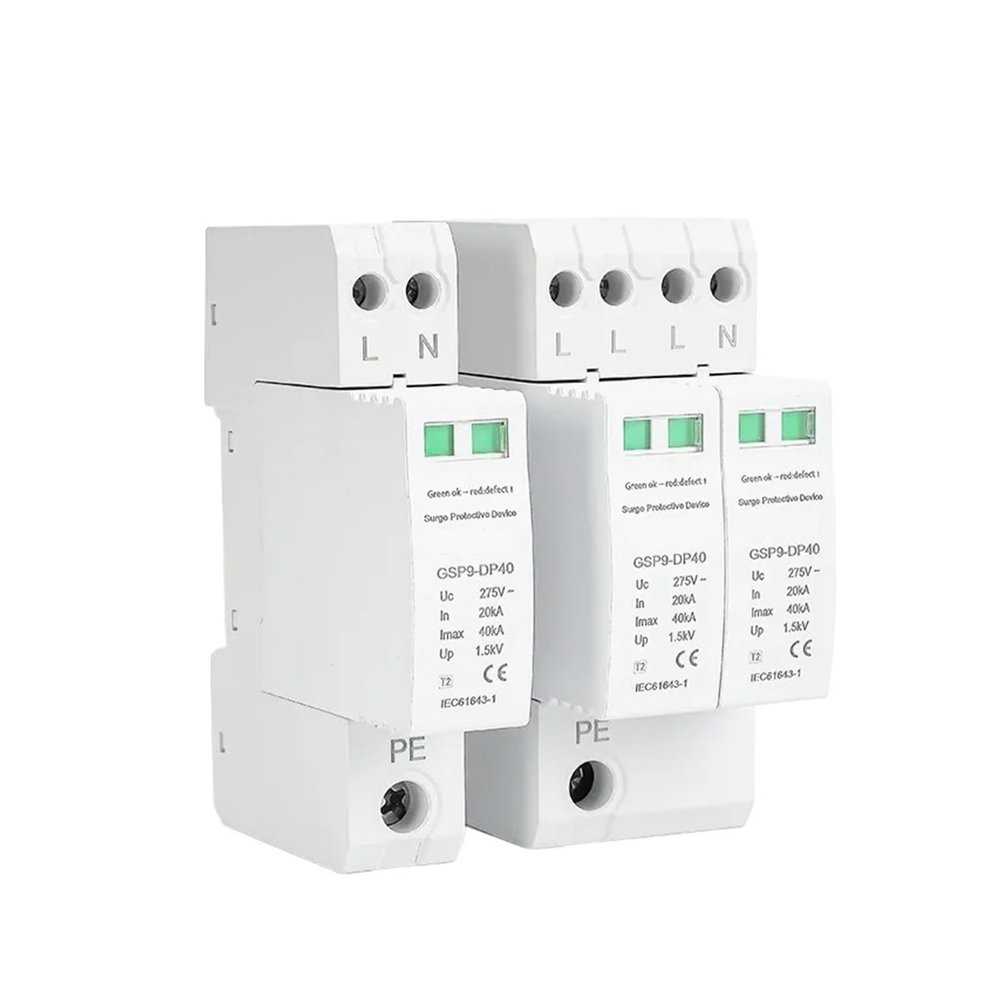

GSP9 AC SPD 20KA~40KA 275V House Surge Protector Device Low-Voltage Arrester Device 1P+N 18mm 3P+N 36mm(GSP9-DP40 4P 275V)

Description

• 1. Multiple protection: Provides multi-level surge protection, effectively absorbs peak pulses and instantaneous overvoltages from power lines, and protects connected equipment
• 2. High energy capacity protection: using high-performance MOV (metal oxide varistor) modules with high Joule rating, capable of absorbing large surge energy
• 3. Fast response: With a nanosecond (ns) response time, it ensures that protection can be quickly activated before surge damage to sensitive electronic devices
• 4. Durable and sturdy casing: Made of flame-retardant materials, the casing is resistant to high temperatures, enhancing safety and durability
• 5. Universal compatibility: widely applicable to sensitive electronic devices such as computers, televisions, game consoles, speakers, etc. in homes and offices

General
This AC surge protective device is applied low voltage standard IEC EN 61643-11 to protect against AC power line system and other equipment from over voltage and instantaneous over voltage damage. It has advantages of large discharge current, fast respond time and low residual voltage.
Main features
1. High discharge capacity, quick response, pluggable.
2. Fast response time, din rail installation.
3. Double thermal disconnection devices, provide more reliable protection.
4. Green window means normal, red means defect, need to change module.
5. Voltage can be customized.
==========
Type : Other
Type : Circuit breaker
Model Number : GSP9-DP40-1P+N 3P+N
is_customized : Yes
Rated Voltage : 220/380V
Certification : CE
Product Name : Surge Protection Device/SPD AC
Standard : EN/IEC61643-11-CALSS 2-TYPE2
Max continuous operating AC Voltage : AC275V
Pole : 1P+N 3P+N
Discharge Current : 20-40KA
Operating State : Green
Fault Indication : Red
Response Time : 25ns
Mounted : Din Rail
