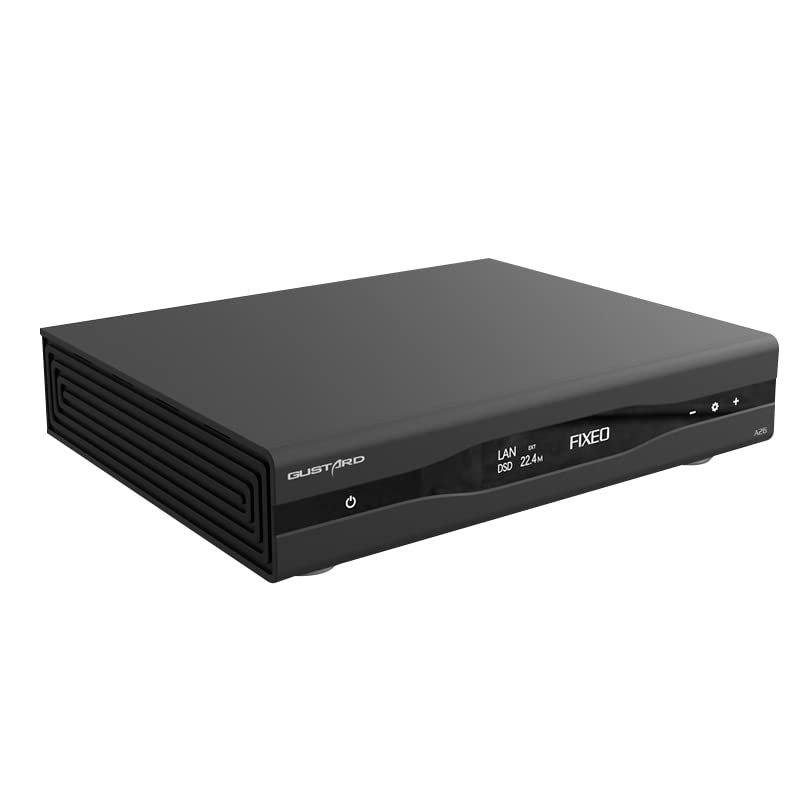

Gustard A26 MQA Decoder Dual AK4499EX & AK4191 Support DSD512 PCM768K MQA384K DAC-A26 with Streamer/Renderer (33 * 26 * 6.5cm, Black, 1)

Description

• AK4499EX 2:Two AK4499EX DACS and one AK4191 modulator from Asahi Kasei Microdevices.With independent power supply and grounding for each channel, separate digital-analog architecture eliminates interferences from the beginning
• Streamer /Renderer: Easy access to high-quality online streams. Roon, UPnP and HQPlayer NAA are supported at present, and there will be more protocols in the future.
• CIock synthesization: Replace the input signal' s clock with precision oscillators (local or external). Interference from the input source' S clock is avoided.
• K2, ultra-low noise clock synthesizer: Provides precision clock from local oscillators or external clock in.
• LPF:LPF is specifically designed for the AK4499EX using discrete devices. Final parameters of the circuit are adjusted with subjective listening. Different from ICs, discrete circuits provide the possibilities to control every detail in sound and performance. But the parasitic effects introduced huge challenges to development experience and device' s quality.

Features
AK4499EX DAC & AK4191 Modulator
roon bridge,upnp...
Clock synthesization with precision oscillators.
Exclusive technology over FPGA.
6 PCM filters & 2 DSD filters & DSD Direct mode
Parallel hybrid I/ convertors.
Specifically designed LPF circuits.
XU216 from XMOS, supports up to PCM768(with MQA- support) & DSD512.
Two specific toroidal transformers for audio application.
Independent regulators and filters.
. Adjustable brightness with power saving mode.
Remote & Touch Panel.

Input
IIS/USB/LAN: DSD64~ DSD512, PCM 44.1K-768K, MQA 8X
COAX/AES/OPT: DSD64(DoP), PCM 44.1K-192KMQA 8X
LAN: Roon/UPnP/HQPlayer NAA (more in the future)
10M Clock in: 50 Q BNC, 0dBm- 20dBm, square wave 0.2-3.3V, sinewave 0.5-3.3V

Output:
Frequency Response: 20-20kHz /+ -0.2dB
Dynamic range: > 127dB
Signal-to-noise ratio: > 126dB
Crostalk: -139dB @ 1kHz
THD+N: 0.0001% @ 1kHz
IMD: =0.001% @ -1dbfs
RCA: 2.5Vrms (VOLUME FIXED) 100
XLR: 5.0Vrms (VOLUME FIXED) 100
XLR pinout: 1-Ground 2-Hot 3-Cold
XLR pinout: 1-Ground 2- Hot 3-Cold

Others:
Power Supply: AC115V/230V 50/60Hz
Power Consumption <30W
Size: 330mm (Width) * 260mm (Length) * 65mm (Height)
(protrusion not included)
Packing size: 420mm (Width)*360mm (Length) * 175mm
Weight: 7Kg (with package)
Sandblasted aluminum alloy case: Silver or Black version
