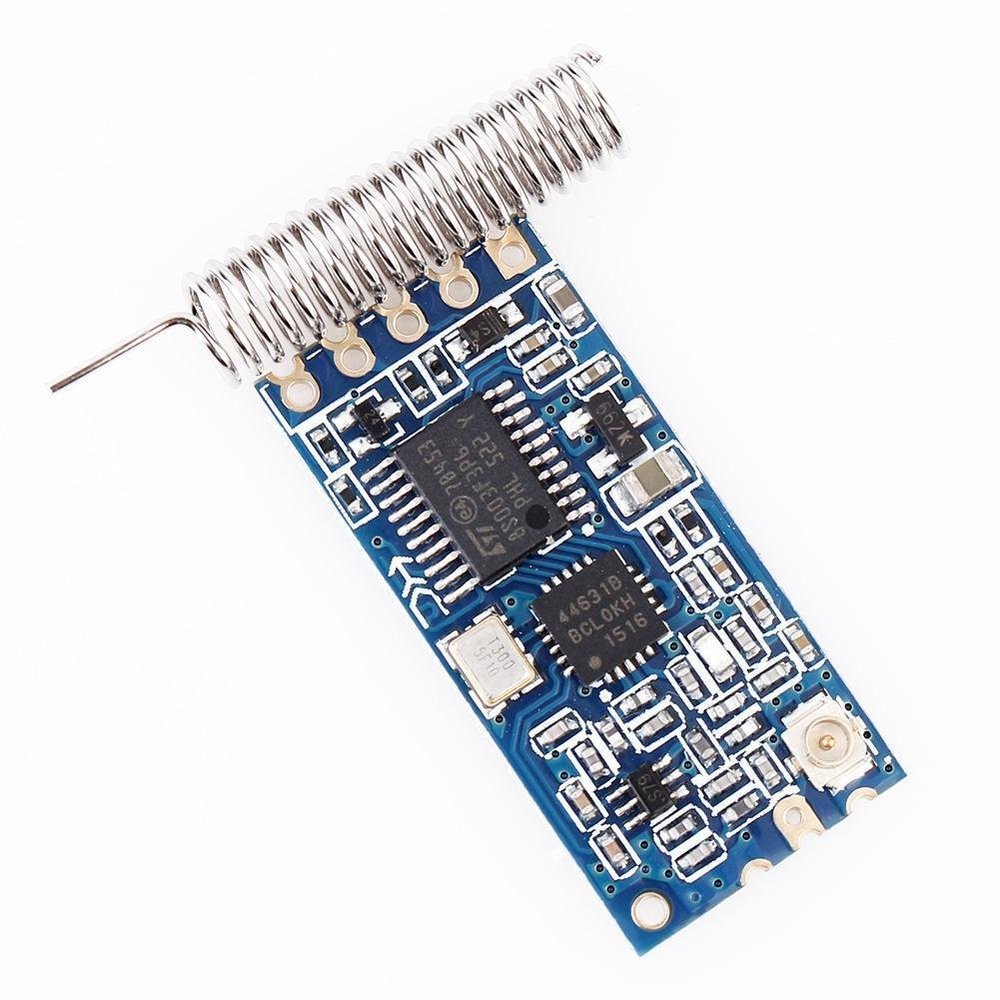

HiLetgo HC-12 433Mhz SI4438 Wireless Serial Port Module 1000M Replace Bluetooth with Antenna

Description

• 433Mhz SI4438 1000M HC-12 Replace Bluetooth Antenna
• Power supply voltage : 3.3V
• Default communication distance: about 1000 meters
• Default idle current: 16 ma
• Module size: 27.8mm*14.4mm*4mm

Description:
Power supply voltage : 3.3V.(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V
you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)
Default communication distance : about 1000 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Default idle current: 16 ma (modules in different working mode of different current).
Module size: 27.8mm*14.4mm*4mm.
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)
Module supporting software upgrades.
Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)
Packing included:
1* 433Mhz SI4438 Wireless Module Serial Port 1000M HC-12
