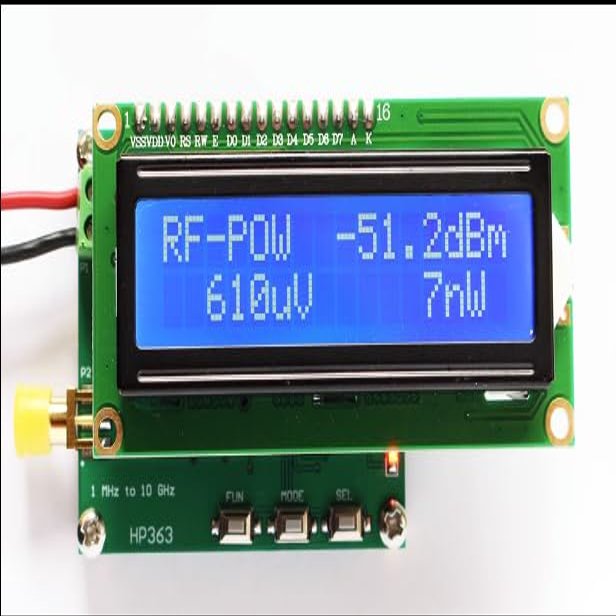

HP363 RF power meter 1MHz~10GHz -50~0dBm power meter can set RF power attenuation value

Description

• Input signal range 0.1~6 GHz
• Maximum input signal < 10 dBm
• Adjustable attenuation value -31.5~ 0 dB
• Working voltage 7~12 VDC
• Size 36*32*20 mm L x W x H

I. Overview:
The RF913 is a small RF attenuator;
The module is simple to use, and the input attenuation data is toggled by toggle switch operation, and the output attenuation is updated immediately. II. Product application:
Attenuators;
RF attenuator;
III. Technical parameter table:
Ordinal Item Parameter Unit Remarks
1 Input signal range 0.1~6 GHz
2 Maximum input signal <10 dBm
3 Adjustable attenuation value -31.5~ 0 dB
4 Step attenuation value 0.5 dB
5 Maximum magnification 18 dB
6 Maximum output amplitude <17.3dBm dBm
7 Working voltage 7~12 VDC
8 Operating current <80 mA
9 Size 36*32*20 mm L x W x H
IV. Interface description and related operations
P3 interface (power supply)
VDD: Power supply positive (7~12V)
GND: The negative terminal of the power supply
P1 interface signal input (RP SMA KE KHD outer screw bore)
P2 interface signal output (RP SMA KE KHD outer screw bore)
V. Toggle switch operation:
The toggle switch sets the attenuation value in base 16.
