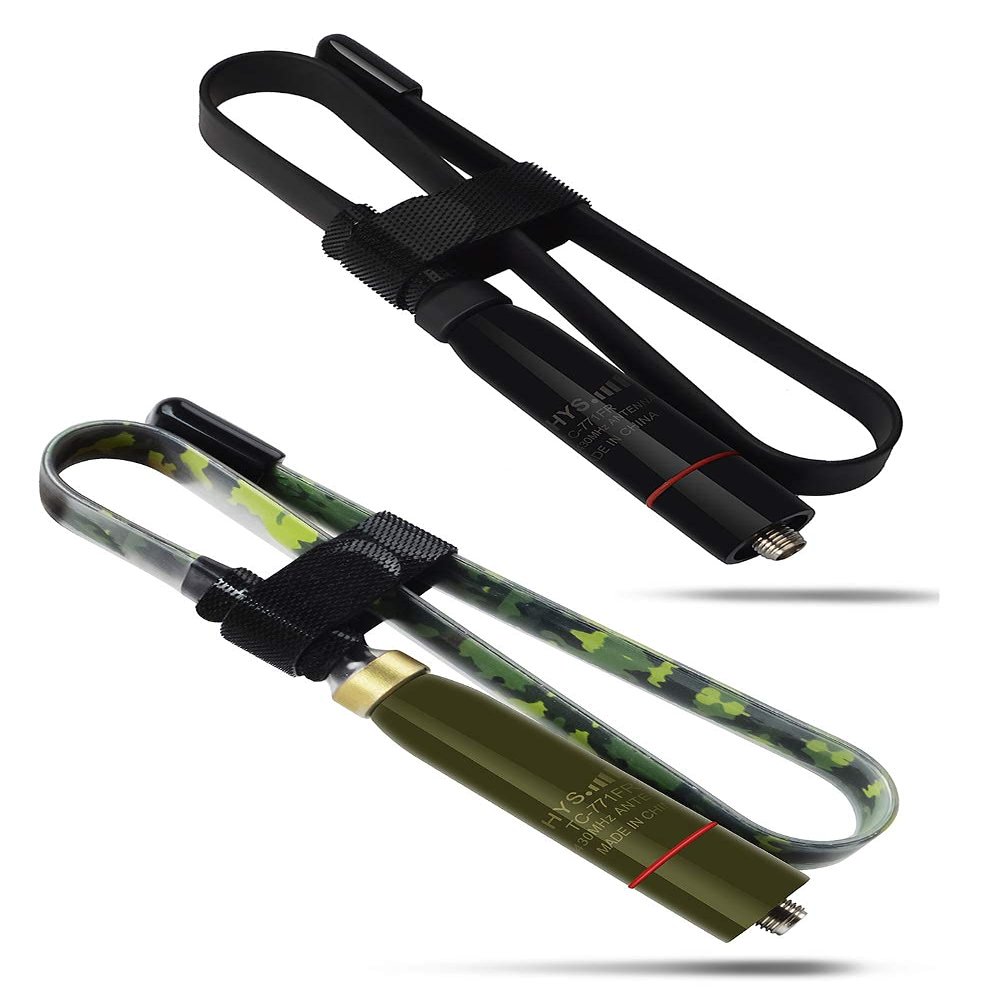

HYS SMA-Female Dual Band VHF/UHF 144/430MHz High Gain Foldable CS Tactical Antenna for Baofeng UV-5R UV-82 BF-F8HP Ham Two Way Radio

Description

• 2 Meter/70cm (144Mhz/430Mhz)-136-174Mhz&400-470Mhz Foldable Portable Antenna; Connector: sma-female; Gain:2.15/3.2dBi; Color: Camouflage.
• Maximum Power Input-watts:20W (Handheld radio less than 20W); ABS material , this is a HYS soft flexible CS Tactical antenna able to offer a wide range of features to choose from for your handheld transceiver or scanner.
• Compatible with AnyTone, BaoFeng, some Wouxun, and some Kenwood Handheld Radios; work for the MODEL NUMBER baofeng radio: uv-5r, bf-f8hp, uv-82, bf-888s, 888S, uv-82hp, bf-f8+, uv-5r Series, uv-82 Series; work for the MODEL NUMBER WOUXUN handheld Radio: KG-UVD1P,KG-UV6D,KG-659, KG-669 , KG-669 PLUS, KG-679, KG-679 Plus, KG-689, KG-689 PLUS, KG-699E.
• Foldable CS Tactical Antenna easy to install, whether you need a replacement antennas or want to improve your HT's radiating efficiency and range, HYS dual-band antennas offer a quality solution for your needs, it can help your handheld Radio extend the talk distance.
• Camouflage HYS SMA-FEMALE Antenna suitable for indoor and outdoor use, outdoor Adventure Club, camping and self-driving travel. Light weight, flexibility and easy installation work, antenna doesn't take up space, allowing you carry in an outside pocket of backpack.

ELECTRICAL SPECIFICATIONS

Frequency Range:144MHZ&430MHZ

Band width:MHz

Impedance:50

VSWR:less than1.5

Gain:2.15/3.2dBi

Polarization:Vertical

Maximum Power Input-watts:20W

Radiation:Omni

Radiation:Direct Ground

MECHANICAL SPECIFICATIONS

Height:39cm(15.3inch)

Termination:SMA-female

Radome Material: ABS

Note: the antenna is compatible for: most SMA-male Radio

Compatible with Two-way handheld radio:

Working for Baofeng/Pufeng handheld Radio:GT-3, UV-5R, UV5RE, UV5RA,UV5R Plus UV-82L .etc

Working for WOUXUN handheld Radio: KG-UVD1P,KG-UV6D,KG-659, KG-669 , KG-669 PLUS,

KG-679, KG-679 Plus, KG-689, KG-689 PLUS, KG-699E

Working for Kenwood handheld Radio:TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G, K-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160 Working for LINTON handheld Radio: LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT6188, LT3288.

Working for PUXING handheld Radio: PX-777, PX-777 PLUS, PX-666, PX-3288, PX-888

Working for WEIERWEI handheld Radio: VEV-3288S,VEV-6288,VEV-3288, V-1000

Working for QUANSHENG handheld Radio: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT

Working for Retevis: H-777 RT23 RT25 RT26 RT29 RT5 RT52 RT-5R RT-5RV RT6 RT7
