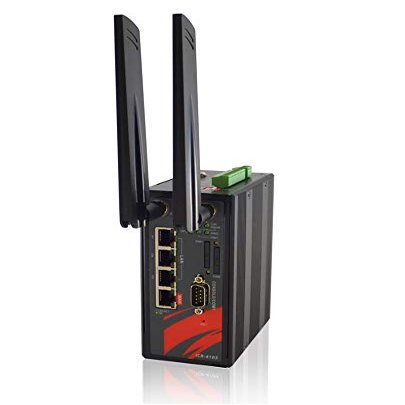

ICR-4103-A - Ethernet Industrial LTE/4G Router, DIN Rail Mount, Hardened -40 to +75 Celsius

Description

• Supports multi-band connectivity with FDD 4G LTE/ TDD 4G LTE/ 3G WCDMA/2G GSM/ LTE Cat4 2 SIM card, 4G LTE antenna, 1x WAN (10/100Base-TX) + 3x LAN (10/100Base-TX UTP), 2x DI + 1x DO, 3x Serial port (2x RS232, 1x RS485) GPS, GNSS to get your location on earth, and obtains map information using Google Map (Optional)
• Highly reliable and secure for mission-critical cellular communications Provide flexible options to configure LAN/ WAN ports Built-in dual SIM for network redundancy / failover/ roaming over/ back up Integrated dual detachable antenna against radio interference
• 4G LTE and WAN port for seamless connection and redundancy Supports 3x Serial port (1x RS484, 2x RS232) for IoT and automation application, ModBus RTU and ModBus/TCP gatway, MQTT Supports Routing/Firewall, NAT, Virtual Server, DMZ, Port filtering, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP 1 & 2, VRRP, OSPF V2 & V3
• Supports VPN, OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256) IPv6/IPv4 dual stack and all applications are IPv6 ready Supports DHCP server and client, PPPoE, Static IP, SNTP, DNS Proxy, DDNS, QoS, Virtual Com, UPnP Supports Alarm message : DO, SNMP Trap, E-mail Supports SNMP, TR069,Web, Telnet, CLI for management
• Supports dual Image firmware upgrade by Web CE, FCC, Rail Traffic EN50121-4 certified Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified Rugged metal, IP30 protection & Fanless design Wide operating temperature -40 ~ 75C

The ICR-4103 series are high-performance industrial grade 4G-LTE cellular routers. It is designed to offer the fast connectivity over cellular network for industrial applications. ICR-4103s Ethernet ports can allow up to 3 Ethernet devices link to the cellular network, provides dual SIM cards and 1 Ethernet WAN port can automatic re-connecting and auto-switching for offering the cellular network redundancy to ensure uninterrupted connectivity. The ICR-4103 cellular router is integrated with WAN, LAN, SIM, VPN, Firewall, built-in DI/DO and Serial port services. In addition, ICR-4103 uses the highest level of industrial grade design for connected in the most demanding environments, is ideal solution for Industrial Internet of Things (IIoT) and M2M(Machine-to-Machine)applications, such as remote control and monitoring, bus ticketing collection system, CCTV, SCADA, digital signage, kiosk and intelligent traffic systems.
