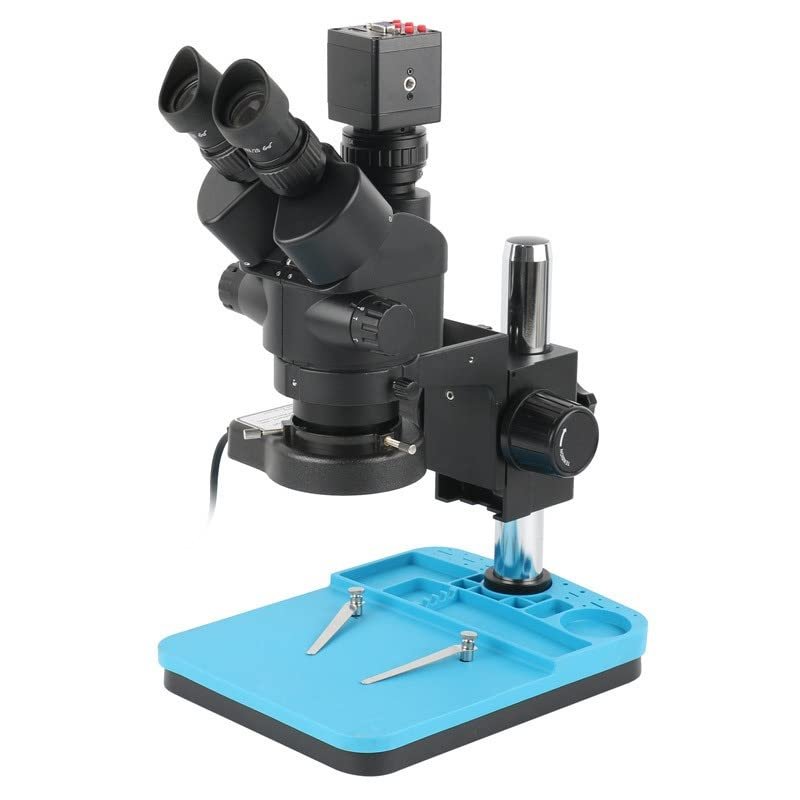

Industrial Lab Simul Focal Adjustable Stereo Microscope Trinocular Microscope Set with I_MX307 1080P VGA HDMI Video Camera (Color : 7-45x)

Description

• Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
• Eyepiece: 30mm super widefield high-eyepoint WF10X/20; Objective: 0.7-4.5X; Zoom Range: 6.5:1; Trinocular Port: 23mm photo port; Interpupillary Distance: 2-1/8" to 3"(54-76mm) Field of View: 1-1/4" (33mm).
• For specific parameters, please refer to the detailed description. Microscope Auxiliary Objective Lens Features: 0.3X 0.5X 0.7X 0.75X 1X 1.5X 2.0X Magnification Power; 1-7/8" (48mm) Mounting Thread.

Specification:
Model: Camera with HDMI VGA two output
Color: black
Sensor: 1/2.8 inch I_MX307
Image Resolution: 1920*1080 1024*768 (for HDMI), 1920*1080 1024*768 (for VGA)
Video Resolution: 1920*1080 1024*768 @ 60F/S
Basic Function:Brightness(0-100%,Adjustable), Contrast(0-100%,Adjustable), Saturation(0-100%,Adjustable), White balance(One key white balanceManual balance)
Image quality adjustment:Exposure(Automatic Exposure, Manual Exposure), Color temperature(Red, Blue, Green, Adjustable)
Freeze: Support
Mirroring: Support
Language: English/Chinese/Japanese/Spain/Russian
Power supply:12V 1A
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Appearance size:50*50*58mm

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

0.5x 1/2CTV C-Mount Adapter Features :
Zoom: 0.5x 1/2CTV C-Mount Adapter
Camera Sensor Compatibility: 2/3" to 1"
Compatibility: Stereo Microscope SM745T (not V203 or V331) T490
Camera Mount: C-mount(1" / 25.4mm diameter)
Increase the visual field,Increase the image display area,The interface is with High-definition optical coating lens

Microscope Auxiliary Objective Lens Features:
0.3X 0.5X 0.7X 0.75X 1X 1.5X 2.0X Magnification Power
1-7/8" (48mm) Mounting Thread
0.3X Microscope Auxiliary Objective Lens(Working Distance 287 mm)
0.5X Microscope Auxiliary Objective Lens(Working Distanc
