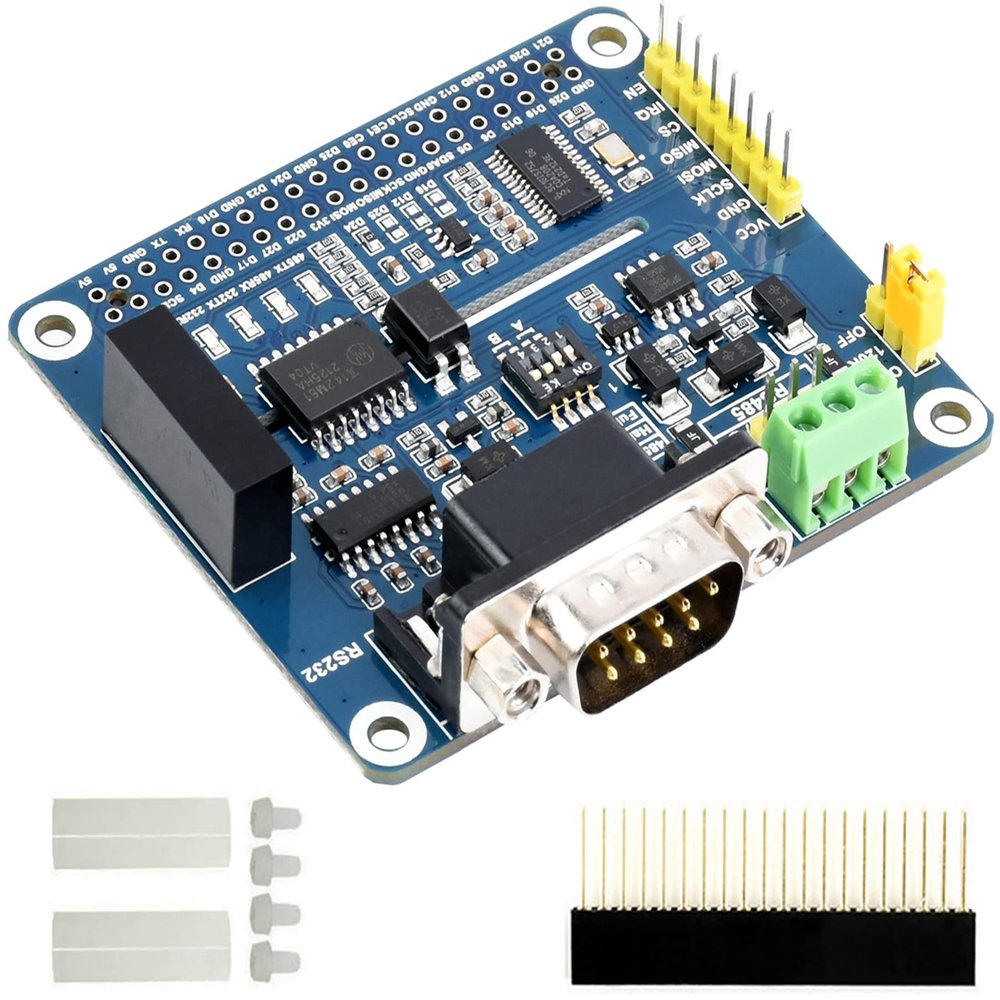

Isolated RS485 RS232 Expansion HAT Board for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH,Adopt SC16IS752 UART Expansion Chip,SPI to RS485 and RS232 Up to 921600bps Data Rate

Description

• Isolated RS485 RS232 Expansion HAT for Raspberry Pi (4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH). Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.
• Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps. Support RS485 and RS232. RS232: full-duplex communication, SP3232 transceiver. RS485: semi/full-automatic communication, SP3485 transceiver.
• Overcurrent/Overvoltage proof, High Stability. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status.
• Lead out the SPI control interface for easy access to main control boards such as Arduino. Provide complete supporting information manuals (C and python sample programs and user manuals, etc.)
• Operating Voltage 3.3/5V. Dimension 65mm56.5mm .

Instruction
RS485 RS232 HAT is an isolated RS485 and RS232 expansion board specially designed by Waveshare for Raspberry Pi. It adopts SC16IS752+SP3485, SP3232 scheme, built-in power isolation, ADI magnetic coupling isolation and TVS and other protection circuits.

Features
Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards
Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps
RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch
RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance
Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity.
Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status
Lead out the SPI control interface for easy access to main control boards such as Arduino
Provide complete supporting information manuals (C and python sample programs and user manuals, etc.)

Specifications
Serial port expansion chip: SC16IS752
RS485 transceiver SP3485
RS232 transceiver SP3232
Communication Interface SPI
Communication rate 300~921600 bps
Operating Voltage 3.3/5V
Dimension 65mm x 56.5mm
Via diameter 3.0mm

How-to-use document/User Manual ://bit.ly/3DNZjTE
//bit.ly/3DNZjTE

Package Content
RS485 RS232 HAT x1
2X20PIN header x1
Standoffs pack (2pcs) x1
