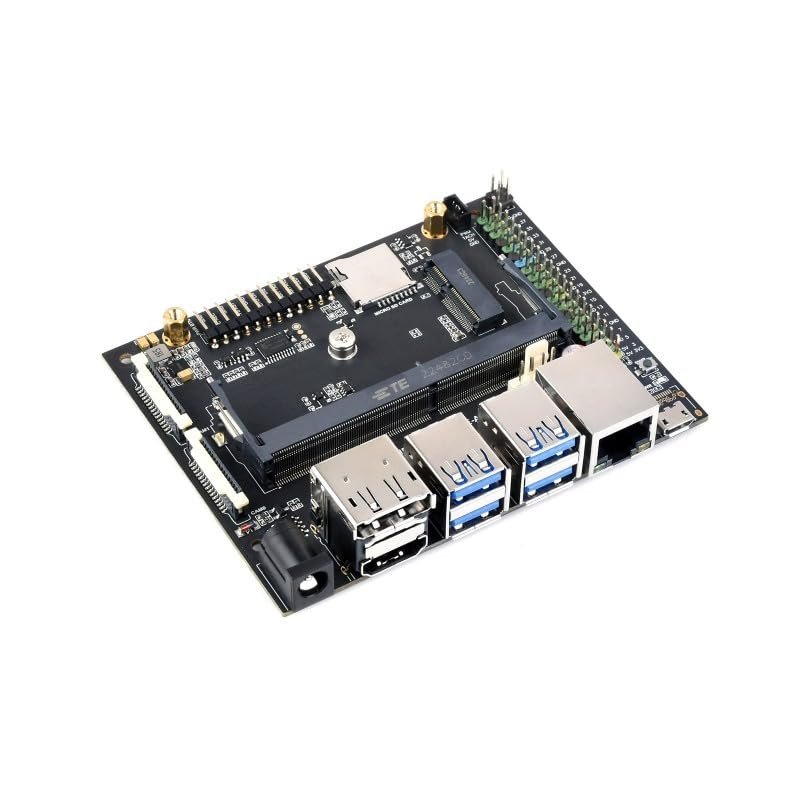

Jetson Nano Development/Expansion Kit Compatible with Both Jetson Nano and Jetson Xavier NX Alternative Solution of B01 Kit Optional Jetson Nano Core Module(Jetson-Nano-DEV-KIT-E)

Description

• JETSON NANO DEV KIT based on AI computers Jetson Nano and Jetson Xavier NX, provides almost the same IOs, size, and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module.
• By utilizing the power of the core module, it is qualified for fields like image classification, object detection, segmentation, speech processing, etc., and can be used in sorts of AI projects.
• JETSON-NANO-DEV-KIT cancels the TF card slot on the Nano core board and adds a 16GB eMMC memory chip, which is stable in reading and writing.
• JETSON-NANO-DEV-KIT not only supports USB flash drive booting but also supports TF card booting as it has integrated a TF card slot on the expansion board. The reading and writing are stable, and it is almost the same as the B01 official core board with a TF card slot.
• The carrier board of JETSON-NANO-LITE-DEV-KIT is basically compatible with the official Jetson Nano 2GB Developer Kit, which is suitable for users who do not require many interfaces of the carrier boards but want the performance of 4GB Nano modules

Jetson Nano Module Parameter
GPU:NVIDIA Maxwell architecture with 128 NVIDIA CUDA cores and 0.5 TFLOPS (FP16)
CPU:Quad-core ARM Cortex-A57 MPCore processor
Memory:
4 GB 64-bit LPDDR4
1600 MHz 25.6 GB/s
Storage:16 GB eMMC 5.1 Flash Storage
Video Encode:
250 MP/s
1 x 4K @ 30 (HEVC)
2 x 1080p @ 60 (HEVC)
4 x 1080p @ 30 (HEVC)
Video Decode:
500 MP/s
1 x 4K @ 60 (HEVC)
2 x 4K @ 30 (HEVC)
4 x 1080p @ 60 (HEVC)
8 x 1080p @ 30 (HEVC)
Camera:12-ch (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
Connectivity:
Wi-Fi requires external chip
10/100/1000 BASE-T Ethernet
Display:EDP 1.4 | DSI (1 x 2) 2 simultaneous
UPHY:1 x 1/2/4 PCIe, 1 x USB 3.0, 3 x USB 2.0
IO:3 x UART, 2 x SPI, 2 x I2S, 4 x I2C, multi GPIO headers

Notice
If you buy the DEV KIT from Waveshare, we have flashed a Jetpack 4.6 OS to the emmc of the Jetson Nano and enabled the SDMM3 (for SD card). If you need to modify the SD card startup, please refer to the manual to modify the startup path.
If you have special requirements for the factory image version, please contact the customer service of the Waveshare shop to communicate and confirm.
If you want to use spi and pwm, you need to reset it.

Package Content
JETSON-NANO-DEV-KIT-E
JETSON-NANO-DEV-KIT (carrier + Nano + heatsink)
IMX219-83 Stereo Camera
FPC 15pin (2PCS)
PH2.0 4PIN wire
Aluminum alloy case kit
Cooling fan
USB cable (~1.2m)
Ethernet cable (~1.5m)
5V 4A power adapter
64GB TF Card
Card reader
