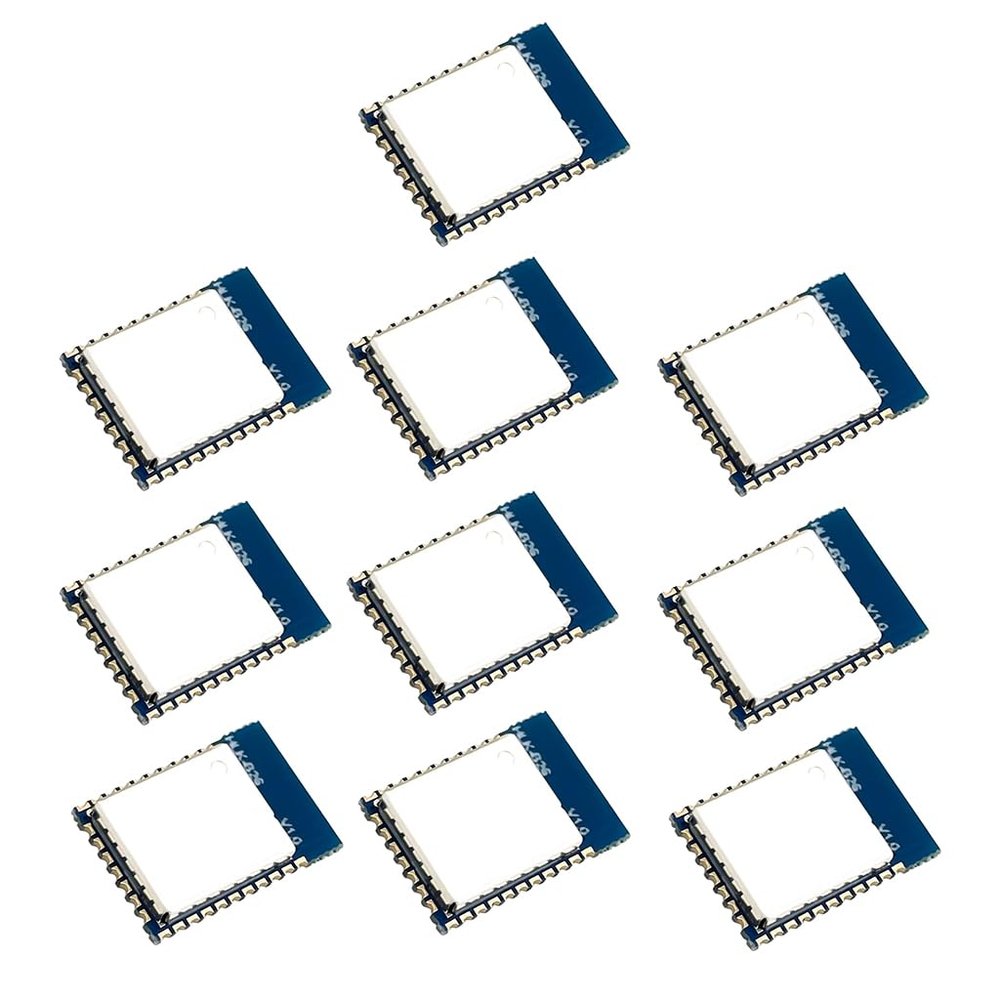

JMT B26 Serial Port Transmission Module Low Power Wireless Module Master Slave Integrated Compatible with Bluetooth 5.0 (10Pcs)

Description

• Low power Compatible-with-Bluetooth serial port transparent module integrated with master and slave/Compatible-with-Bluetooth serial port transparent transmission.
• Adopting a low-power Compatible-with-Bluetooth chip with a main frequency of 96MHz and RISC 32-bit CPU, Complies with BLE-Compatible 5.0 protocol, supports low-power mode, and can achieve microampere power consumption.
• The transmission distance can reach 40-60 meters, and the size is only 14 * 9.5mm.
• Supports Compatible-with-Bluetooth?5.0 protocol for faster transmission speed and longer distances.
• Interface Type: UART/PWM/GPIO/I2C/SPI/ADC. Serial Port Parameters: 9600~921600/data bit 8/stop bit 1.

JMT B26 Serial Port Transmission Module Low Power Wireless Module Master Slave Integrated Compatible with Bluetooth 5.0

Serial Port Transmission Module Features
Low power Compatible-with-Bluetooth serial port transparent module integrated with master and slave/Compatible-with-Bluetooth serial port transparent transmission.

Adopting a low-power Compatible-with-Bluetooth chip with a main frequency of 96MHz and RISC 32-bit CPU, Complies with BLE-Compatible 5.0 protocol, supports low-power mode, and can achieve microampere power consumption.

The transmission distance can reach 40-60 meters, and the size is only 14 * 9.5mm.

Supports Compatible-with-Bluetooth 5.0 protocol for faster transmission speed and longer distances

Compatible-with-Bluetooth parameters:

Compatible-with-Bluetooth specification: B-L-E 5.0

Frequency range: 2.402-2.480GHz

Transmission power: -20dBm~+8dBm adjustable

Receiving sensitivity: -92dbm

Interface type: UART/PWM/GPIO/I2C/SPI/ADC

Reference distance: 40-60m

Hardware parameters:

Serial port parameters: 9600~921600/data bit 8/stop bit 1

Power supply input: DC1.8-3.4V/typical 3.0V

Sleep current:~102.3uA

Working current:~4MA (configurable parameter tuning)

Package size: 14 nine point five 2mm

Antenna type: onboard antenna

Working temperature -40 ~+85
