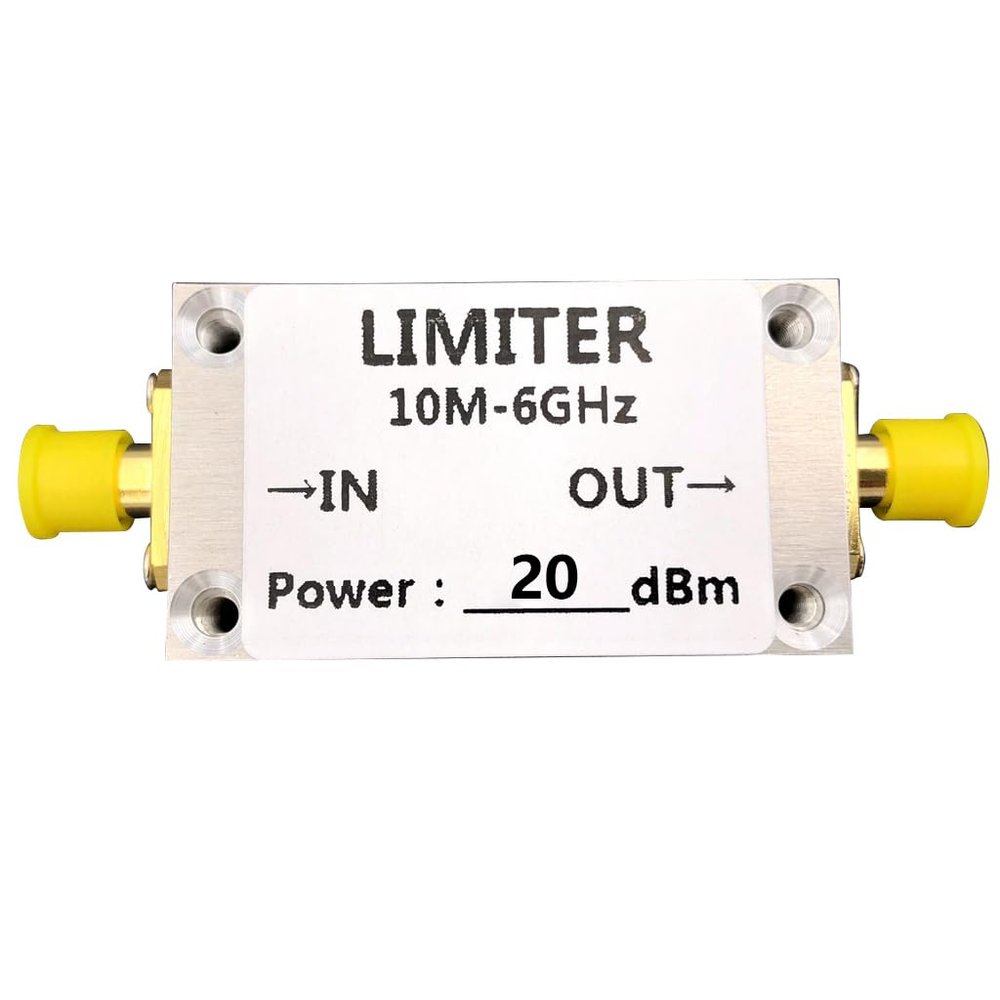

JMT PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec Trum Analysers, Pre-Low Noise Amplifier, SDR Receiver (20dBm with CNC Case)

Description

• RF limiters are used for input protection of low power receiving equipment such as Compatible with spec trum analysers,pre-low noise amplifiers, SDR receivers, etc.
• RF limiters can effectively resist ESD damage. It can also be used for input protection of short-wave receivers.
• Insertion loss: < 0.2dB @1GHz/0dBm, < 2dB @1~3GHz/0dBm, < 3dB @3~6GHz/0dBm, Refer to the measured S21 curve.
• 1dB limit power: < 0dBm/10dBm/20dBm/30dBm/36dBm.
• Impedance: 50 Ohms. Maximum input power: 20dBm.

JMT PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec trum Analysers, Pre-low Noise Amplifier, SDR Receiver

Introduction
RF limiters are used for input protection of low power receiving equipment such as Compatible with spec trum analysers,pre-low noise amplifiers, SDR receivers, etc. They can effectively resist ESD damage. It can also be used for input protection of short-wave receivers.
This product contains a strong aluminium alloy shielding shell, no leakage, no interference,small and easy to use, is the radio frequency, microwave technology experiments of the standing device.

Index parameters
1, Model: Limiter 0dBm-10dBm-20dBm-30dBm-36dBm
2Impedance: 50 Ohms
3Insertion loss: <0.2dB @1GHz/0dBm
<2dB @1~3GHz/0dBm
<3dB @3~6GHz/0dBm
Refer to the measured S21 curve
4Maximum input power: 20dBm
5, 1dB limit power: <0dBm/10dBm/20dBm/30dBm/36dBm
6Interface: SMA
7Dimensions without case: 10 * 25 (mm) without protruding SMA
8, with the shell size - length, width and height: 45 * 25 * 12 (mm) does not include the protruding SMA
Measured S21 insertion loss (0dBm limiter frequency range up to 6GHz)
