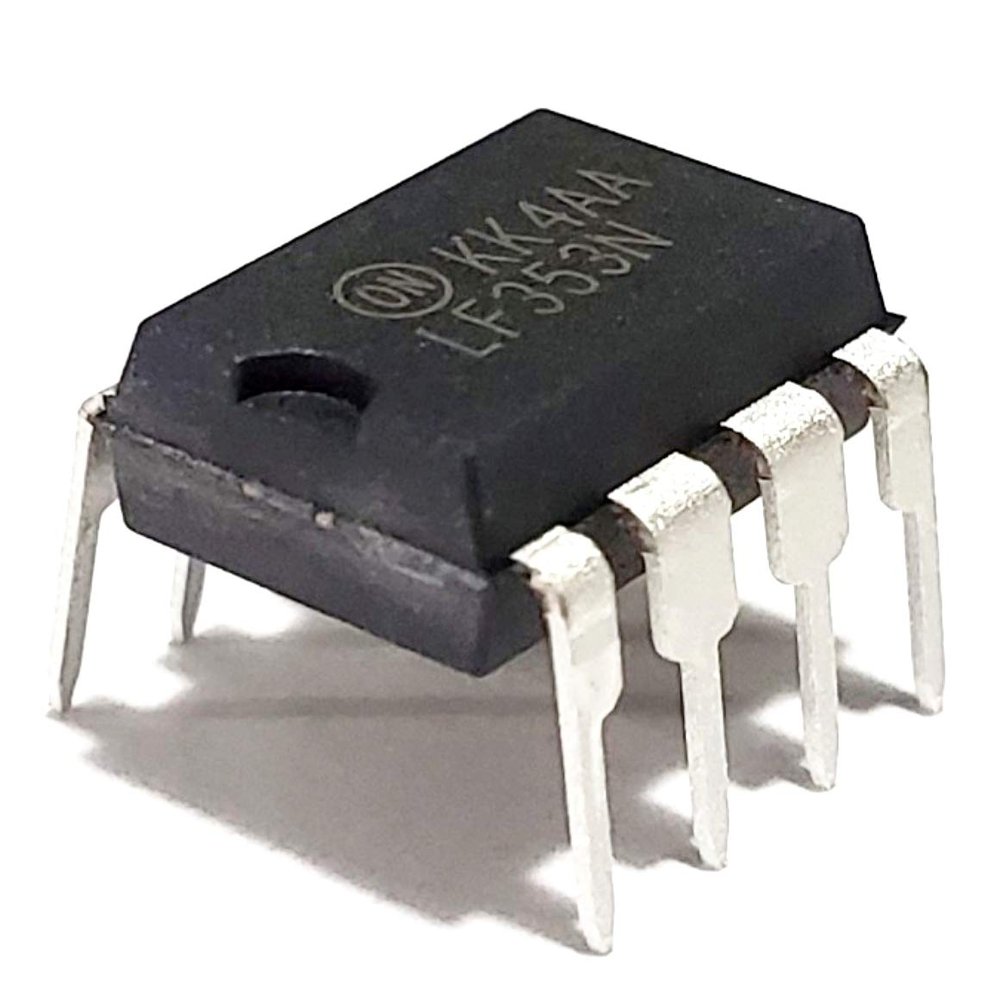

Juried Engineering LF353N LF353 2-Channel Wide Bandwidth JFET Input Operational Amplifier Op Amp Breadboard-Friendly IC DIP-8 (Pack of 5)

Description

• The LF353N devices are high speed, dual JFET input operational amplifiers with an internally trimmed input offset voltage
• Internally Trimmed Offset Voltage: 10 mV, Low Input Bias Current: 50pA, Fast Settling Time to 0.01%: 2 s
• Low Input Noise Voltage: 25 nV/Hz, Low Input Noise Current: 0.01 pA/Hz
• Wide Gain Bandwidth: 4 MHz, High Slew Rate: 13 V/s, Low Total Harmonic Distortion : 0.02%
• Low Supply Current: 3.6 mA, High Input Impedance: 1012, Low 1/f Noise Corner: 50 Hz

The LF353N devices are high speed, dual JFET input operational amplifiers with an internally trimmed input offset voltage. They require low supply current yet maintain a large gain bandwidth product and fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF353-N is pin compatible with the standard LM1558 allowing designers to immediately upgrade the overall performance of existing LM1558 and LM358 designs.

These amplifiers may be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. The devices also exhibit low noise and offset voltage drift.
