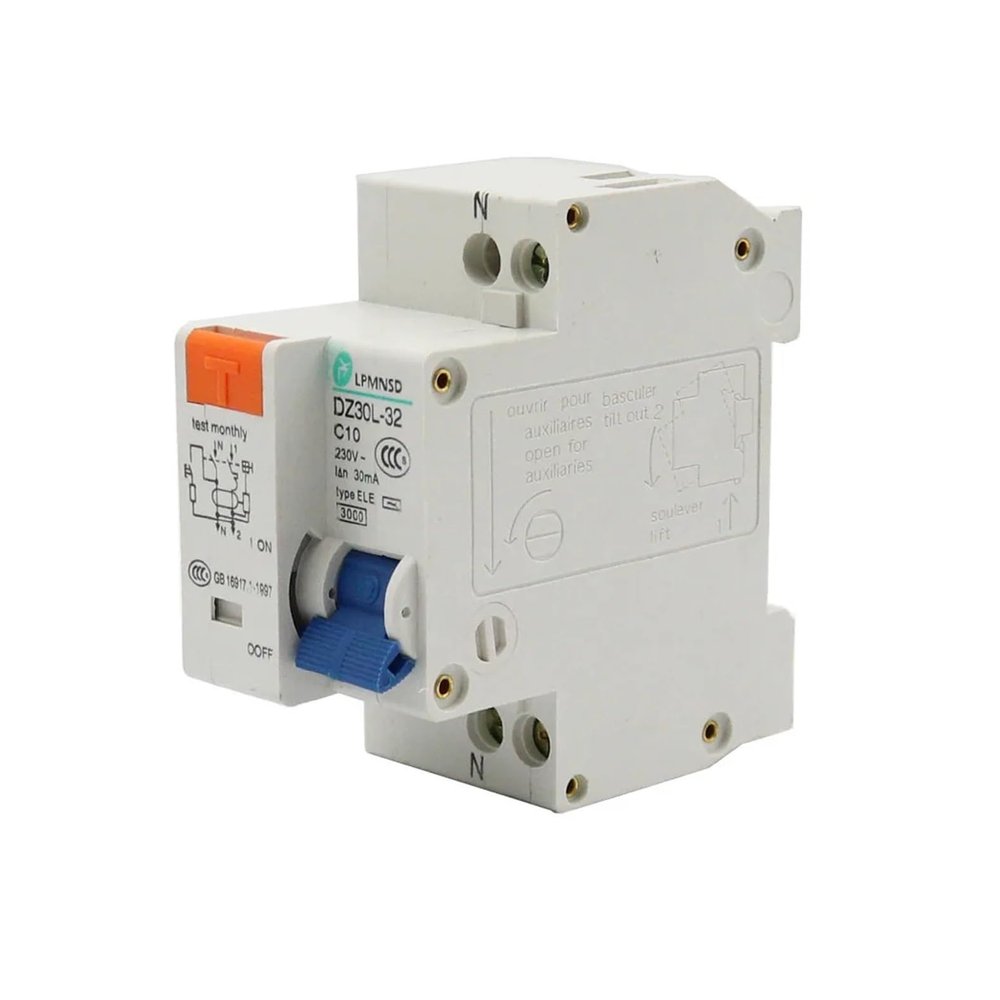

KKFAUS DPNL 1P+N 6A 10A 25A 32A 40A 50A 63A 230V~ 50HZ/60HZ Residual Current Circuit Breaker with Over Current and Leakage Protection (Color : 25A)

Description

• Type: Electronic type
• Pole No.: 1P+N
• Tripping curve: C
• Rated short-circuit capacity: 4.5KA
• Rated Current(A): 6A,10A,16A,20A,25A,32A

Construction and Feature
1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.
2)Contact position indication.
3)Provides protection against indirect contact by human body.
4)Provides complementary protection against direct contact by human body.
5)Effectively protects electric equipment against insulating failure.
6)Equipped with switched neutral and phase pole .
7)Provides protection against over-voltage.
8)Provides comprehensive protection to household and commercial distribution systems.
Technical Data
Type: Electronic type
Pole No.: 1P+N
Tripping curve: C
Rated short-circuit capacity: 4.5KA
Rated Current(A): 6A,10A,16A,20A,25A,32A
Rated Voltage:230V AC
Rated Frequency:50/60Hz
Rated residual operating current(mA): 30
Tripping duration:instantaneous under or equal 0.1s
Electro-mechanical: pillar terminal with clamp.
Terminal Connection Height: H1=16mm ,H2=21mm
Over-votage tripping: 280V5%
Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 .
Installation: On symmetrical DIN rail 35mm, Panel mounting
Accessories
S2 Shunt Tripper
U2+O2 Over-voltage and under-votage tripper.
