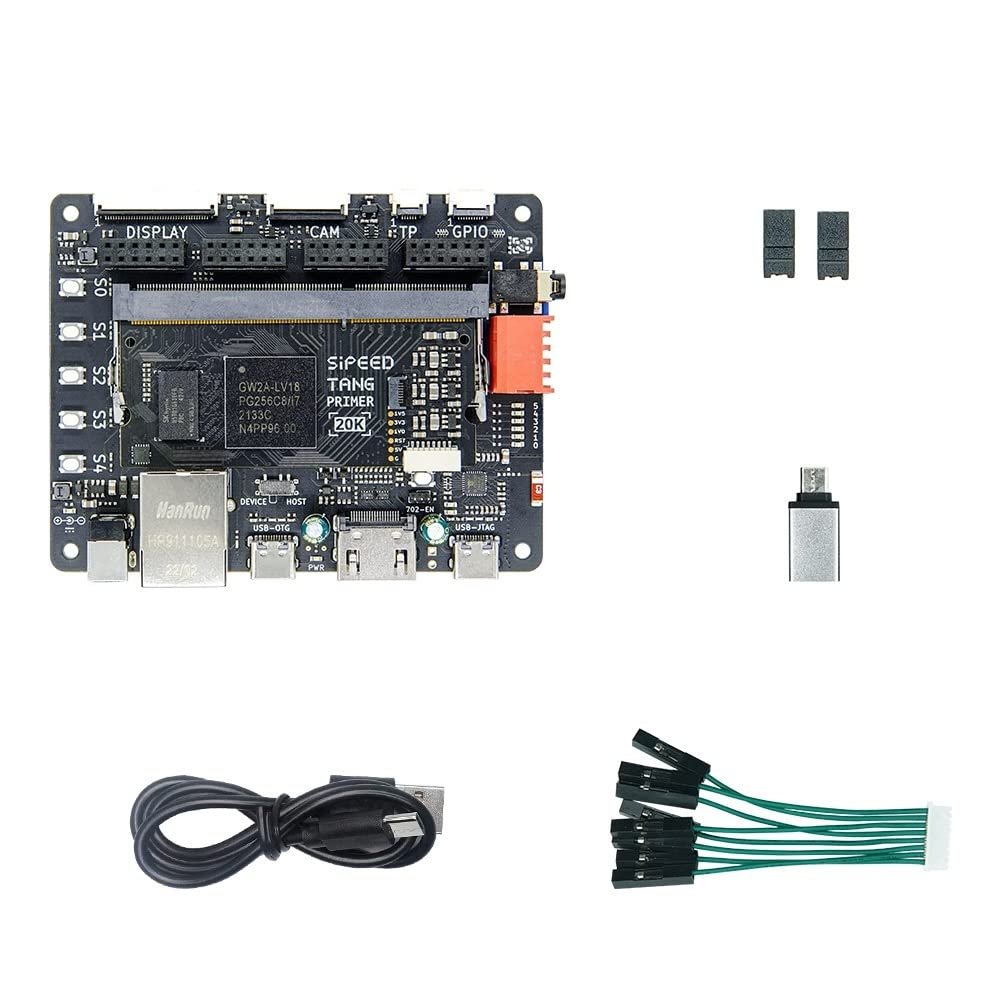

Kocoo Sipeed Tang Primer 20K Gowin GW2A FPGA GoAI Core Board Minimum System (20K Dock Kits)

Description

• Tang Primer 20K is Advanced Cost-effective FPGA, development board, with 20K LUT4, 1Gbit DDR3, 10/10OM ETH and other features, suitable for fpga learning, project development.
• Tang Primer 20K Core Module board is sodimm package,uses GW2A-LV18PG256C8I7 as the main chip.Users could use this CM board for rapiddevelopment and verify, and it's suitable for high-speedand low-cost situations .
• Tang Primer 20K Dock is equipped with a wealth of pe-ripheral resources,such as onboard USB-JTAG & UARTperipheral , Ethernet PHY and RJ45 connector,USB2.0PHYHDMI output connector,Audio output circuit and3.5mm connectorRGB screen connector,DVP cameraconnector
• Tang Primer 20K Lite ext-board routes so many lOs todouble row pin headers and PMOD interfaces, with whichusers could easily connect other peripheral modules or cir-cuits for secondary development.
• Comapred with other FPGA IDE, the IDE which is used to developTang Primer 20K is really small, the hard disk capacity occupiedafter installation does not exceed 1G.And this IDE is really fast,from which users will exclaim the speed of Synthesize andPlase&Route can be so fast.

Item Dock Lite

Quantity Supplementary Description Quantity Supplementary Description

RGB Interface 1 RGB565 40P FPC Connector

DVP Interface 1 24P FPC Connector

Microphone Array Interface 1 10P FPC Connector

Touch Interface 1 4P FPC Connector

PMOD Interface 4 4

3.5mm headphone jack 1 Use LPA4809MSF driver

Dipswitch 1 5P Dipswitch

Slide switch 1 Switches on-board USB function 2 User-defined function

Type-C interface USB-JTAG & UART 1 Onboard BL702 chip used to

download bitstreams and provide serial port functionality

Custom USB 1 USB3317 chip with slide switch

Customize this USB interface function

Wireless Antenna 1 Wireless function using the BL702 chip

Pushbuttons 6 One to burn in the BL702,

Five remaining user-defined functions 2

LED 6

HDMI interface 1

Ethernet interface 1 TL8201F chip for Ethernet function
