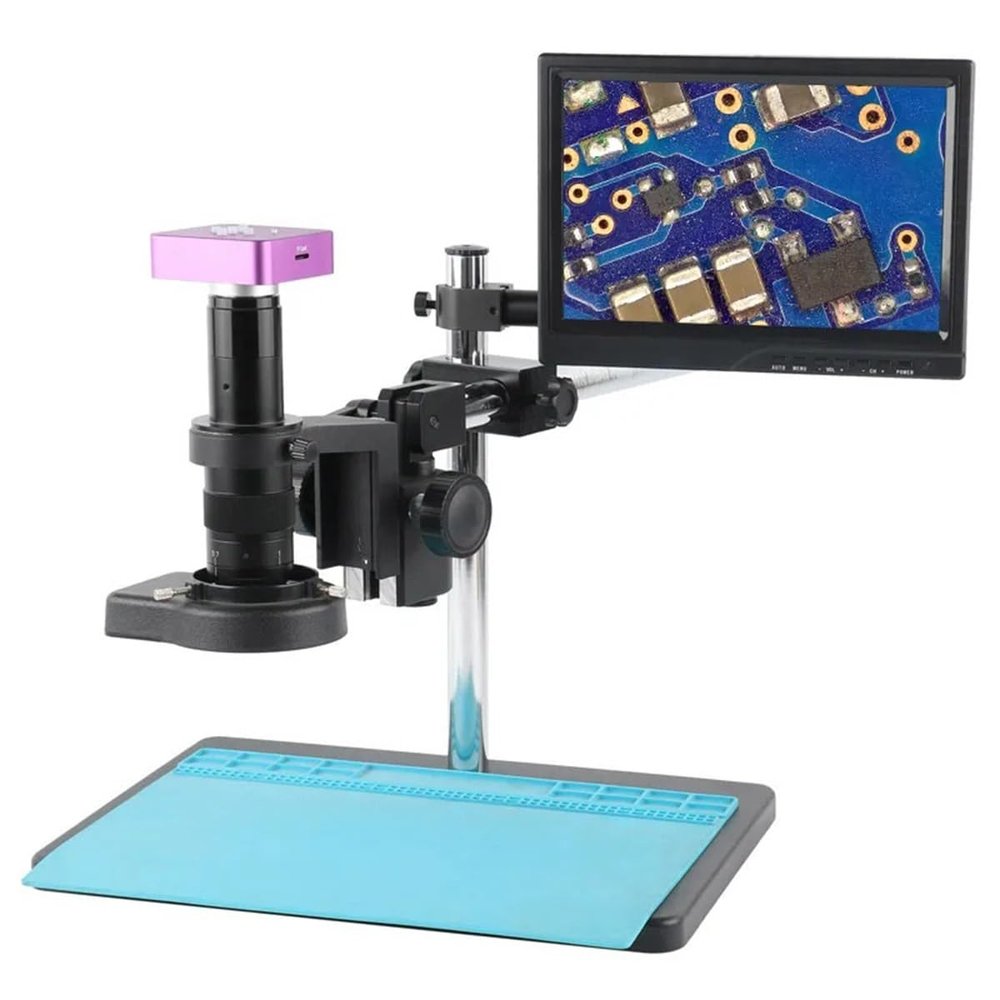

Lab Microscope Slides 1080P 2K 51MP HDMI USB Electronic Digital Industrial 120X 180X 300X 500X C Mount Video Microscope Camera for Phone PCB Repair Microscope Parts(D,500X)

Description

• Support for digital zoom and support for automatic / manual brightness control.
• 51MP industrial microscope camera provides with clear observing and viewing. A variety of options are available, please refer to the pictures, specific product options are based on your choice.
• Easy to attach, convenient to use,allows bright and clear image.
• We is committed to pursue highest quality and offer timely customer service. We are dedicated to providing you with 100% satisfaction solution to address your any concern.

Feature:
1. Support for digital zoom and support for automatic / manual brightness control.
2. 51MP industrial microscope camera provides with clear observing and viewing.
3. High quality metal housing is durable in use and has a long service life.
4. High definition displays images more clearly, which is easy to operate and use.
5. Industrial microscope camera, suitable for mobile phone repairing and welding.

Specification:
Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
Image Format: jpg
Image Resolution: 51MP
Video Format: MP4 (for Memory Card)
Video Recorder: 1080P at 60FPS
High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS
USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS
White Balance: Automatic / Manual
Light: Automatic / Manual
Exposure: Automatic / Manual, Value Adjustable
Color: Color
Direction: Left / Right, Up / Down
Freeze: Support
OSD: English / Chinese / French / Spanish / Japanese / German
Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position
Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
Effective Pixels: 51MP
Pixels Size: 1.335m x 1.335m
Frame Rate: 60fps
Definition: Full High Definition
Housing: Metal
Lens: C/CS
Video Format: MOV
Digital Zoom: Support
Brightness Control: Automatic / Manual
Color: R / G / B Adjustable
Film and Records: Support
Cross Cursor: Support multi-color, adjustable size
Horizontal and Vertical Lines:
Support multi-color, 5 horizontal / vertical lines, movable
Different colors, 5 horizontal lines, 5 vertical lines, any position
Memory Card Interface: up to 64G (Not Included)
High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)
USB Interface: Standard USB2.0 Interface (Type B)
Input V: DC 12V
120x Feature:
Working distance: 90mm-180mm
Zoom C-mount Lens
0.35X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 142mm(L) * 50mm(DIA)
180x Fature:
Working distance: 90mm-150mm
Zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 168mm(L) * 50mm(DIA)
300x Feature:
Working distance: 90mm-100mm
Zoom c-mount Lens
1X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 245mm(L) * 50mm(DIA)
200X Working distance:100mm -175mm
500X Working distance:90mm -110mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display)
Eyepiece lens adapter:0.4X/1X
Fixed position:50mm
Locking:0.7X - 5X Locking
Thread:42mm
Auxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)
Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm

Package incluede:
1 x 51MP Microscope Camera
1 x Power Supply
1 x USB Cable
1 x CD
1 x Remote Control
1 x 120X / 180X / 300X / 200X / 500X C-MOUNT Lens
1 x 144 LED Adjustable Microscope Ring Light
1 x Camera Big Stand
1 x High temperature resistant working pad
(optional)
1 x Boom Stand
1 x 10.1" LCD
Note:

1.Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
