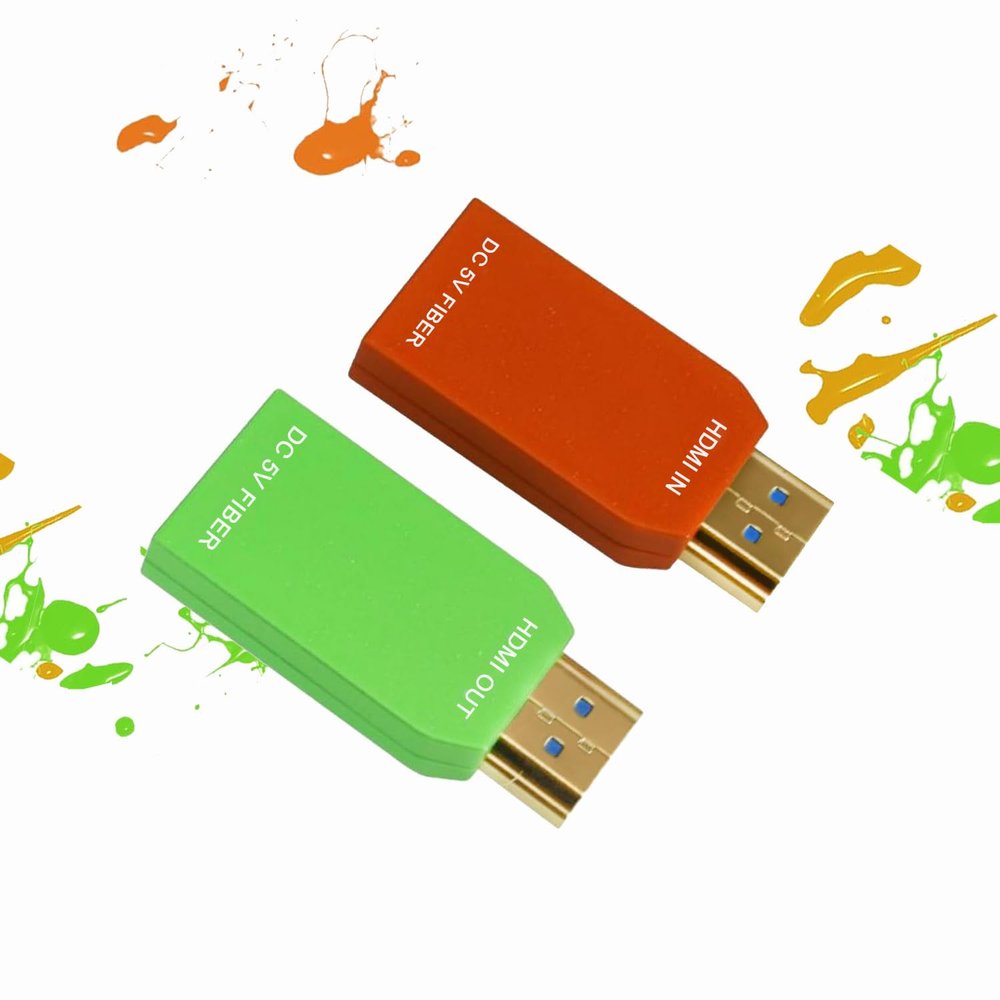

Lcantve Mini 8K@60Hz HDMI2.1 Fiber Extender, Uncompressed HDMI Video Fiber Extender, Up to 100m Over OM5 Multi-Mode LC Fiber, 48Gbps Bandwidth

Description

• [High-definition Video Transmission]It supports 8K@60Hz resolution, a single 48Gb/s serial data stream and WDM technology, to realize high-definition audio and video transmission.
• [Good Anti-interference Performance]It transmits TMDS signal through Multi-mode Fiber to ensure stability, and up to 100m (328ft).
• [High Quality and Trustworthy]The 8K fiber extender supports EDID, HDCP, CEC transparent transmission.
• [USB Power Input]The 8K fiber converter uses USB Type-C connector for 5V DC power input, having low power consumption.
• [Plug and Play]It supports plug and play. No settings or adjustments necessary.

Overview:
The mini 8K fiber converter supports 8K@60Hz resolution. Due to no copper conductor present, It can transfer transmit uncompressed lossless HDMI2.1 signal over OM5 Multi-mode optical fiber up to 100m. And It has macro size, only 2.24 x 0.6 x 0.55 in, 0.22 lb.

Futures:
Supports HDMI Video up to 8K/60Hz
Support EDID, HDCP, CEC transparent transmission
No Settings or Adjustments Necessary
Adopt WDM technology to realize high-definition audio and video transmission through a single OM5 multi-mode optical fiber
Supports up to 100m Transmission Distance with OM5 multimode fiber
Hot-Pluggable
Standard HDMI2.1 Connector
Integrated USB Connector for Power
Low power consumption
RX module (Display side) doesnt need external power when signal source powering.
The TMDS signal is transmitted through a multimode optical fiber, which has good anti-interference performance
Uses Small, Reliable LC Optical Connector

Specification:
Input Signals: HDMI
Signal Support: HDMI 2.1 HDMI format standard
Video Support: 8K@60Hz/4K@120Hz/1080p/1080i/720p, Up to 7680x4320@60Hz
Audio Support: Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications: Color space 444, 420, 400
Fiber Connector: 1 x LC Connector
Transmission Rate: 48Gbps
Transmission Distance: OM5 Multi Mode
Operating Temperature: -20C to + 70C
Storage Temperature: -40C to + 85C
Humidity: 90% RH (non-condensing)
Safety Approvals: CE, RoHS, FCC
Dimension (WxDxH): 2.24 x 0.6 x 0.55 in (57x16x14mm)
Weight: 0.1 kg / 0.22 lb
Operation Voltage: 5VDC
Operation Current: TX: 150mA
Power Consumption TX: <800mW; RX: <400mW

Package:
1* Mini 8K HDMI Fiber Converter Transmitter
1* Mini 8K HDMI Fiber Converter Receiver
2* USB-C Date Line
1* User Manual
