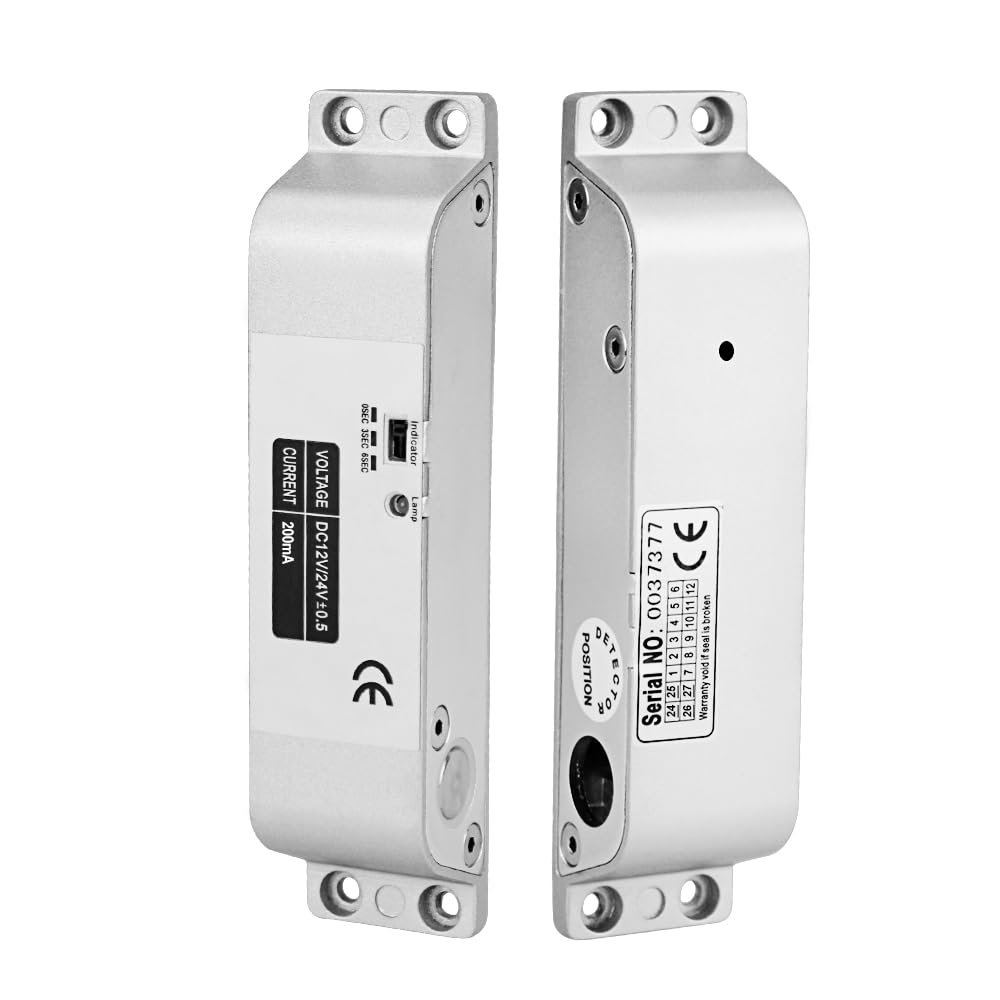

LIBO Smart Home Electric Drop Bolt Lock DC 12V Fail Safe NC Mode Electronic Door Lock for Access Control Security System with Time Delay

Description

• 1, NC Mode: Fail-safe type, unlocked when power off, locked when power on.
• 2, Installation: unfold install (surface mounted).
• 3, With time delay: 0s, 3s, 6s
• 4, Wires: red to "NC", black to "GND". yellow line and white line are useless, don't need to be connected.
• 5, Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.

Features:
1. NC mode - (locked while supplied with power), fail safe mode.
2. Installation: unfold install (surface mounted).
3. Material: Aluminum alloy material.
4. With time delay: 0s, 3s, 6s.
5. Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6. Surface scrub treatment, durable and wear-resistant.
7. Lock body use hexagon screw, fixed panel, anti-theft and more security.

Specifications:
Model Name: L-XXS
Dimensions: 150x34x28mm
Lock core: The diameter 12.5MM, extending the length of 15MM
Working Voltage: DC12V
Working current: Start state 1.2A Persistent state 120mA
Operating Mode: NC (locked while supplied with power), fail safe mode
Wires: red to "NC", black to "GND".
Warm Note: yellow line and white line are useless, don't need to be connected.

Package Including:
1 x Electric Drop Bolt Lock
1 x Bag of installation kit
