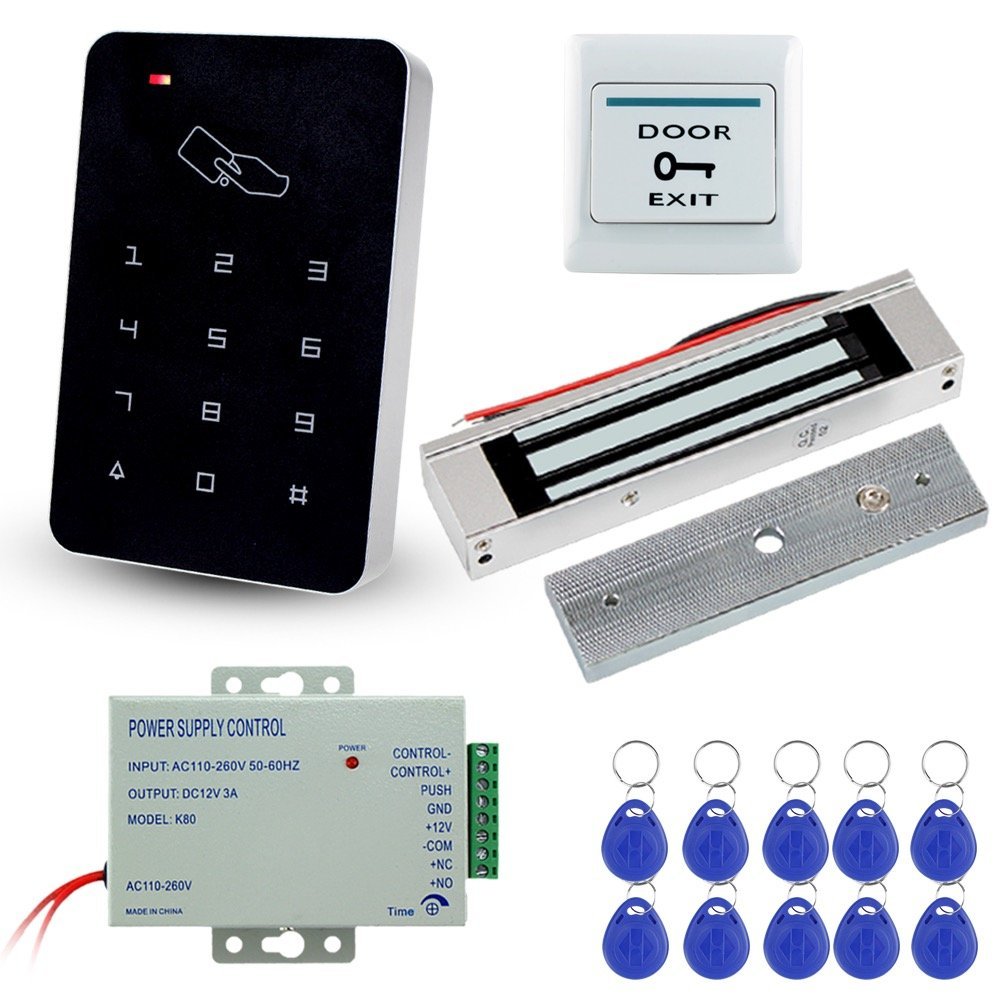

LIBO Stand-Alone Door Access Control System Kit Set with 180kg/350lbs Electric Magnetic Lock, DC12V/3A Power Supply, Door Exit Release Button, 10pcs RFID EM ID Keyfobs

Description

• A full access control system for single door, including a access controller, power supply, electric lock and door release button.
• Support 1000 users, support RFID card, password, card+password, total three open door mode.
• Full programming from the keypad, doesn't need to connect on the computer, can works alone.
• Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
• Applications: Home/ hotel/ office/ apartment/ factory, etc.

T22 Stand-along Access Control Keypad
1.Voltage: 12VDC, Current 120mA
2.User capacity: 1000 users
3.Proximity Reader Frequency: 125KHz
4.Compatible Cards: EM or EM compatible card
5.External Reader: Not support
6.Reading Distance: 3-10cm
7.Support Card, password, Card + password, total three open door mode.
8.Full programming from the keypad, doesn't need to connect on the computer, can works alone.
9. Dimension: 117*75*22mm, Material: plastic

K80 Power Supply
1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A
2.Set NC / NO outputs, can control various types of electric locks.
3.Automatic protection function: It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
4.Dimension:100*65*32mm, Material: metal

Electric Magnetic Lock
1. Working Voltage: DC12V, Working Current: 380-500mA
2.Holding Force: 180kg/350lbs.
3.NC Mode: Fail-safe type, unlocked when power off, locked when power on.
4. Features: unfold install, Built-in voltage spike suppressor, waterproof, without LED working indicator light.
5.Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
6.Dimensions: 170x23x39mm / 130x33x9.3mm

Door Exit Button
1.Dimensions: 86*86*8mm
2.Material: fireproof ABS plastic
3.Power Input: DC 12V
4.Output Contact: NO / COM

RFID Keyfobs
1.Frequency: 125KHz, EM ID type
2.Chip: TK4100
3.Color: blue
4. Read Only
5.Quantity: 10pcs

Package Including
1 x Access Control Keypad
1 x Power Supply
1 x Electric Magnetic Lock
1 x Door Exit Button
10 x RFID Keyfobs
1 x User Manual
