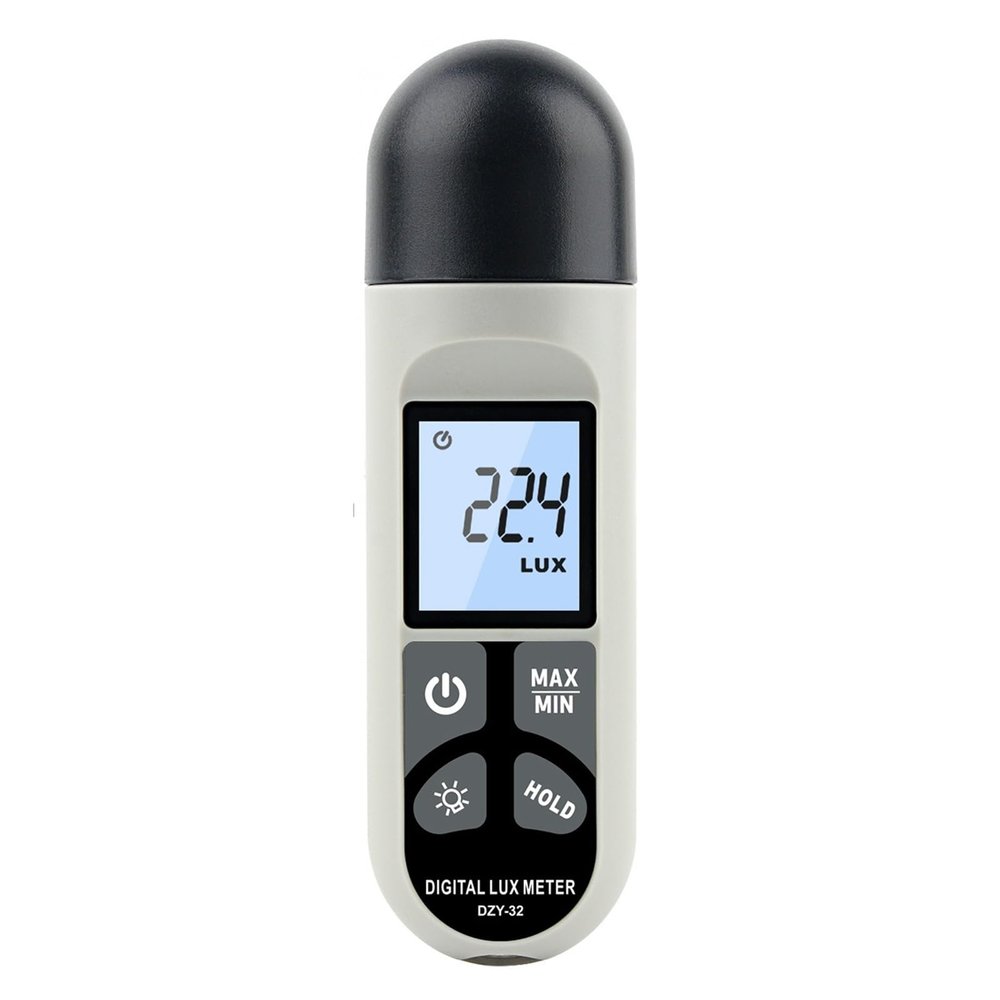

LIBODD Digital Lux Meter 0.1-200,000 Lux Digital LCD Pocket Light Meter Lux/FC Measure Tester Illuminometer Sensor Photometer

Description

• Easy to Use: Simple design, intuitive operation, fast measurement results.
• Accurate Measurement: Precisely calibrated to accurately assess lighting conditions.
• Practical and Reliable: Can be used in most environments to meet the user's daily measurement needs.
• Wide range of applications: Wide range of applications, suitable for a variety of occasions, is an indispensable tool in your toolbox.
• Portable and durable: lightweight design, easy to carry, suitable for use in different places, can withstand a variety of working conditions.

Measurement Instructions.
1.Remove the protective cap of the unit.
2.Power ON the Instrument.
3.Select the measurement unit ( Lux / Fc ) ,Choose yourneeded mode ( normal / max / min modes for selecting ).
4.Make the sensor vertically face the light source.Getthe reading
5.Power OFF the instrument , cover the cap.
Buttons' instructions:
Power Button : Power ON / OFF
MAX / MIN Button:
Short press for changing mode : normal / max / min modes
Back Light Button :Short press for choose Lux or Fc , long press for back lightswitching .
Hold Button :
Short press for holding the LCD reading
Auto Power OFF :
This instrument will be Auto Power OFF if there is no any button pressing in 10 minutes . This design is for saving battery power consumption
Battery replacement :
When the low batery icon appears on the display , replacethe battery as soon as practical
1.Remove the rear battery compartment cover
2.Replace one 9V battery .
3.Cover the compartment door
Care and Maintenance :
When the instrument is not in use store theinstrumentin a stable,dust - free environment out of direct sunlight. Remove the battery from the instrument if it is to bestored for periods of more than one month,or when thelow battery power symbol appears on the display
Specifications :
1.Large LCD characters displayo
2.Range : 0 . 1-200 , 000LUX , 0 . 01-20 , 000FCO
3.Resolution : 0 . 1LUX / 0 . 01FCe
4.Accuracy : + 4%
5.Measurement speed : 2 times / seconde
6.Units : Lux FcO
7.Hold functionO
8.Auto range
9.Auto Power OFF : After approx 10 minutes
10.Power Supply : One 9V battery
11.Low power of battery detecting
12.Operating Environment : 0 to 50C , 10 % -90 % RH
13.Dimensions : 40.5 x40 . 5x138mm
14.Weight : 68g
illuminance standard reference table
1.30-75 lux
Ware House , Garage , DarkroomLounge
2.75-150 lux
Corridor , Toilet , Locker
