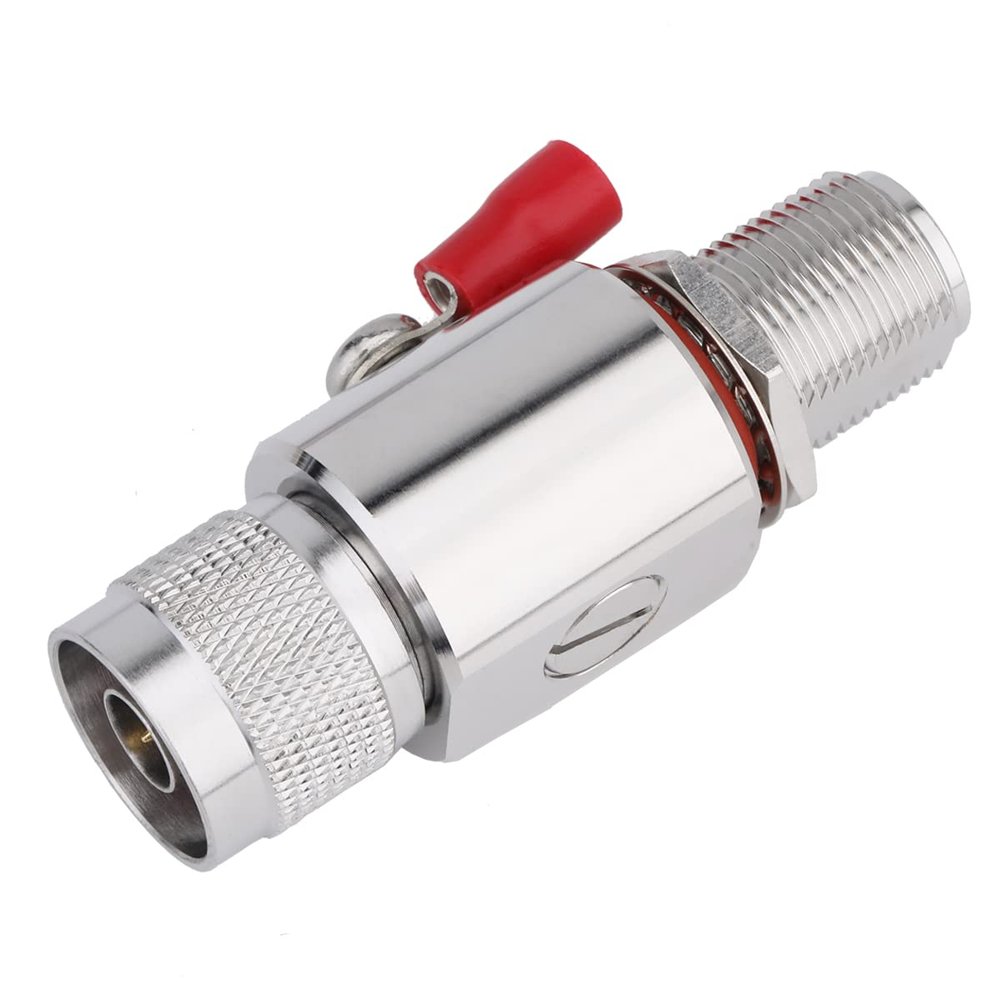

Riotaxy Lightning Arrestor N Male to Female Bulkhead 50 Ohm 0-3GHz with 90V Gas Tube Lightning Arrester

Description

• 1.With N type male to female Connectors 50 ohm , broad bandwidth DC-3 GHz Covers 2G 3G and 4G LTE Cellular , Attenuation less than 0.2 dB / VSWR less than 1.2
• 2.50 Ohms Compatible with 50 Ohm Cellular Boosters, CATV, Satellite TV, Protects signal boosters from lightning strikes, Requires additional ground cable
• 3.It has a replaceable Gas Discharge Element with High Surge Power Capability and Bi-directional Protection ( 90V Gas tube)
• 4.DC Pass for Remote Powering of Amplifiers and LNA's
• 5.Lightning protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection

It is a high-performance 50 Ohm coaxial N-Type Lightning Protection that operates over the frequency range of DC-3 GHz.
It is ideal for protecting 50 Ohm 2G 3G 4G LTE Cell Boosters and Antennas, as well as 900MHz and 2.4GHz WiFi Access Points and Routers.
1.Materials & Plated:
Body brass nickel plated,Teflon(PTFE) Insulator for a reliable signal every time
Connectors: N-Male to N-Female 50 ohm
RoHS compliant
2.Electricail Characteristics
Contact Resistance:Center conductor 1m, Outer conductor 1m
Max Power:50W Insulation Resistance : 5000M Durability : 500 cycles
Temperature range: -40C to +85 C
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR less than 1.2
3.Package include:
1 piece surge protector
4. Protects signal boosters from lightning strikes
Prevent a lightning strike from destroying your electrical system.
The 50 ohm Arrester with N Male to Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The arrestor safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
They can also be installed near the antenna for additional protection.
