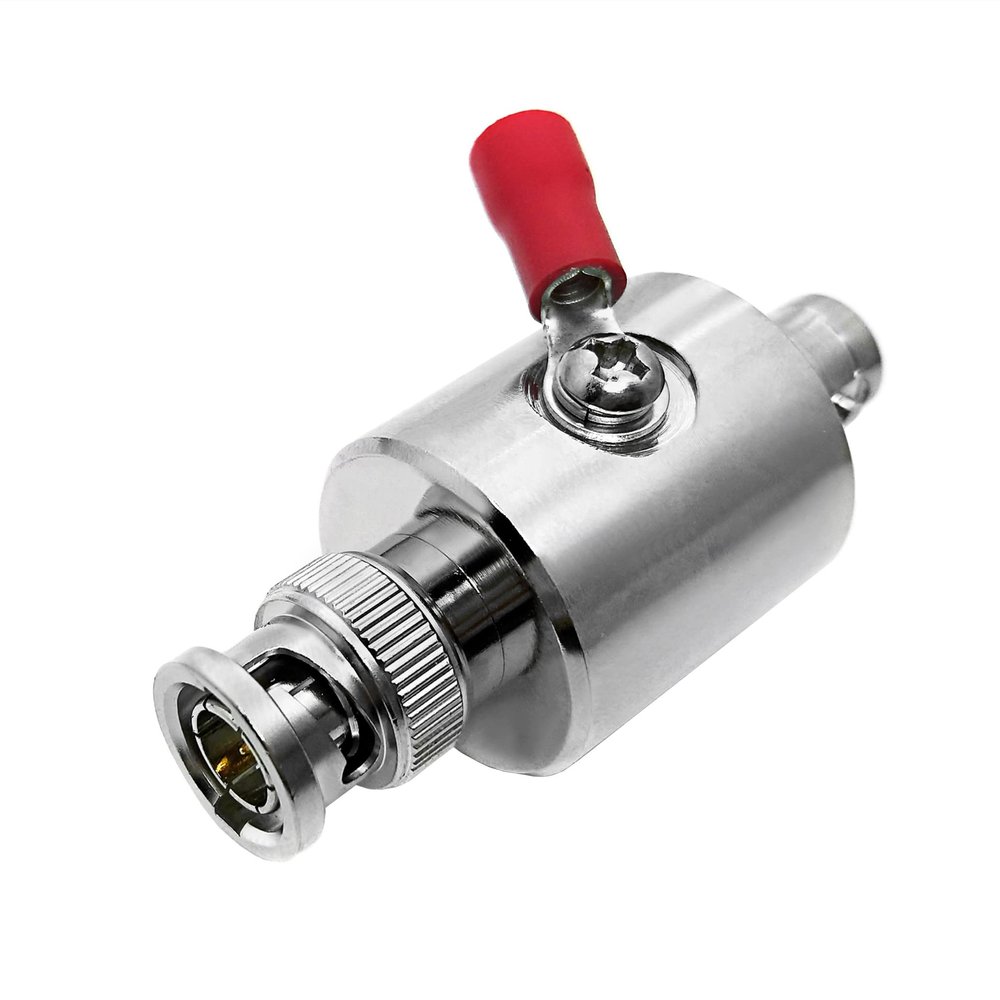

Lightning Protector 75 Ohm BNC Male to Female DC-3GHZ 90V Gas Tube Discharge Surge Arrester

Description

• Reliable Wide-band Performance (DC ~ 3GHz) ,Lightning arrestor 75 Ohm ,Bi-Directional Protection (BNC-Male / BNC-Female Connectors) Outdoor Mountable - High Quality Construction
• Lightning arrester protects CCTV Equipment.Protects 900MHz, 2.4GHz & 5GHz WiFi Outdoor Antennas,Protects 50 Ohm 3G, 4G, LTE Cellular Boosters and Amplifiers
• Lightning surge protector BNC male to female is very Low RF Insertion Loss (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through
• Pack: one piece Ethernet lightning arrestor,replaceable 90V Gas Discharge Tube with Multi-Strike Capability Shunts Damaging Surges,Transients,and Lightning Strikes to Ground
• BNC connector lightning arrestor Connect to Antenna Coax Feedline and Earth Ground

Coaxial Lightning Arrester Surge Protector BNC Male to BNC Female 75 Ohm DC-3Ghz.
It is a coaxial BNC to BNC Surge Protector that operates over the frequency range of 0-3GHz.
It uses a gas discharge tube to protect connected equipment against transients and surges caused by lightning strikes.
It features standard 75 Ohm BNC-Male to BNC-Female coaxial connectors.
Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded.

Electrical Specifications:
Input Impedance: 75
Frequency Range: DC - 3GHz
Durability: 500 cycles
VSWR: <1.3:1
Insertion Loss: <0.4dB
Breakdown Voltage: 90 V

Mechanical & Environmental:
Connector Types: BNC-Male to BNC-Female Connector
Body Material: Brass nickel plated
PinBody brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: -55 to +155
Package: 1 x BNC Coax Lightning Arrestor Surge Protector BNC-Male to BNC-Female 75Ohm DC-3Ghz( with 90V gas discharge element )
