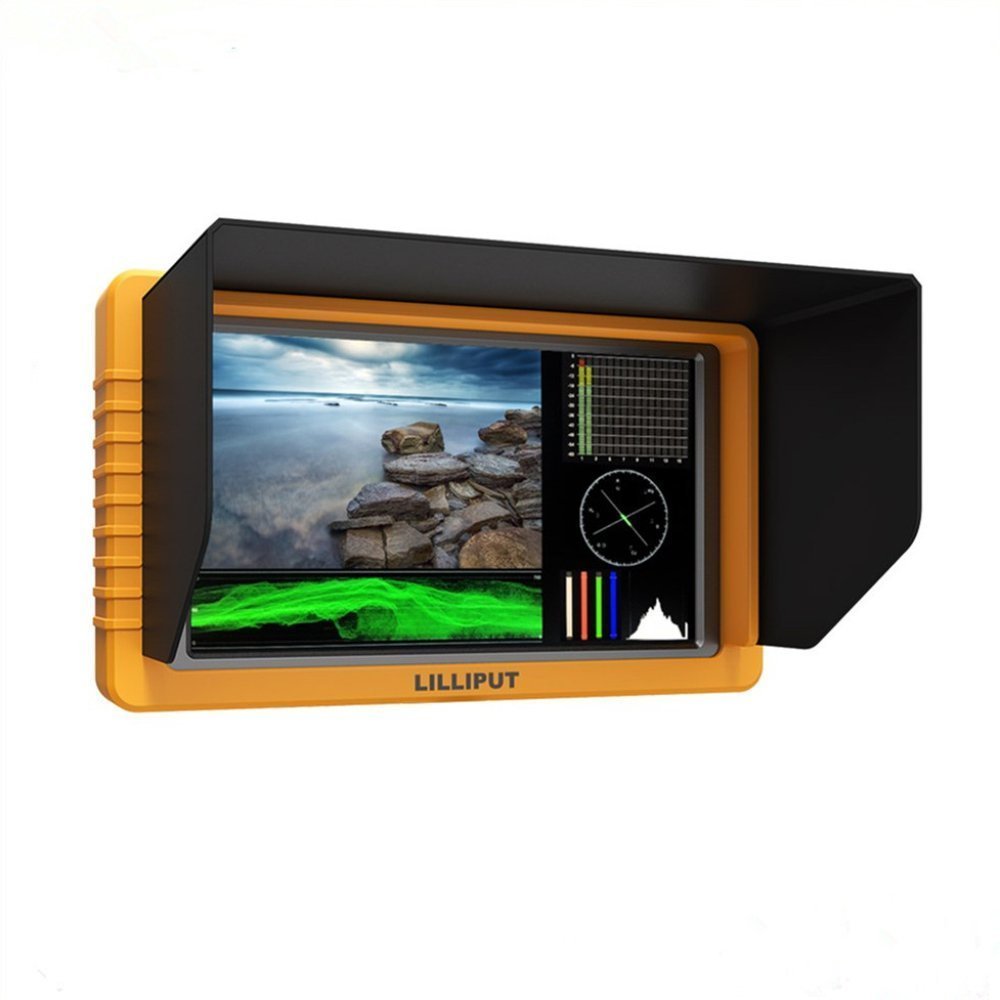

LILLIPUT Field Monitor Q5 5.5" FHD 1920x1080 SDI and HDMI Cross Conversion Camera-top Monitor IPS Metal Housing Screen for Camera Camcorder DSLR (5.5 inch)

Description

Size:5.5 inch Q5
Lilliput 5.5" Q5 camera-top monitor provides 1920x1080 full HD resolution (401ppi). It features with SDI & HDMI cross conversion and integrates the column(YRGP peak), time code, waveform PIP mode into field monitor. The metal housing with silicon rubber case can make a better protection. It's also convenient for applications in a complex outdoor environment when accompanying with sunshade.
Features:
Support SDI and HDMI cross conversion.
Integrate the column (YRGB peak), time code, waveform, vectorscope & audio level meter into field monitor.
Thinner (20mm) with a firm metal housing provide a better protection. 5.5" 16:9 IPS panel with 1920x1080 full HD resolution (401ppi) for precise colors.
450cd/m2 high brightness and 1000:1 high contrast.
Specifications:
Display Screen: 5.5" IPS 8bits.
Physical Resolution: 1920x1080 (401ppi).
Aspect Ratio: 16:9.
Brightness:450cd/m2.
Contrast: 1000:1.
Viewing angle: 160/160(H/V).
Current: 1A.
Input voltage: DC7-24V.
Input /output: 3G-SDI, HDMI.
Battery plate: F970 / LP-E6
Power consumption: 12W.
Working temperature: -20 ~ 60.
Storage temperature: -30 ~ 70.
Dimension: approx. 154.5x90x20 mm/ 6.1x3.5x0.8".
Net weight: approx. 320g.
Color: Red.
Package Included:
1 x Q5 Monitor
1 x Orange color Folding Sunshade Cover
1 x HDMI A/C Cable
1 x Shoe Mount
1 x Battery Plate(F970 / LP-E6)
1 x 12V/1.5A DC adapter
1 x Manual
