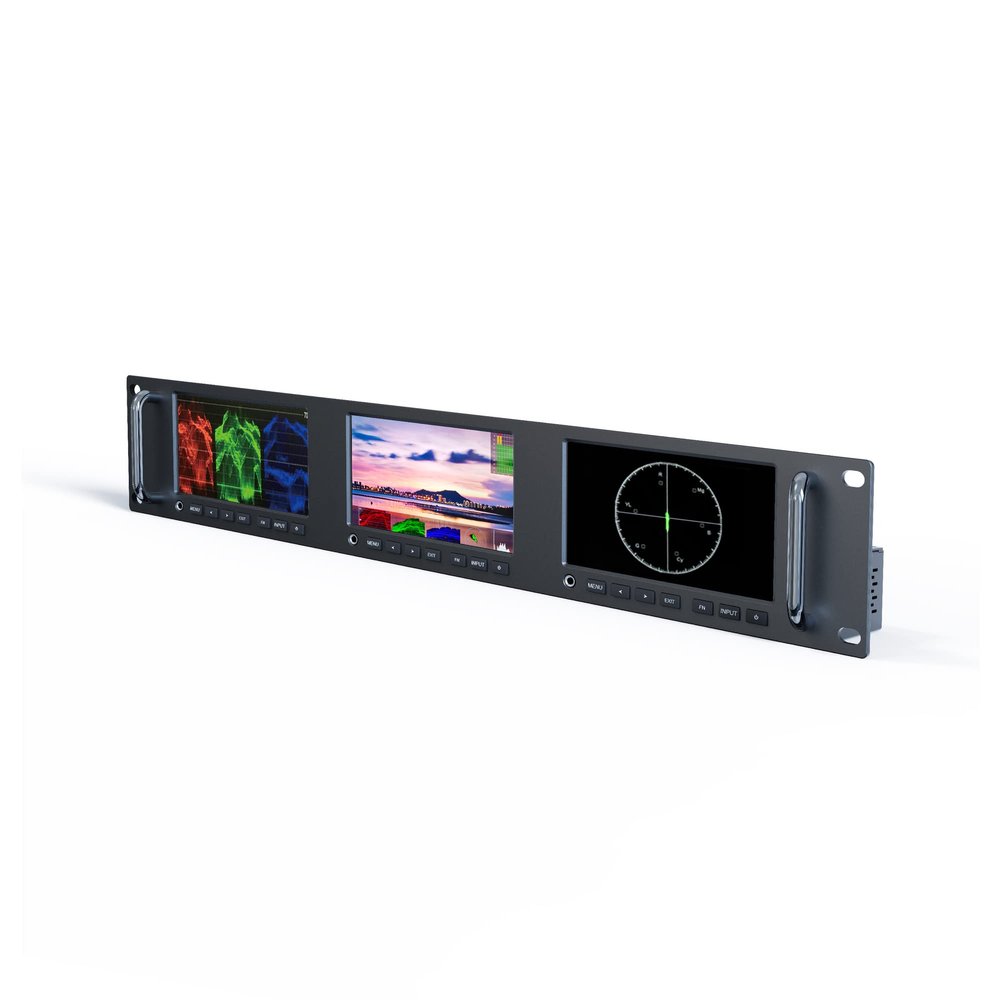

LILLIPUT RM-503S 3 X 5 inch Full HD 2RU Rack Mount Monitor 1920x1080 HDMI 2.0, 3G-SDI Input and Output with Waveform and Vector Functions

Description

• RM-503S _ 5 inch Full HD 2RU Rack Mount Monito
• Rack mount monitor for broadcast & live streaming.Application for video wall & broadcast trucks.
• It supports: HDMI 2.0, 3G-SDI input and output Custom multiple waveform modes; HDR,3D-LUT Wide color gamut Native,SMPTE C, Rec709, EBU, original Comparison mode; Multiple color temperature modes False color,aspect,time code, color bar,marker, peaking
• Model No.:RM-503S Display:5 ,1920x1080 Input:3G-SDI, HDMI 2.0, LAN Output:3G-SDI, HDMI 2.0 Feature:Rack mount, Easy Remote Control,98% DCI-P3-

LILLIPUT RM-503S 3 X 5 inch Full HD 2RU Rack Mount Monitor 1920x1080 HDMI 2.0, 3G-SDI Input and Output with Waveform and Vector Functions
Support HDMI 2.0, 3G-SDI input and output, the output loop signal can support up to 4K Support custom multiple waveform modes, HDR function supports off/ST2084 300/ST 2084 1000/ST 2084 10000/HLG.
Wide color gamut Native,SMPTE C, Rec709, EBU, original
Comparison mode: can import color space, HDR/Gamma, camera Log to the right image. Special Features: False-color, Aspect mark, Aspect Display, Time code (LTC, VITC), Color bar mode (100%, 75%, Off), Marker Color (red, green, blue, black and white), Peaking Color: Red, Green, Blue, White, and Black are optional.
Rack mount monitor for broadcast & live streaming.Application for video wall & broadcast trucks.
Display
Size: 35
Resolution: 19201080
Brightness: 450cd/m
Aspect ratio: 16:9
Contrast: 1000:1
Viewing Angle: 160/160(H/V)
Color Space: 98% DCI-P3
LUT Support: 3D-LUT (.cube format)
Video Input
3G SDI: 3
HDMI: 3 HDMI2.0(supports up to 4K 60Hz)
LAN: 1
Video Loop Output
3G-SDI: 3
HDMI: 3 HDMI2.0(supports up to 4K 60Hz)
Supported In / Out Formats
SDI: 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
HDMI: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
Audio In/Out
Ear Phone Slot: 3
Power
Current: 2.5A(12V)
DC In: DC 12-24V
Power Consumption: 27W
Environment
Operating Temperature: 0~50
Storage Temperature: -20~60
Other:
Dimension(LWD): 48011688mm
Weight: 2.1kg
What's in the package:
Power adapter x1(ship the correct one accordingly to your address)
Tally connector x1
User manual
