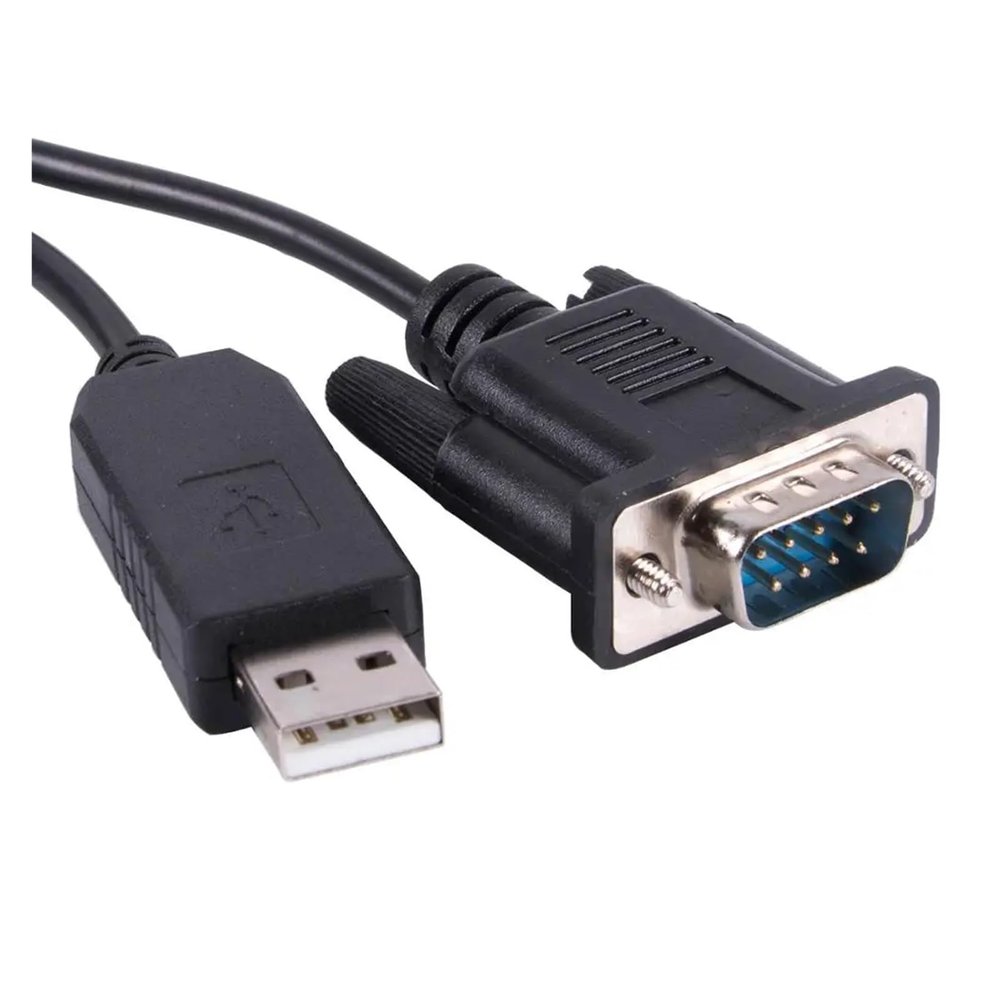

LINGQE PL2303TA USB DB9 RS232 Serial Adapter Male Null Modem Crossed Converter Cable(Standard DB9 COM)

Description

• TY>pe : Serial Cable
• USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
• The PL2303 chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
• Portable USB-Powered design requires no bulky power adapter or outlet
• USB to Null Modem (Cross-Wired) RS232 Serial Adapter
• Integrated PL2303 USB UART Chip
• Baud Rate up to 921.6Kbps

Null modem pinout(lap-top pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
The PL2303 chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
Portable USB-Powered design requires no bulky power adapter or outlet
USB to Null Modem (Cross-Wired) RS232 Serial Adapter
Integrated PL2303 USB UART Chip
Baud Rate up to 921.6Kbps
COM Port assignments maintained across reboot
USB-powered - no external power adapter required
PL2303TA USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte
USB2.0 RS232 to DB9 female cable
PL2303+ZT213 chip
USB2.0 standard, full speed
Baud Rate up to 921.6Kb
Null modem pinout(lap-top pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
Driverdownload : https://prolificusa.com/
Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave)
2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
USB to female serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9 port to lap-top or desktop via USB port
Portable USB-Powered design requires no bulky power adapter with superior performance, offering an easy connectivity for serial pl-ug devices
Built as PL2303 serial cable for 10, 8, 7, OS etc
USB male to serial female cable is designed with a high performance quality processor chip (PL2303 Chipset) that makes t
