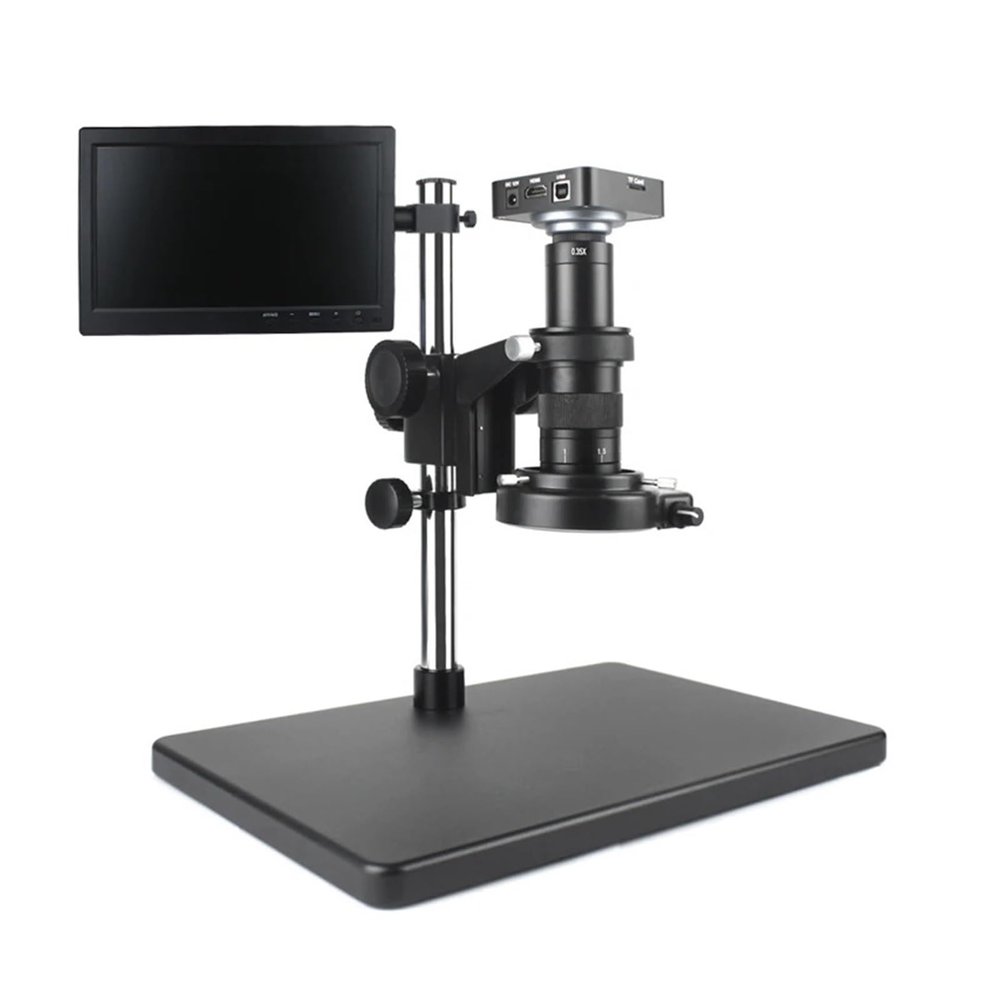

LIUZHENZHEN 38MP 2K 1080P Electronic Video Microscope HDMI USB Camera 120X 180X 300X C-Mount Lens Magnifier for Phone Welding Repair(Brown,300X)

Description

• 38MP 2K 1080P electronic video microscope camera
• Compatible with C-Mount lens for versatile magnification options (120X, 180X, 300X)
• Ideal for phone welding repair, circuit board inspection, and other precision work
• HDMI and USB output for easy connection to monitors and computers
• Upgraded version with improved image quality and performance

38MP HDMI USB Camera Specifications:
Image sensor: Panasonic original 38 million pixel CMOS sensor
Sensitive size: 1/2.3 inches. A larger field of view than the usual 1/3
Pixel size: 1.335m 1.335m
Output interface: HDMI (Type A), USB (Type B), TF Card
Photo output: 38 million pixels (7120*5344)
Video output: 2K@30 frames, 1080p@60 frames
HDMI output: progressive 1920*1080 60 frames. Simultaneous output with USB
HDMI output ratio: support 4:3, 16:9, 16:10 screen, to ensure that the image is not distorted.
USB2.0 output (free drive): 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI
TF card storage capacity: maximum 64GB
White balance: One-click white balance/automatic/manual, R, G, B can be individually adjusted
Exposure: manual/automatic. Adjustable exposure value
Crosshairs: 8 lines. Adjustable color, thickness and position
Cross tick: 2 lines. Dotted cross: 2 lines. Adjustable color, thickness and position
Sharpness, contrast, saturation, support, adjustable, black and white, negative film, support
Mirror: horizontal and vertical mirror
Language: Chinese/English
Digital zoom: support
Remote control: supported. The remote control takes pictures and videos without shaking.
Input voltage: DC 12V (support 5-19V), 55-21 large mouth
Lens interface: C/CS port
Product size: 74*74*35mm
package includes: camera, power adapter, remote control, paper manual, HDMI cable, 16G TF memory card
The packaging includes:
1 x HDMI USB Camera
1 x Power Supply (EU/US)
1 x Remote Control
1 x HDMI Cable
1 x paper manual
1 x C mount Lens
1 x Microscope Focusing Bracket
1 x LED Light Source
1 x 10.1-inch or 11.6-inch IPS Monitor (Selective Purchase)
120X Lens:
120X C-Mount Lens: ( 21.5-inch Monitor)
Zoom C-Mount Lens
0.35X C-mount adapter
Objective Magnification Power by 0.7X-4.5X
Working distance: 100mm
Maximum fie
