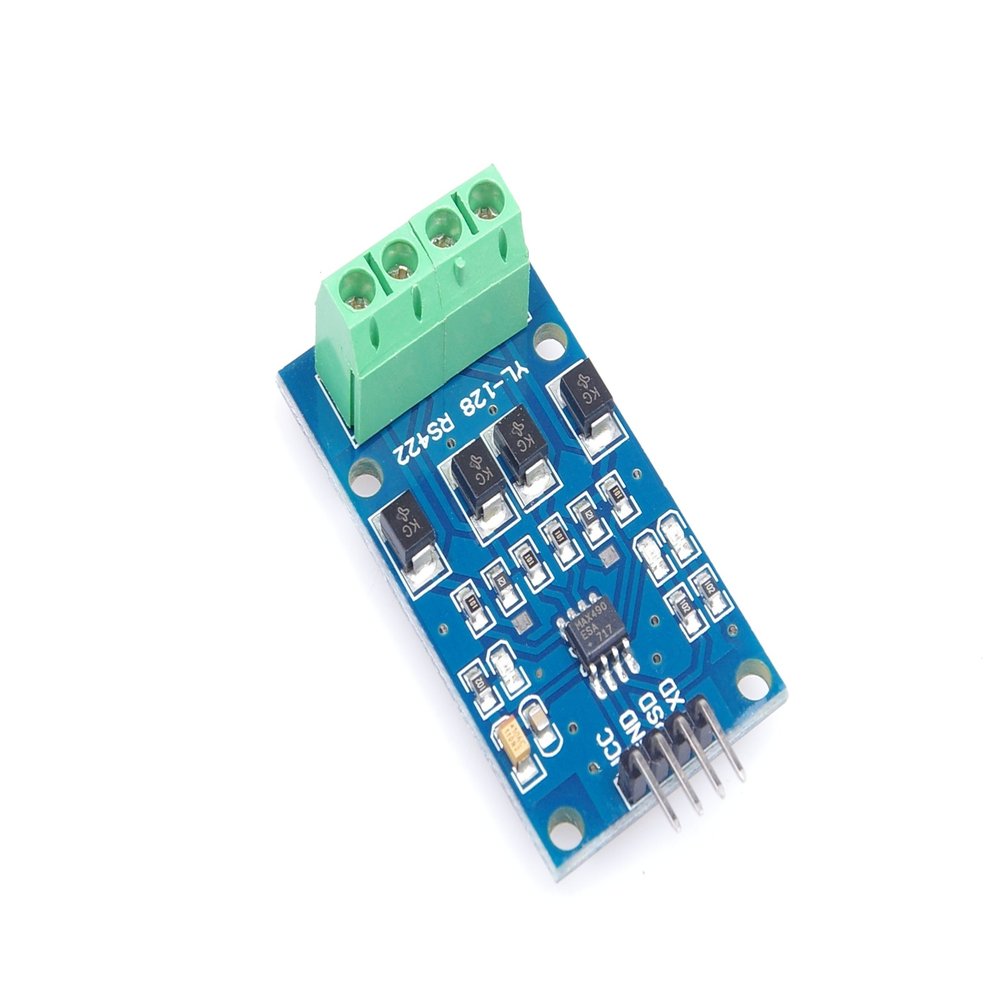

LM YN RS422 to TTL Mutual Conversion Module Bi-Directional Signal Module Full-Duplex 422 to Single-chip microcomputer MAX490 to TTL Module

Description

• RS422 interface, two-way communication. A B Y Z ultra-long transmission 1000 meters.
• The module has 15KV ESD protection. Add 10 ohm overcurrent protection resistor to the board. The module comes with TVS diodes. Anti-lightning, anti-spike voltage.
• The module has 120 ohm terminating resistance, can reduce long-distance communication echo interference effectively.
• A power indicator and data transceiver indicator. Data status panoramic view. The module TTL side uses 5V DC power supply RXD TXD compatible 5V logic signal.
• The module uses high-quality MAX490 chip, stability and communication speed is extremely high, up to 2.5MBPS.

Module Description:
1, RS422 interface, two-way communication. A B Y Z ultra-long transmission 1000 meters.
2, the module has 15KV ESD protection.
3, increase the board 10 ohm current limiting overcurrent protection resistor.
4, the module with TVS diode. Anti-lightning, anti-spike voltage.
5, the module has 120 ohm termination resistance, can effectively reduce long-distance communication echo interference.
6, a power indicator and data transceiver indicator. Data status panoramic view.
7, the module TTL side using 5v DC power supply RXD TXD compatible 5V logic signal.
8, The module uses high-quality MAX490 chip, stability and communication speed is extremely high, up to 2.5MBPS.
9, the module size: 5.0cm * 2.7cm.

Package Included:
1 * RS422 Mutual transfer TTL bi-directional signal module
