LM35 Sensor Passive Buzzer Infrared Receiver DHT11 Shield Multi-Function Expansion Board DHT11 Temperature Humidity Sensor

Description

• LM35 Sensor Passive Buzzer Infrared Receiver DHT11 Shield Multi-function Expansion Board DHT11 Temperature Humidity Sensor

1>.
Descriptions:

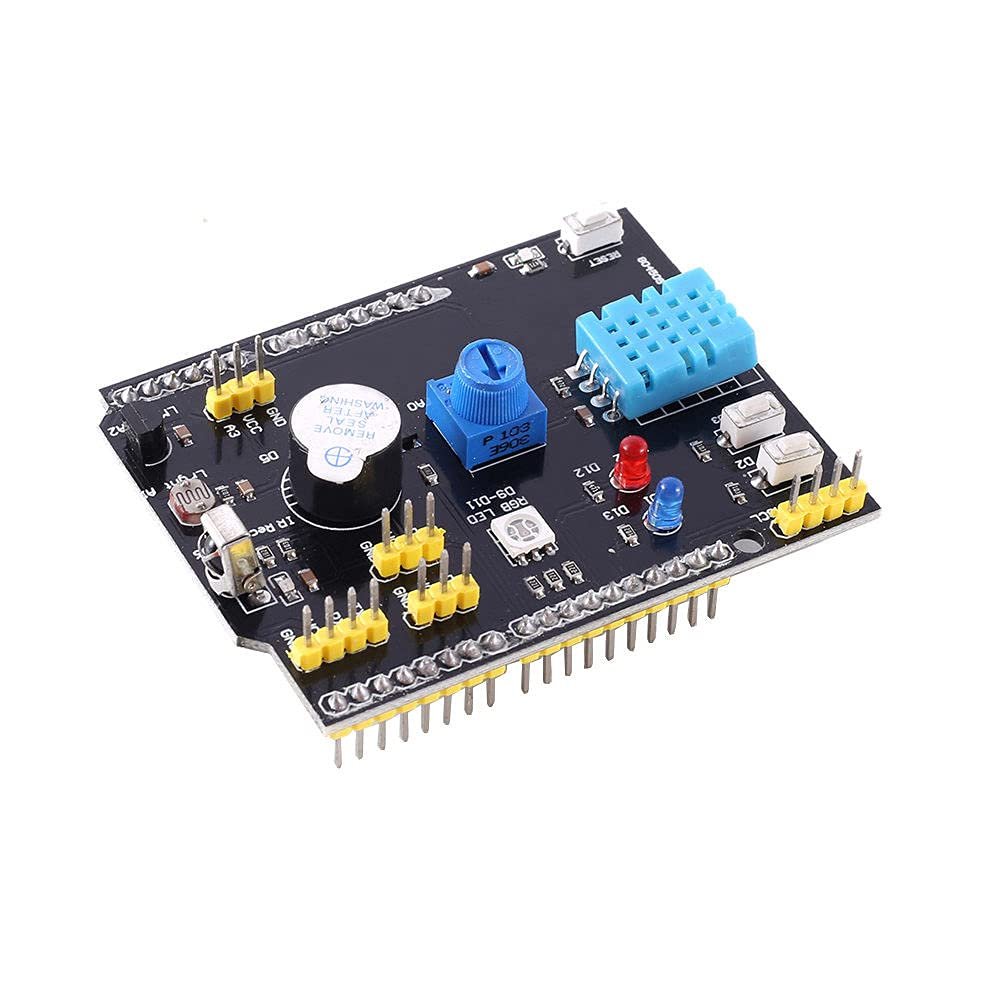

It is a multi-function expansion board.It is to provide basic experimental modules for beginners,a board integrates various module functions.
2>.Feature:
1.No need to weld,no need to connect,use directly
2.Reserve expansion ports to complete other module experiments
3.It is customized to increase the height of the pin,and will not short-circuit with the USB interface of the UNO board.
4.Multifunctional,with 9 module functions.
5.It has two LED indicators to show the working status.
3>.Parameter:
1.Product Name:Multi-Function Expansion Board
2.I2C Interface:A4 SDA,A5 SCL
3.Digital Port:D7,D8
4.Analog Port:A3
5.Work Temperature:-25~85
6.Work Humidity:5%~95%RH
7.Size:69*55*21mm
4>.Functional Module:
1.2-way button module
2.2-way LED module
3.Full color LED module
4.Infrared receiver module
5.Brightness sensor module
6.LM35D temperature sensor module
7.Passive buzzer module
8.Rotary potentiometer module
9.DHT11 temperature and humidity sensor module
5>.Package:
1.1pc Multi-Function Expansion Board
