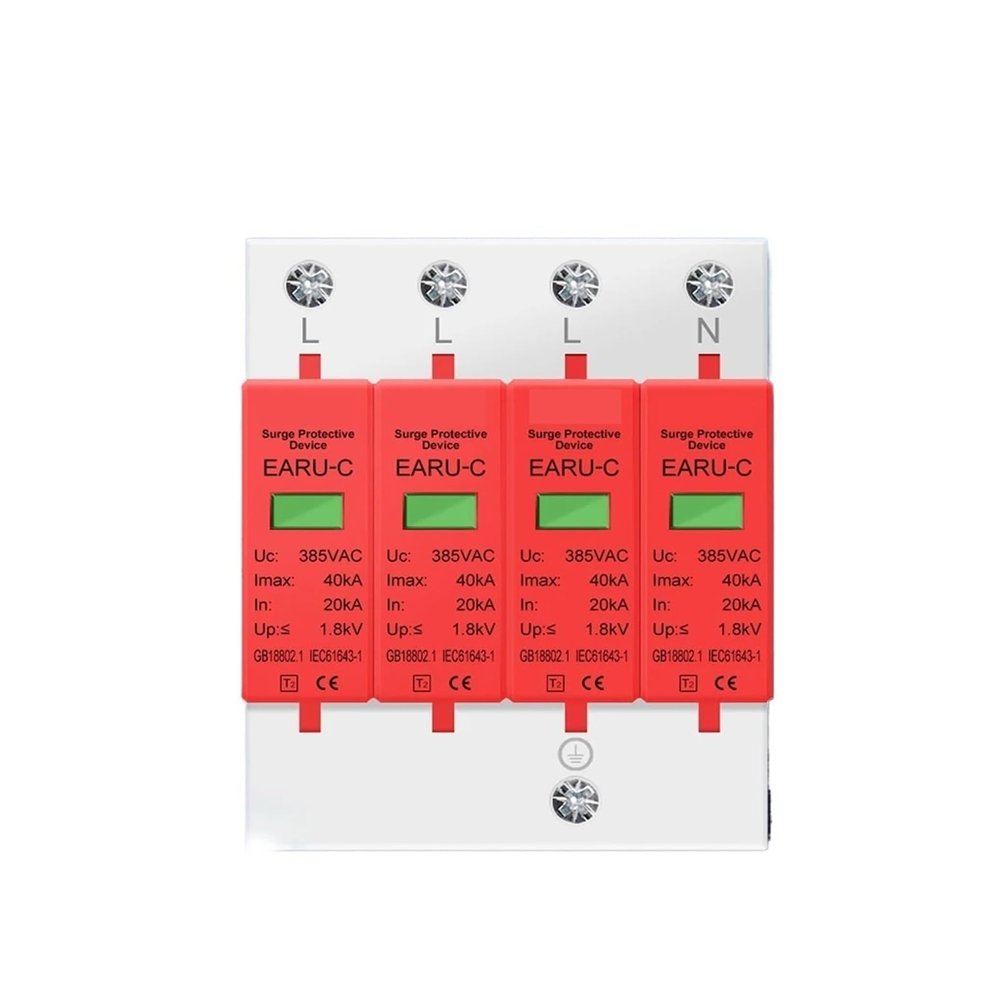

Low-Voltage Surge Protector/SPD Surge Arrester, 1/2/3/4 Pole Surge Voltage Protection, DC 500V/800V/1000V, 40KA/60KA(1P,DC1000V 20-40KA)

Description

• Surge Protectors
• Low-voltage surge protector/SPD surge arrester, 1/2/3/4 pole surge voltage protection, DC 500V/800V/1000V, 40KA/60KA

Surge Protectors
Low-voltage surge protector/SPD surge arrester, 1/2/3/4 pole surge voltage protection, DC 500V/800V/1000V, 40KA/60KA
Applications: Protecting systems and powered electrical equipment from lightning strikes and transient overvoltages;
Standard: IEC/EN61643-1
Number of strokes: 1, 2, 3, 4;
Rated values: 230/400V, AC50/60Hz;
Applications: Protecting systems and powered electrical equipment from lightning strikes and transient overvoltages;
Rated values: AC 50/60Hz, 230V single-phase power distribution and control system;
Short-circuit current: up to 10kA (8/20 seconds);
Applications: Protecting systems and powered electrical equipment from damage caused by lightning strikes and transient overvoltages;
Technical parameters:
Class EASP-40
EASP-60
EASP-20
Maximum continuous operating voltage (Uc):
Approximately 385 volts AC
Approximately 385 volts AC
Approximately 385 volts AC
Nominal discharge current (8/20 seconds) (inches):
20KA
30 kJ
20KA
Maximum discharge current (8/20 seconds) (Imax.):
40 kJ
60 kJ
10 kJ
Voltage protection level (top):
1.8 kV
2.2 kV
1.8 kV
Response time:
<;25ns
Leakage current:
20A
Work environment:
Temperature -40C to +80C;
Less than 95%;
The situation has worsened:
Green (normal), Red (malfunction)
Protection Mode:
L-PE, N-PE (1P, 2P, 3P, 3P+N)
Shell material:
Flame retardant materials
Rated values: DC 500V/800V/1000V
Applications: Protecting systems and powered electrical equipment from lightning strikes and transient overvoltages.
Number of strokes: 2
Rated values: DC 500V/800V/1000V
20-40kA/30-60kA
<;2.2 kV
500/800/1000V DC
Maximum continuous DC voltage
UCPV
500/800/1000VDC
Protection mode
CM/DM
Maximum discharge current (8/20s)
IMAX
40kA/60kA
Nominal discharge current (8/20 seconds)
exist
20kA/30kA
Voltage protection level CM/DMatIn
up
2.2 kV
Isolation resistance
Risol
More than 102 million
Response time
tA
25 nanoseconds
I/O connection
Screw terminals: 10-35mm
via connection bus
Install
Symmetrical track (EN50022/DIN46277-3)
Operating temperature range
-40~+85
