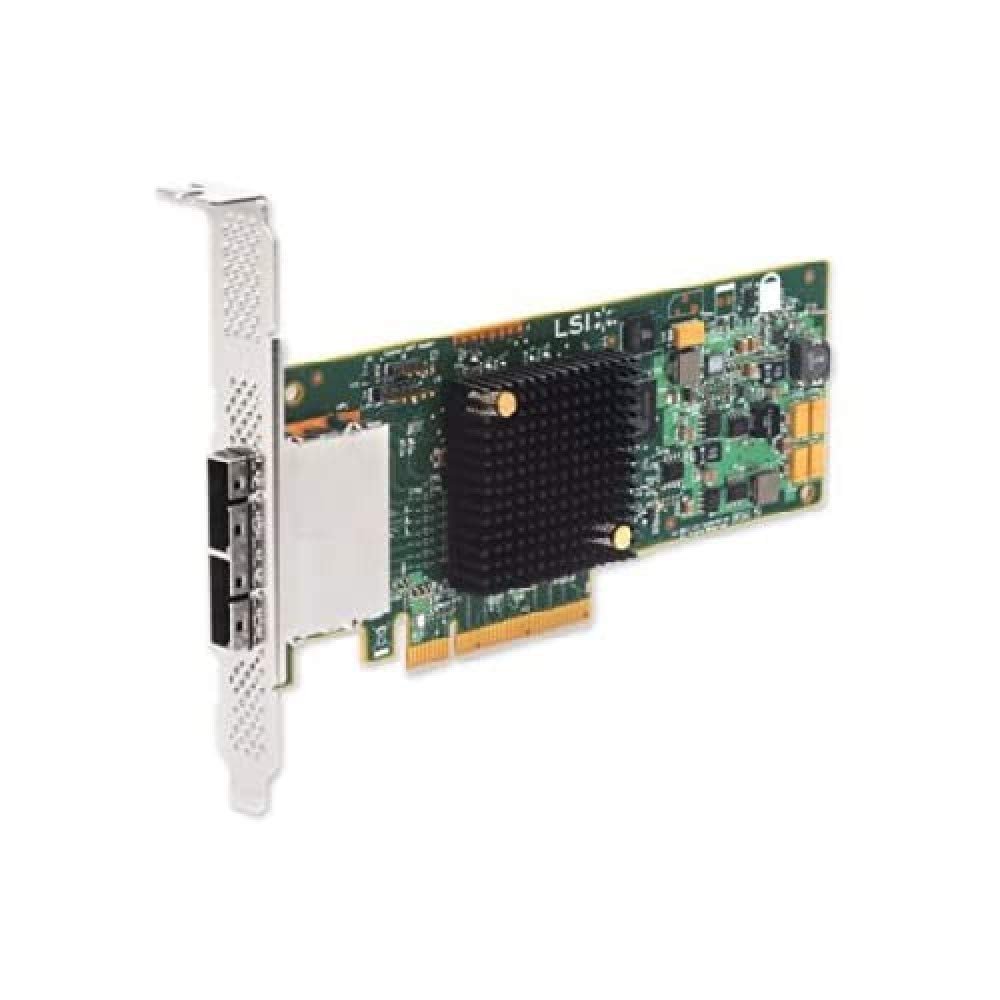

LSI SAS9207-8E Logic SGL SAS PCIE 12/3.3V CTLR 8Port Ext 6GB/S SATA Plus SAS

Description

• SATA/SAS raid controller, 2 x ext. sff-8088 mini-sas, pci-express 3.0 x8, up to 6gbs transfer rate
• Operating systems supported - Microsoft windows, Linux (suse , red hat), Solaris, etc.
• Low profile

Specifications- mfr part number: Lsi00300 (9207-8e )- features:- Eight external 6gb/s sas+sata ports- two x4 external sff8088 mini-sas connectors- lsisas2308 6gb/s sas+sata controller- supports up to 1024 sas or SATA end devices- supports ssds, hdds, and tape devices- fusion-mpt 2.0 architecture can achieve more than 700,000 i/os per second- supports major operating systems- mac os support for additional integration flexibility- connectors: 2x mini-sas sff8088 external connectors- device support: 1024 non-raid devices- host bus type: Pci-express 3.0 x8- pci data burst transfer rates: Half duplex, x8, pcie 8000 mb/s- storage connectivity/data transfer rates: 8 ports, 6gb/s sas 2.1 compliant- sas bandwidth: Half duplex, 600 mb/s per lane- port configurations: 8 ea, x1 ports (individual drives) or 2 ea, x4 wide ports- i/o controller: Lsisas2308, fusion mpt 2.0- brackets: Full height and low profile- cable support: Active copper- operating voltage: +12v +/-8%, 3.3v +/-8%- pci power: 9.8w typical, airflow 200 lfm- mtbf: > 2,000,000 hours - os support: MICrosoft windows, linux (suse , red hat), solaris, vmware, freebsd- regulatory certifications: Emc - class b-us (cfr 47, p15b), canada (ices-003), japan (v-3/02.04), europe (en55022/en55024), australia/new zealand (as/nzs 3548), safety - en60950, rohs, weee- dimensions: Low profile, 2.7 x 6.6 inch- package contents: Host bus adapter, documentation cd- ROHS compliant.
