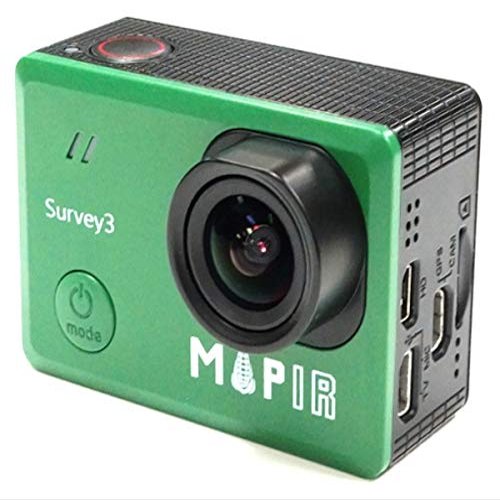

MAPIR Survey3W NDVI Mapping Camera RGN Red+Green+Near Infrared Filter 3.37mm f/2.8 No Distortion Wide Angle GPS Touch Screen 2K 12MP HDMI WiFi PWM Trigger Drone Mount

Description

• Easy to use survey camera captures RGN (Red + Green + Near Infrared) NDVI 12MP RAW+JPG images or 2K video.
• Ultra sharp No Distortion Wide RGN (Red + Green + Near Infrared) NDVI lens: 3.37mm f/2.8 87d 16MP HFOV (No Fish Eye).
• This Red+Green+NIR (RGN, NDVI) model sees Near Infrared 850nm, Red 660nm, and Green 550nm light. The images from this camera are commonly calibrated into an index image and then a colored lut is applied to show contrast between healthy and poor health vegetation.
• Great for generating Map, 2D ortho-mosaics or 3D models, can use with drone and Mission Control Drone Flight App
• PWM trigger capable or use timer interval, Longer Battery Life. Survey 3 came with 1200 mAh battery. Built-In WIFI & HDMI, edit & share your action in minutes. Just download App (MAPIR SCA) on your phone or tablet and connect with this mapping camera.

Professional NDVI Mapping Camera for plants health.

The RGN filter is previously our most commonly purchased model mainly due to its ability to capture the Red and NIR wavelengths necessary for the popular NDVI index (see below for more information). NDVI is typically used as a general plant health and vigor index, basically it will show you what regions are healthiest compared to those areas that are not as healthy.

Survey 3W RGN camera use the best No Distortion lens.
With its 87-degree HFOV 16MP sharp 7 glass non-fisheye optics this lens captures the entire image sensor in perfect edge-to-edge sharpness.
Its 19mm (35mm equivalent) fixed focal point provides more than a 2X ZOOM.

The camera has a fast interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode.
You can also trigger the photo capture using a PWM signal through the HDMI port or Wi-Fi.

Every Survey3 camera includes an external USB GPS receiver to automatically geo-tag each captured image.

Its 12MP Sony sensor and sharp non-fisheye lens allow you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port.

Included:
1 x Survey3 W RGN Digital Camera
1 x USB
1 x GPS Receiver
1 x Battery
1 x Manual
1 x Camera Control App

Specifications:
Filter option RGN (Red + Green + Near Infrared)
Image Resolution - 12 Megapixel
Video Resolution - 2160p24, 1440p30, 1080p60, 720p60
Lens Optics - 87 HFOV (19mm) f/2.8 Aperture, No Distortion (Non-Fisheye) Glass Lens
Sensor - Sony Exmor R IMX117 12MP
Chipset - Novatek NTK96663
GPS/GNSS - ublox UBX-G7020-KT
Battery - Removable Li-ion 3.7V (1200mAh)
Memory Storage - Micro SD (Up To 128GB Card)
White Balance - Auto / Custom Capture Interval from 0.5sec to 24h
