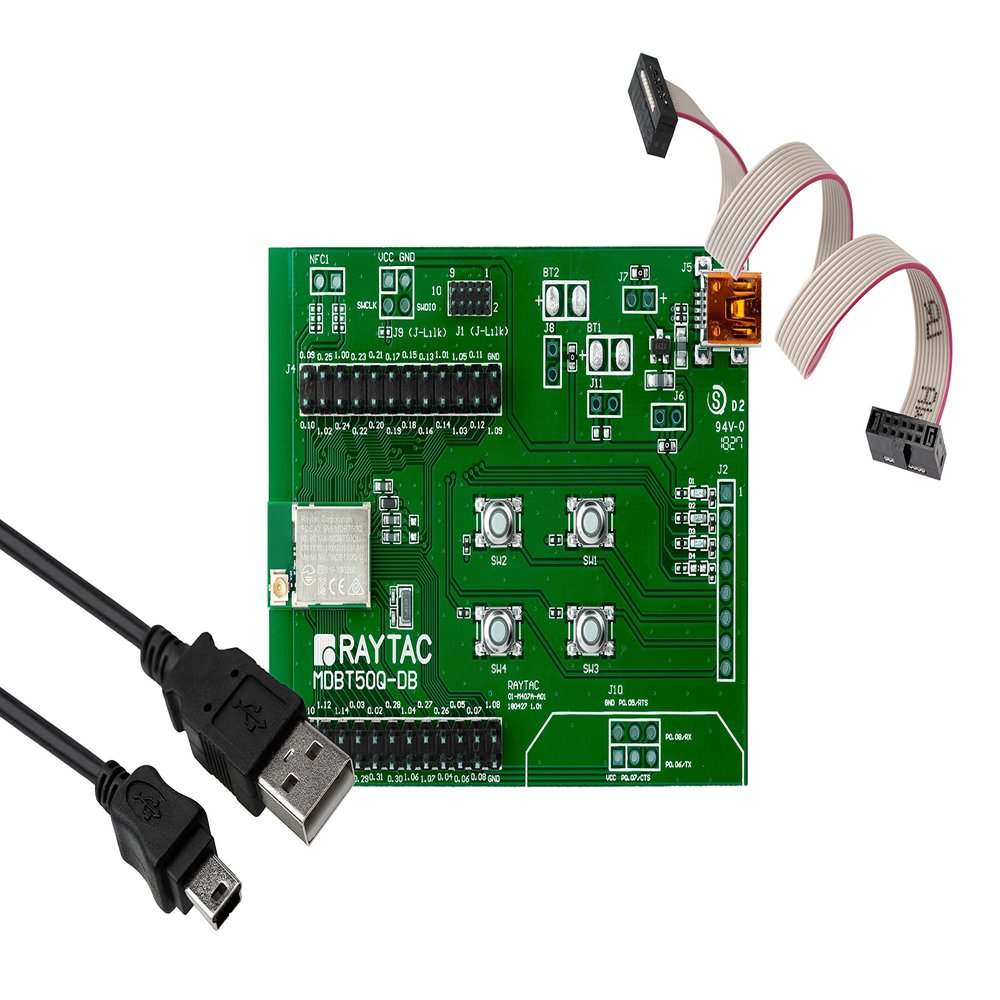

MDBT50Q-DB Nordic nRF52833 Module Demo Board Dev Kit 42 GPIO Bluetooth Module BT5.2 FCC IC CE Telec KC SRRC (u.FL Connector)

Description

• Nordic nRF52833 SoC module demo board Dev Kit / MDBT50Q-U512K (u.FL Connector for External Antenna)
• Supports multiprotocol for Bluetooth Low Energy, ANT+, Zigbee, Thread (802.15.4)
• BT5.2, FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC Pre-Certified
• 42 GPIO / 10.5 x 15.5 x 2.05 mm / 1MB Flash Memory / 256kB RAM
• Interface: QSPI & USB & I2C & SPI & UART & I2S & PDM & PWM & NFC
• RoHS & Reach Compliant
• Operation Temp.: -40C to 105 C (-40F~221F) / 1.7 to 5.5 V supply voltage
• Find article "How To Use MDBT50Q Demo Board (MDBT50Q-DB-40 / MDBT50Q-DB-33) for hardware setup
• Raytac Part No. MDBT50-DB-U33

Raytacs MDBT50Q-DB Module demo board Dev Kit deployed Raytac MDBT50Q series module (MDBT50Q-512K or MDBT50Q-P512K or MDBT50Q-U512K) is a BT 5.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52833 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors. Features: Embedded 2.4GHz transceiver supports Bluetooth 5.2 ( ), IEEE 802.15.4 ( & Zigbee) & 2.4Ghz RF & ANT+ upon customers preference Compact size with (L) 15.5 x (W) 10.5 x (H) 2.05 / 2 mm Low power requirements, ultra-low peak, average and idle mode power consumption Be compatible with a large installed base of mobile phones, tablets and computers Fully coverage of BLE software stack
