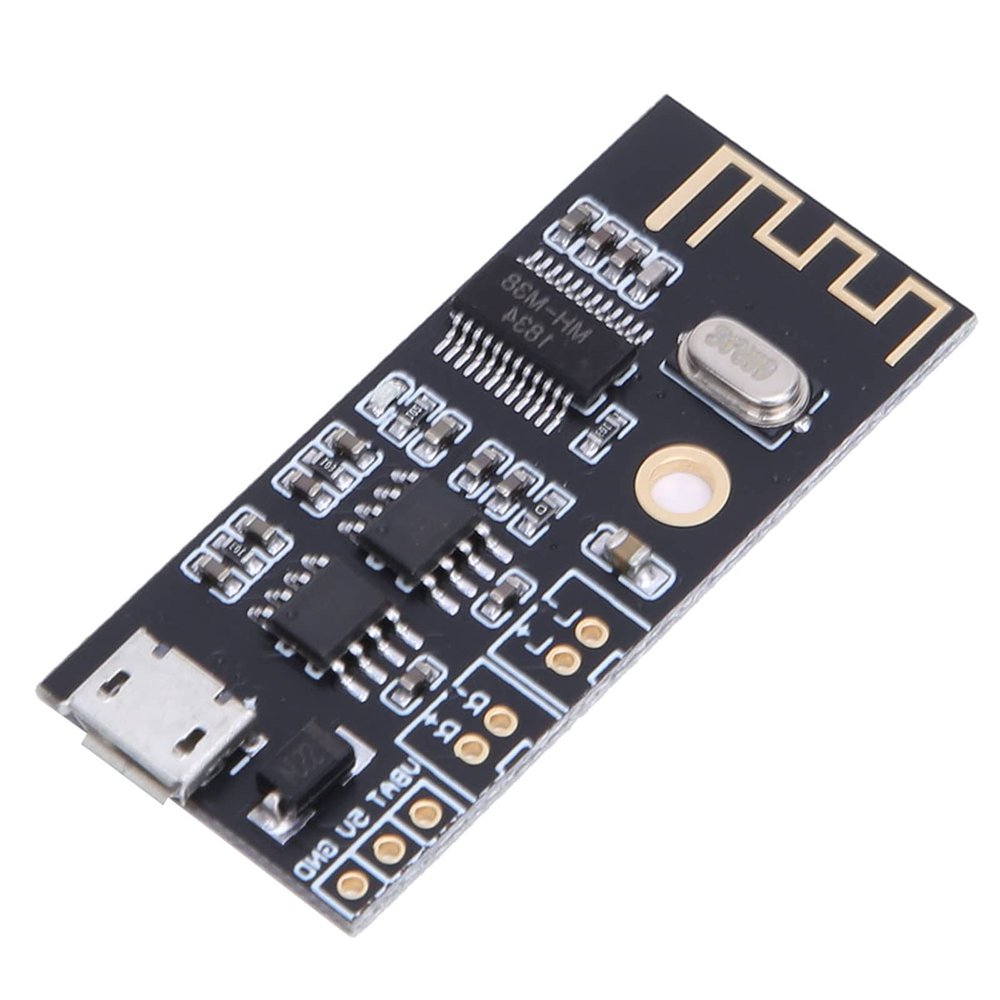

MH-MX8 Module, M28 Headphone Version, Lossless Decoder Kit, Plug and Play, for Audio Receiver Board(M38 with 5W amplifier version)

Description

• For V4.2 version of for , supports WAV / WMA / FLAC / APE / MP3 lossless decoding, stereo two-channel output
• After powering on the module, the phone searches for the for name MH / MHM28 / MHM38, and can play music when connected to for Bluetooth.
• Widely used in various for audio receivers, DIY conversion of various sounds, etc.
• M28: Power supply: It can be directly powered by the MICRO USB for cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board.
• M38 Power supply: It can be directly powered by the MICRO USB for cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. The maximum working current is 5V2A. It is recommended to use 5V2A regulated power supply for better sound quality. Support USB sound card, drive (plug and play) Connect the module to the computer with the USB cable, and the computer can play music through the module amplifier output.

Feature:
1. : MUTE mute control terminal: used to control the power amplifier board. When muting, MUTE outputs a high level of 3.3V, and outputs a low level during playback. KEY button control: This function requires additional connection of resistors and buttons to achieve Volume power off function: The default output is volume. Press the button to control the volume increase and decrease. If the control volume is less than 15%, the volume output will be 15% after poweron; if the control volume is greater than 15%, the original volume will remain unchanged after poweron.
2. M28: Power supply: It can be directly powered by the MICRO USB for cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board.
3. M38 Power supply: It can be directly powered by the MICRO USB for cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. The maximum working current is 5V2A. It is recommended to use 5V2A regulated power supply for better sound quality. Support USB sound card, drive (plug and play) Connect the module to the computer with the USB cable, and the computer can play music through the module amplifier output.
4. For V4.2 version of for , supports WAV / WMA / FLAC / APE / MP3 lossless decoding, stereo two-channel output
5. After powering on the module, the phone searches for the for name MH / MHM28 / MHM38, and can play music when connected to for Bluetooth.

Specification:
Item Type: Module Function / model M28 M38 MICRO power supply No Yes Yes Audio headphone Interface No Yes No Built-in amplifier No No Yes(5
