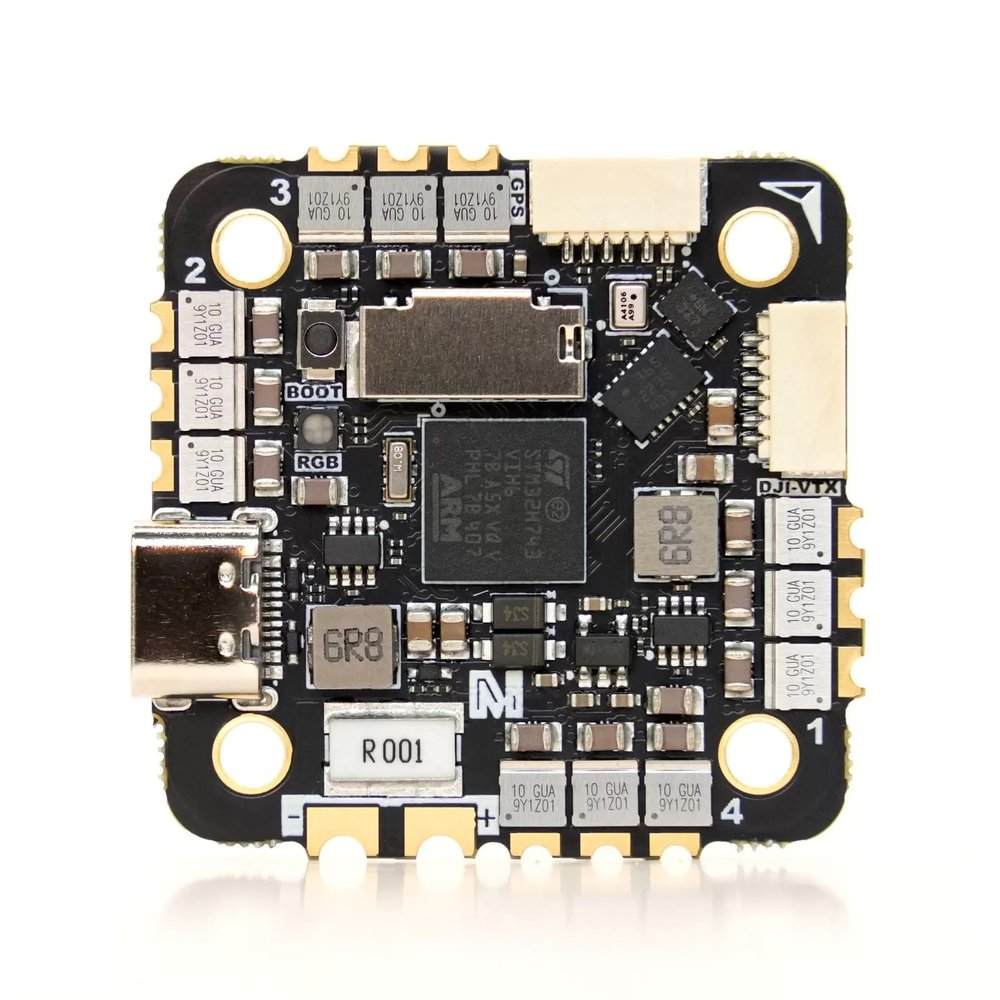

MicoAir743V2 AIO Flight Controller with 45A 4in1 ESC (Metal-Encapsulated ), STM32H743, Dual IMU, Barometer, 26S Input O3/O4 Support, Compatible with ArduPilot, PX4, Betaflight, INAV

Description

• High-Performance MCU: STM32H743 + Dual IMU + High-Precision Barometer Powered by the flagship STM32H743VIH6 MCU (480MHz, 2MB Flash), this flight controller delivers exceptional computing power and real-time responsiveness. Equipped with a BMI088 + BMI270 dual IMU setup for enhanced vibration resistance and accurate attitude sensing, along with the SPL06 barometer for precise altitude controlideal for demanding multirotor applications.
• Built-in 45A ESC with Fully Metal-Enclosed MOSFETs, Supports AM32 & Bi-Directional DShot Features an integrated 4-in-1 45A ESC built with high-quality metal-encapsulated MOSFETs, offering low internal resistance, high current handling, and excellent heat dissipation. Supports PWM / DShot300 / DShot600 / bi-directional DShot (BDShot) protocols with up to 48KHz PWM frequency for fast and responsive control. Wide voltage input (26S) ensures broad compatibility with various battery types. Ideal for 2-inch to 5-inch frames.
• Plug-and-Play Compatibility with O3 / O4 / O4 Pro HD Video Systems Optimized for HD transmission systems, with a dedicated SH1.0-6P connector supporting DisplayPort protocol and built-in 12V 2A power output. Ensures stable operation of O3/O4/O4 Pro without additional power modules or wiring. Simply plug and flystreamlined integration for HD FPV setups.
• Rich Interface Expansion & Full Compatibility with MicoAir Sensor Ecosystem Includes 5V 2A and 12V 2A regulated BEC outputs for peripherals such as optical flow modules, GPS units, and receivers. Offers extensive I/O: 7x UART (all DMA-enabled), 9x PWM outputs, TF card slot, I2C, SWD, 2x ADC, LED strip support, and buzzer port. Fully compatible with MicoAirs MTF-01/MTF-02 optical flow + ToF modules, GPS modules, telemetry units, and moretrue plug-and-play hardware/software integration with no soldering required.
• Full Support for Major Open-Source Flight Firmware Platforms Natively supports ArduPilot, PX4, Betaflight, and INAV, offering excellent firmware flexibility and long-term expandability. Designed for developers, engineers, and advanced pilots seeking a reliable and adaptable all-in-one flight control solution.
• Designed for Both High-Performance FPV and Advanced Research Applications offers a complete hardware interface layout and a rich ecosystem of compatible sensors . With comprehensive documentation , its an ideal platform for research, prototyping, and secondary development in robotics, UAV studies, and autonomous systems.

MicoAir743v2 AIO Flight Controller

Product Manual: Click here to view the full product guide

Please note: The default firmware pre-installed is ArduPilot.

Flight Controller Specifications
MCU: STM32H743VIH6, 480MHz, 2MB Flash IMU: BMI088 + BMI270 Baro: SPL06 TF Card Slot 7x UART 9x PWM 1x I2C 1x SWD 2x ADC (VBAT, Current) 1x LED Strip 1x Beeper USB Type-C BEC 5V 2A output (for controller, receiver, GPS, optical flow or other devices) BEC 12V 2A output (for DJI O3/O4/O4 Pro)

ESC Specifications
Firmware: AM32_F4A_4IN1_F421_2.17 PWM Frequency: 48KHz ESC Protocol: PWM / DShot300 / DShot600 (support BDShot) Continuous Current: 45A 4 Voltage Support: 2-6S (5.6V - 27V) Tutorial: How to Configure and Update AM32 ESC on MicoAir743-AIO

UART Mapping

Ardupilot: SERIAL0 USB SERIAL1 UART1 (MAVLink2, DMA-enabled) SERIAL2 UART2 (DisplayPort, DMA-enabled) SERIAL3 UART3 (GPS, DMA-enabled) SERIAL4 UART4 (MAVLink2, DMA-enabled) SERIAL5 UART5 (DMA-enabled) SERIAL6 UART6 (RCIN, DMA-enabled) SERIAL8 UART8 (DMA-enabled)
PX4: ttyACM0 USB ttyS0 TELEM1 UART1 ttyS1 GPS2 UART2 ttyS2 GPS1 UART3 ttyS3 TELEM2 UART4 ttyS4 TELEM3 UART5 ttyS5 RC UART6 ttyS7 TELEM4/SERIAL4 UART8

RC Input (Ardupilot)

The default RC input is configured on UART6. The SBUS pin is inverted and connected to RX6. Non-SBUS, single-wire serial inputs can be tied directly to RX6 if the SBUS pin is left unconnected. RC can also be used on UART2, UART4, or UART8 by setting SERIALn_PROTOCOL=23 and changing SERIAL6_PROTOCOL to a different value.

OSD Support (Ardupilot)

Supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).

VTX Support

SH1.0-6P connector supports DJI Air Unit / HD VTX connection (DisplayPort protocol). Pin 1 supplies 12V ensure compatibility before connecting devices that require 5V.

PWM Output

Supports up to 9 PWM outputs. Channels 18 support DShot and bi-directional DShot (BDShot) Note: PX4 & INAV currently do not support BDShot
Output Groups: Group 1: PWM 1, 2, 3, 4 Group 2: PWM 5, 6 Group 3: PWM 7, 8, 11 (Note: PWM11 is LED. If used for serial LED, PWM7 and PWM8 must also be used for LEDs)

Compass

No built-in compass. External compass can be connected via I2C on SDA/SCL.

Physical
Mounting: 25.5 25.5mm, 3mm Dimensions: 36 36 8mm Weight: 10g

Package Includes
H743V2 AIO (Ardupilot firmware 1 4G TF Memory Card 1 220uF Electrolytic Capacitor 1 XT30 Power Cable 1 M2 6.6mm Silicone Dampening Sleeves 4 SH1.0-6P Cable 20cm (For GPS) 2 SH1.0-4P Cable 15cm (For FC) 1 Q&A

Q: Im having trouble connecting my AM32 ESCs when using ArduPilot firmware. What should I do?

A: First, update your Micoair H743 V2 AIO flight controller to the latest firmware and configure the communication parameters according to the official ArduPilot setup guide.

In rare cases, users may experience connection issues between ArduPilot and AM32 ESCs. This is a firmware compatibility issue, not a hardware fault. The ArduPilot team is actively improving compatibility.

If the problem persists, temporarily flash Betaflight (BF) or INAV firmware to complete ESC configuration, then re-flash ArduPilot. This workaround has been effective. Future ArduPilot releases should resolve the issue.
