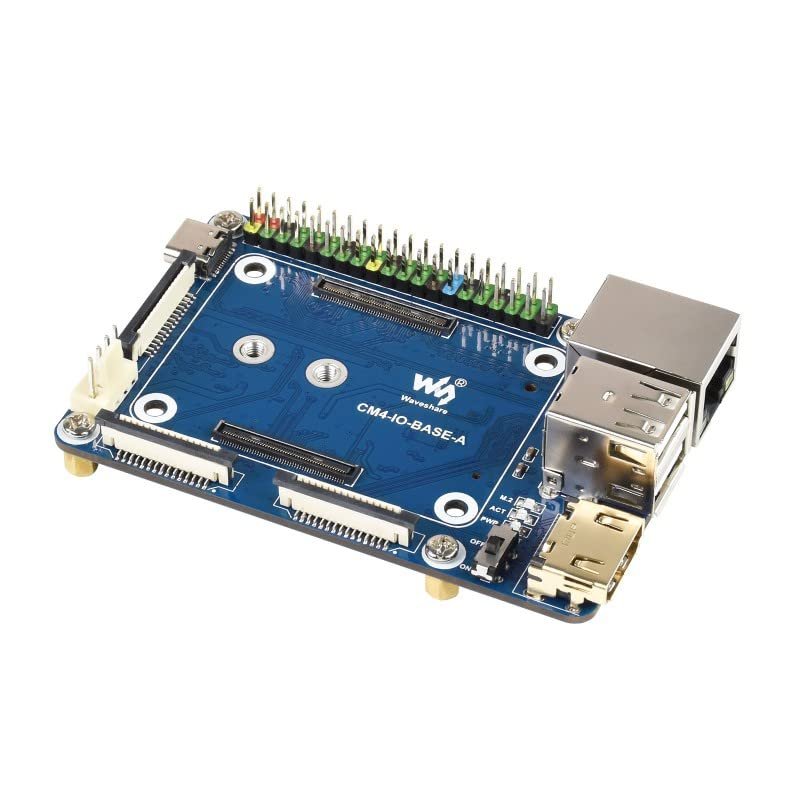

Mini Base Board (A) Compatible with Raspberry Pi Compute Module 4 Suitable for Evaluating The RPi CM4 Or Being Integrated Into End Products Powerful Functions in a Credit Card Sized Body

Description

• CM4 Socket:suitable for all variants of Compute Module 4
• Networking:Gigabit Ethernet RJ45 connector
• M.2 M KEY, supports communication modules or NVME SSD
• USB:USB 2.0 Type A 2, USB 2.0 via FFC connector 2
• Storage:MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

Specifications
CM4 Socket:suitable for all variants of Compute Module 4
Networking:
Gigabit Ethernet RJ45 connector
M.2 M KEY, supports communication modules or NVME SSD
ConnectorR:RPi 40PIN GPIO header
USB:USB 2.0 Type A 2, USB 2.0 via FFC connector 2
Display:MIPI DSI display port (15pin 1.0mm FPC connector)
Camera:MIPI CSI-2 camera port 2 (15pin 1.0mm FPC connector)
Video:HDMI port 2 (including one port via FFC connector), supports 4K 30fps output
RTC:N/A
Storage:MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN Header:no fan control, 5V
Power Input:5V
Dimensions:85 56mm

Package Content
CM4-IO-BASE-A
CM4-IO-BASE-A x1
SSD mounting screw x1
