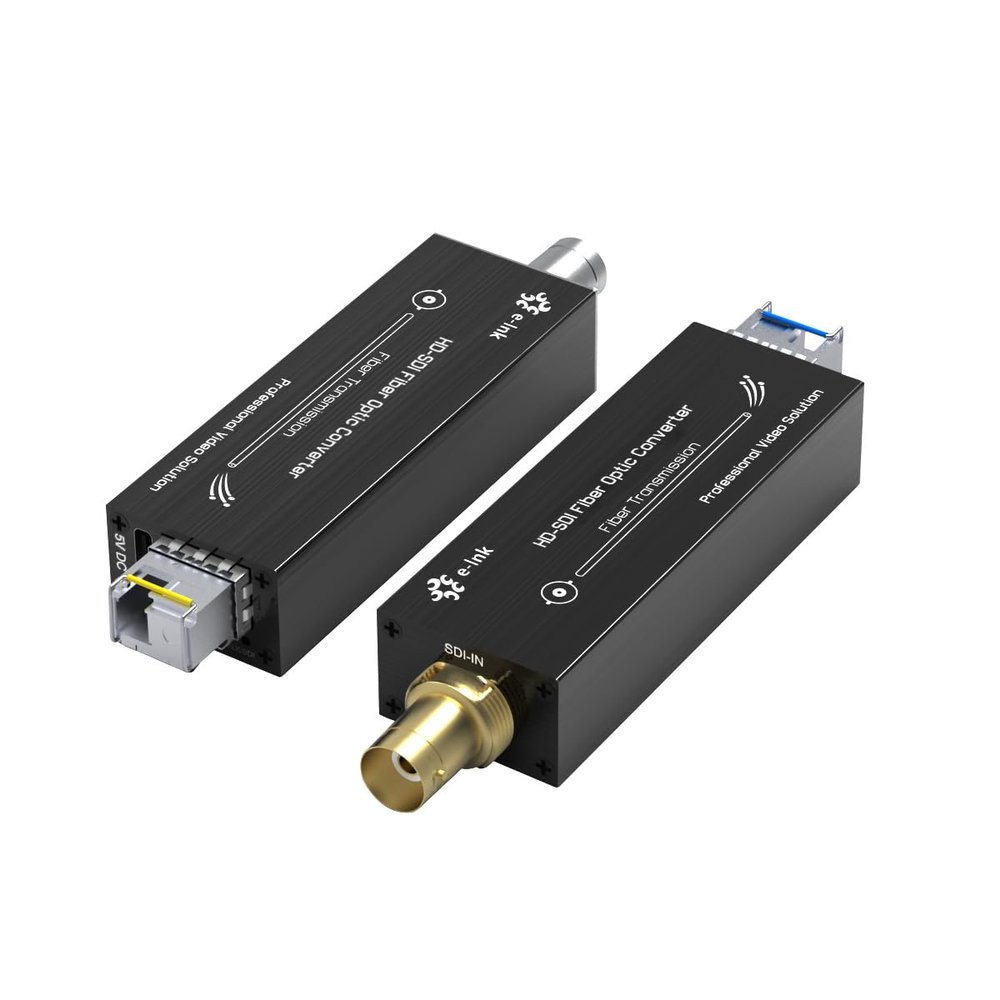

Mini HD SDI Fiber Extender 1080P&30HZ HD-SDI Over Fiber Converter Broadcast Level SDI Video Optical Transceiver Single-Mode Single Fiber 20km

Description

• HD-SDI Video: The SDI Fiber converter support HD-SDI with 8-channel audio embeded, resolution up to 1080P&30HZ, Automatic reclocking 270Mbit/s - 1.48Gbit/s.
• Application scenario: communication industry, radio and television, DC(data centre), broadcasting and TV station,etc.
• Propagation distance: single mode 20 km, HD-SDI to fiber optic converter can be customized multi-mode.
• Small size: The size of the HD SDI optical terminal is only 3*1.1*0.7 inches, which is very small and easy to carry. Aluminum alloy material, lightweight anti-fall.
• NOTE: This is not a bi-directional converter.Converting to HDMI requires an SDI to HDMI converter.

Features:
Uncompressed transmission, no delay, no losses
Hot-Pluggable, EMI/RFI Resistant
High compatibility, can auto-match source and display device
Automatic cable equalization to ensure signal integrity
Directly compatible with HD-SDI camera systems
Long transmission capability at least 20 km
Super optic dynamic range and free of adjustment

Specifications:
Formats:1.5 Gbps, 270 Mbps (automatically selected based on input)
Input: 1 x HD/SD-SDI on BNC
Output: 1 x LC optical fiber
1 x HD/SD-SDI loop-out on BNC
Supported Resolution 625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30; 1080i 23/24/30/50/59.94
Power:Type-C 5V
Power Consumption: 2 W (Max.)
Dimensions (LxWxH): 77x 28x 18 (mm) 3.031.100.71
Weight: 100g
Operating Temperature: -1060

Packages:
1 * SDI-IN Transmitter
1 * SDI-OUT Receiver
2 * Type-C 5V Power Adapter
2 * SFP Module
1 * 1 Mini HD SDI Optical Terminal Users Manual
SDI-OUT: This slot is where you connect the SDI display with sdi cable .
5V DC: Plug the 5V DC power supply into the unit.
SDI-IN: This slot is where you connect the SDI camera with sdi cable .
