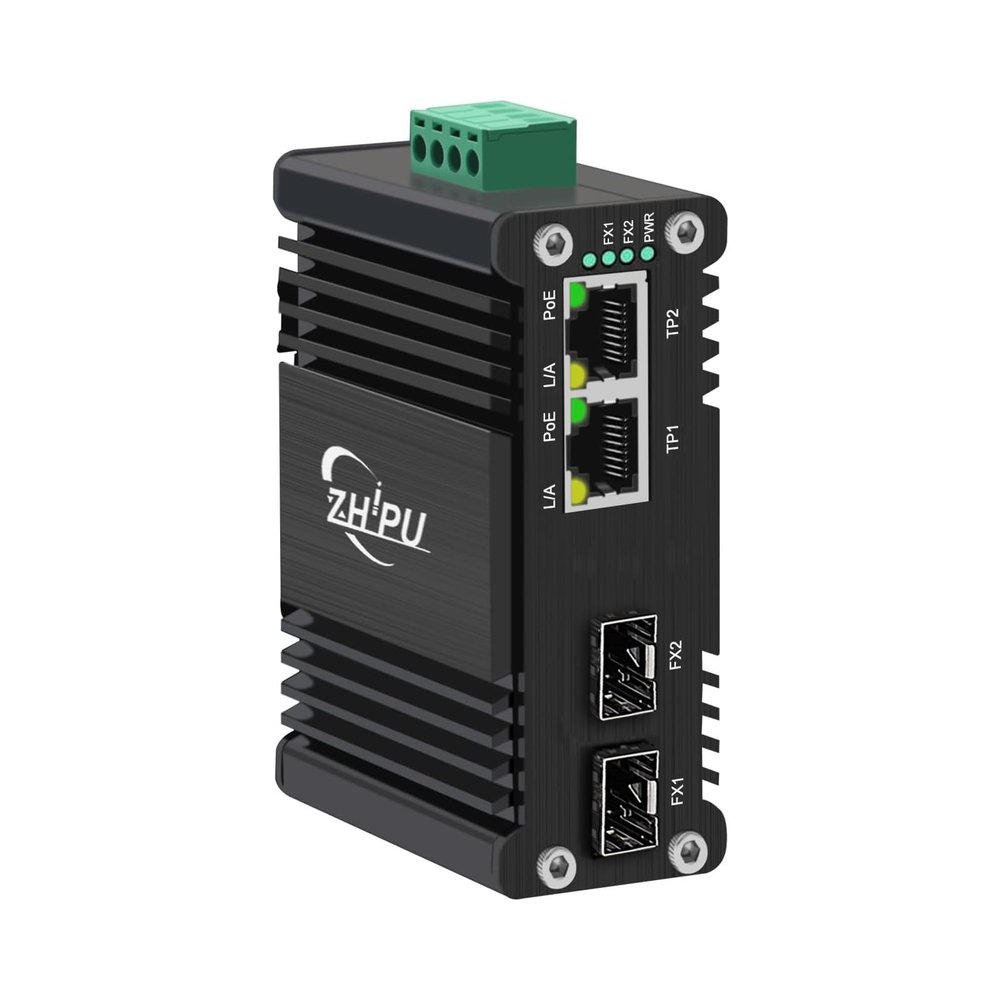

Yjntoximc Mini Industrial 2 Ports Gigabit PoE Switch with DC1248V Redundant Power Input, 12V PoE Switch with 2 SFP, IEEE802.3af/at @60W, Compact PoE Power for VoIP Systems/Solar Power/RV Truck

Description

• Support DC1248V input and IEEE802.3af/at PoE output with built-in voltage booster. All PoE ports are compliant to IEEE802.3af/at. Total PoE budget 60W.
• Providing 2x 10/100/1000Base-T Ethernet PoE ports and 2x 1000Base-X SFP slot (SFP module not included).
• Compact IP40 rugged metal enclosure; Wide working temperature -40C to 80C (-40F to 176F); Support DIN-Rail installation.
• Utilizing hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices.
• Standard PoE supply in solar power system (DC12V/DC18V/DC36V input), RV/Vehicle/Truck/Bus (DC12V input), VoIP/Access control systems (DC24V input).
• Support 2 channel DC1248V redundant power inputs and auto failover, ensure high reliability networking system.

Overview:

The Industrial Gigabit 2-Port PoE Switch has 2 Gigabit SFP port and 2 RJ45 port supports IEEE802.3af/at PoE supply. Each port supports gigabit transfer speeds, ensuring lightning-fast data transmission. With the industrial IP40 Al case, it can thrive in extreme environments between -40F and 176F, making it ideal for outdoor installations or industrial applications.

Features:

1. 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
2. 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
3. Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)
4. Supports Link Fault Pass Through
5. Supports Full/Half-duplex, Auto-negotiation
6. 9K Bytes Jumbo Frame
7. Redundant Power Supply
8. Power booster function with wide range 12~48VDC Power Input
9. Supports DIN-Rail
10. Environmentally hardened -40C to 80C (-40F to 176F) operating temperature
11. Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Specification:

1) Connector: 2xRJ45, 2xSFP
2) Optical Port: 2 x SFP 1000Base-X or 100Base-FX (auto detection)
3) SFP modules: single/multi-mode fiber, 1or 2 core
4) PoE Standard: IEEE802.3af/at
5) Max. Power per Port: 30W Max per port
6) Packet Buffer Memory: 1 Mbit
7) Packet Length: 9K bytes
8) MAC Address Table: 2K
9) Forward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)
10) Input Power: 12~48VDC, 4-pin terminal block
11) Output Power: 48VDC
12) Power PIN Assignment: 4,5(+);7,8(-) (Alternative B Mode)
13) Certification: CE,FCC
14) Mounting Options: DIN-Rail
15) Operating Temperature: -40C to 75C (-40F to 167F)
16) Storage Temperature: -40C to 85C (-40F to 185F)
17) Dimensions (WxDxH): 5.45 x 4.17 x 1.61 inch
18) Weight: 0.25kg

Packages:

1* 2-port PoE Ethernet switch
1* 4-pin terminal block
1* User Manual
