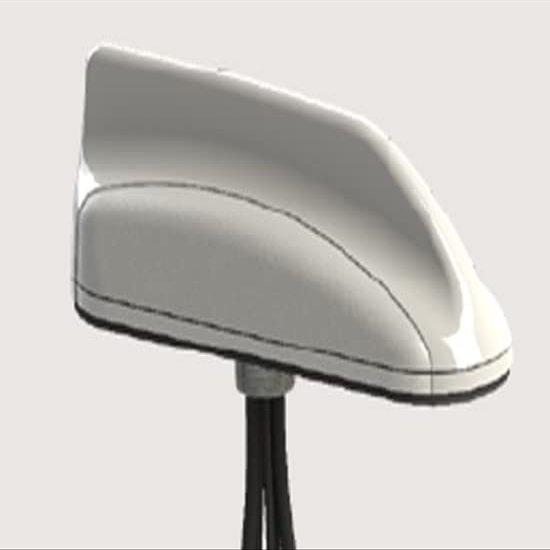

MobileMark 4-in-1 MXFG408 MaxFin Multi-Band 5G 2X Sub-6 LTE, 1X WiFi, GNSS Antenna - SMA - 15ft - White- Thread Mounting

Description

• Cable 1 & 2: 617-960 MHz, 3 dBi & 1710-6000 MHz, 4 dBi // Cable 3 (Wi-Fi): 2.4-2.5 & 4.9-6.0 GHz, 5 dBi // Cable 4 (GNSS): 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
• Standard Connectors SMA Plugs ( Male ) // Cables 1 - 5 LL-195, 15-feet ( 152 cm )
• Mounting Thru Hole, Ground Plane Dependant
• Shock & Vibration IEEE1478, EN 61373, MIL-810G, TIA 329.2-C
• Water Ingress IP67
• MobileMark Part # MXFG408-3C3C3C2C-WHT-180

The 4-cable MXFG408 MaxFin (2x Global 5G LTE, WiFi 6E, GNSS) antennas include two Global 5G LTE antennas, one WiFi 6E antenna, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for Cellular. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz. The MXFG408 MaxFin (2x Global 5G LTE, WiFi 6E, GNSS) elements all fit in this slim tapered radome that measures only 7 1/2 long x 2.25 wide by 2.5 tall (19 cm x 5.7 cm x 6.4 cm).
