Nanopi Smart4418 Dev Kit Cortex-A9 DDR3 Single Board Computer with 1GB RAM + 8GB eMMC onboard WiFi Gbps Ethernet Port for Project Development Support Ubuntu-core Android (with Core Board)

Description

• Smart4418/6818SDK V2 Backplane: Bring out various common interfaces of Smart4418/6818 core board, such as HDMI output, USB Host, MicroSD card slot, RS-233 interface, RS-485 interface, RJ-45 Ethernet port, 3.5mm audio Input and output port, 4G module interface, MicroSIM card slot, etc.
• Smart4418/6818SDK Baseboard: It brings out more interfaces, such as DVP camera, SPI, GPIO, I2C, UART and other common interfaces, onboard AP6212 Wi-Fi Bluetooth module, and has PCB antenna, IPX antenna interface, RTC battery holder.
• Smart4418/6818SDK V2 Backplane: There are RGB LCD interface and LVDS LCD interface on the bottom, which can be directly connected to HD702 LCD screen, HD702V LCD screen, S430 LCD screen, and lead out RGB LCD and LVDS LCD interface pin headers, which is convenient for users to evaluate other LCD displays Screen.
• Smart4418 Dev Kit 2.0: It can use various interfaces easily and quickly, which is very suitable for product development of enterprise users, and for the convenience of users to quickly develop product prototypes
• Wiki: "wiki.friendlyelec.com/wiki/index.php/Smart4418/6818SDK_V2".Any after-sales problems, please contact us by our tech-support click "WayPonDEV" store or leave the message in our forum by "forum. youyeetoo .com/" and ask the question.

-Specification-
CPU: Model: S5P4418;Number of Cores: Cortex-A9 Quad-CoreFrequency: 400MHz-1.4GHz
Memory: RAM:1GB DDR3, up to 800MHz
Storage: eMMC:8GB
Ethernet: Gbps Ethernet, RTL8211E chip;10/100/1000Mbps Ethernet x l
Pin-header: 3 2.0mm pitch double row pin header,174 pins in total
Wi-Fi/Bluetooth: Onboard Wi-Fi Bluetooth module, PCB antenna and IPX Wi-Fi antenna interface
Mini PCIe: Connect to 4G module, only for data communication, no call function, onboard IPX to SMA antenna interface
HDMI: 1x HDMI A Type, support HDMI 1.4a (Smart4418)Support 1080p 30fps video output
USB Host: USB A x 2,USB2.0 - Host x1,OTG x l, MicroUSB x 1
Audio:Mic ln, Headphone Out
Video output/Display:RGB Parallel 1/F(24-bit),LVDS and HDMl 1.4a
Video Input:DVP Camera interface, and MIPI-CSI
Audio lnput:Microphone
ADC:CPU internal ADC, 7 channels,12-bit, range:0~1.8V
External interface:SDIO/MMC*2,SPI*2,12C*3,UART*5,PWM*3,GPIOs*24
LED: 2 x GPIOs to control programmable LEDs
I2C: 2 x I2C0
SPI interface: 2x SPI interface (SPI0, SPI1)
Others: 1xEEPROM, 1x triaxial acceleration sensor,4x2Pin 2.54mm pitch pin header,1xRST, 1xPWRKEY, 4xGND and so on
Working Temperature:-20C to 70;Onboard thermistor
Weight: 460g
Dimension: 185 x 123 x 20 mm
-OS/Software-
FriendlyCore 16.04
Lubuntu 16.04
Android 7.1.2
FriendlyWrt 19.07-snapshot (32-bit)
Kernel version:Linux-4.4-LTSU-boot-2016.01

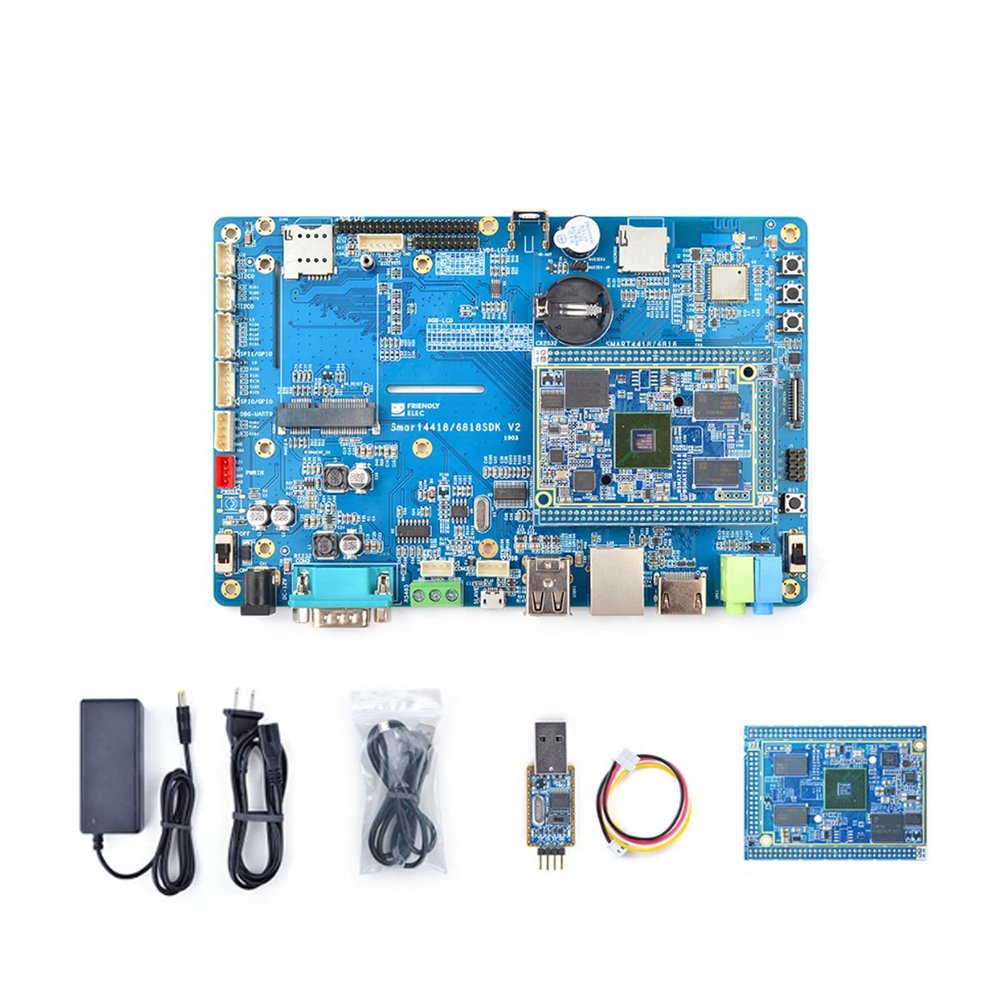

-Package Includes-
Smart4418/6818SDKV2 Carrier Board x 1
Smart4418 CPU Core Board x 1
12V/2A Power Adapter x 1
USB Cable x 1
USB2UART x 1
Dupont Line x 1
-Technical Support- Wiki: "wiki.friendlyelec.com/wiki/index.php/Smart4418/6818SDK_V2". Please click "WayPonDEV" and ask a question or moni
