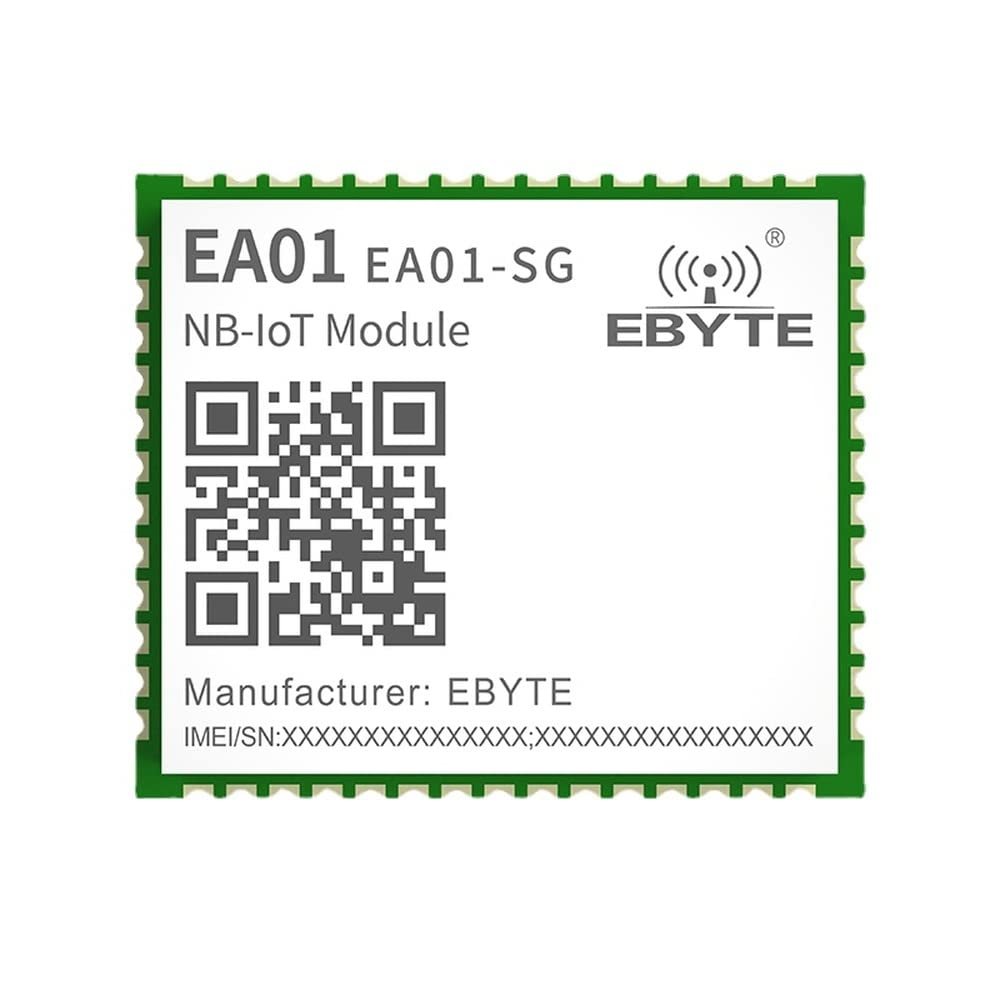

NB IOT Module XY1100 GK9501 Wireless MQTT UDP COAP LwM2M Development Kit B3 B5 B8 EA01-SG BDS GPS Positioning Module

Description

• This NB+GPS/Beidou positioning module module uses XinYi Information Technology's XY1100 and GK9501 chipsolution.This chip is currently the world's first Single Die integratedCMOs PA mass-produced NB-IoT system single chip,which directlyintegrates the commercially available PA on the single Die.It is currentlythe world's most integrated NB-IoT chip.
• The chip integrates a dual-coreprocessor including ARM core and DSP core.The DSP core handles 3GPPprotocol and ARM handles application protocol.It is equipped withdual-core processor of LiteOS operating system to work at thesame time and run fast and stable.It supports different power consumptionmodes?such as deep sleep?normal sleep?standby, and low power. The lowest power consumption can reach 0.7uA.
• Application-Smart lighting;Smart Home; Smart fire protection;Smart meter reading;Smart parking;Smart buildings;Automatic data acquisition;Health sensor;utomobile testing equipment ;Smart robot ; Vehicle positioning and navigation equipment;Wearable devices, such as GPS trackers, etc; UAV positioning, industrial computers, etc.
• GK9501 uses an integrated RF baseband design, integrating DC/DC, LDO, RF front-end, low-power application processor, RAM, Flash storage, RTC and power management. Support BDS/GPS/GLONASS/GALILEO/QZSS/SBAS.

[Transmission Type]?NB-IoT
[Frequency]?B3 B5 B8
[Tx Power]?20dBm2dB
[Size]?18.7*16*2.3mm
[Weight]?1.4g
[Introduction]?This chip is currently the world's first Single Die integratedCMOs PA mass-produced NB-IoT system single chip,which directlyintegrates the commercially available PA on the single Die.It is currentlythe world's most integrated NB-IoT chip.
